5.11 Dimension drawings (dimensions in mm)
SIRIUS Innovations
558 System Manual, 01/2011, A8E56203870002-03
3RB3.2.-..E0 (S0)




D
E
a AC: 93; DC: 103
b AC: 88; DC: 98

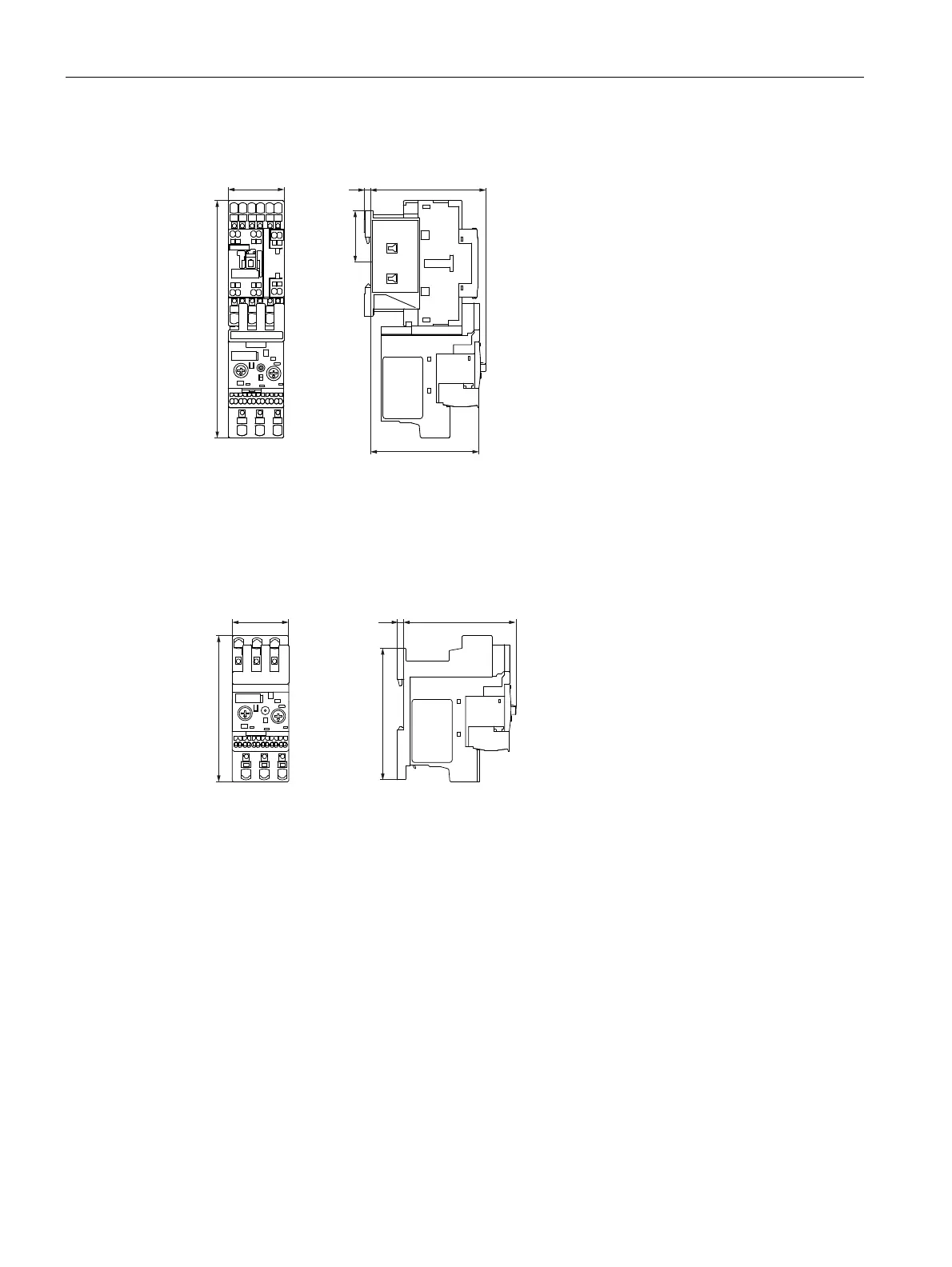

Figure 5-21 3RB3.2.-..E0
3RB3.2.-..E0 and 3RU2926-3AC01 (S0)





Figure 5-22 3RB3.2.-..E0 and 3RU2926-3AC01
