Contactor size S0 alternating current (AC)
S0 contactors with AC operation and spring-loaded connection system need a spacer (d) for
DIN rail or busbar adapter mounting.
Disassembling an S0 load feeder with spring-loaded connection system
D
D
E
Table 6- 16 Disassembling an S0 load feeder with spring-loaded connection system
Step Operating instruction

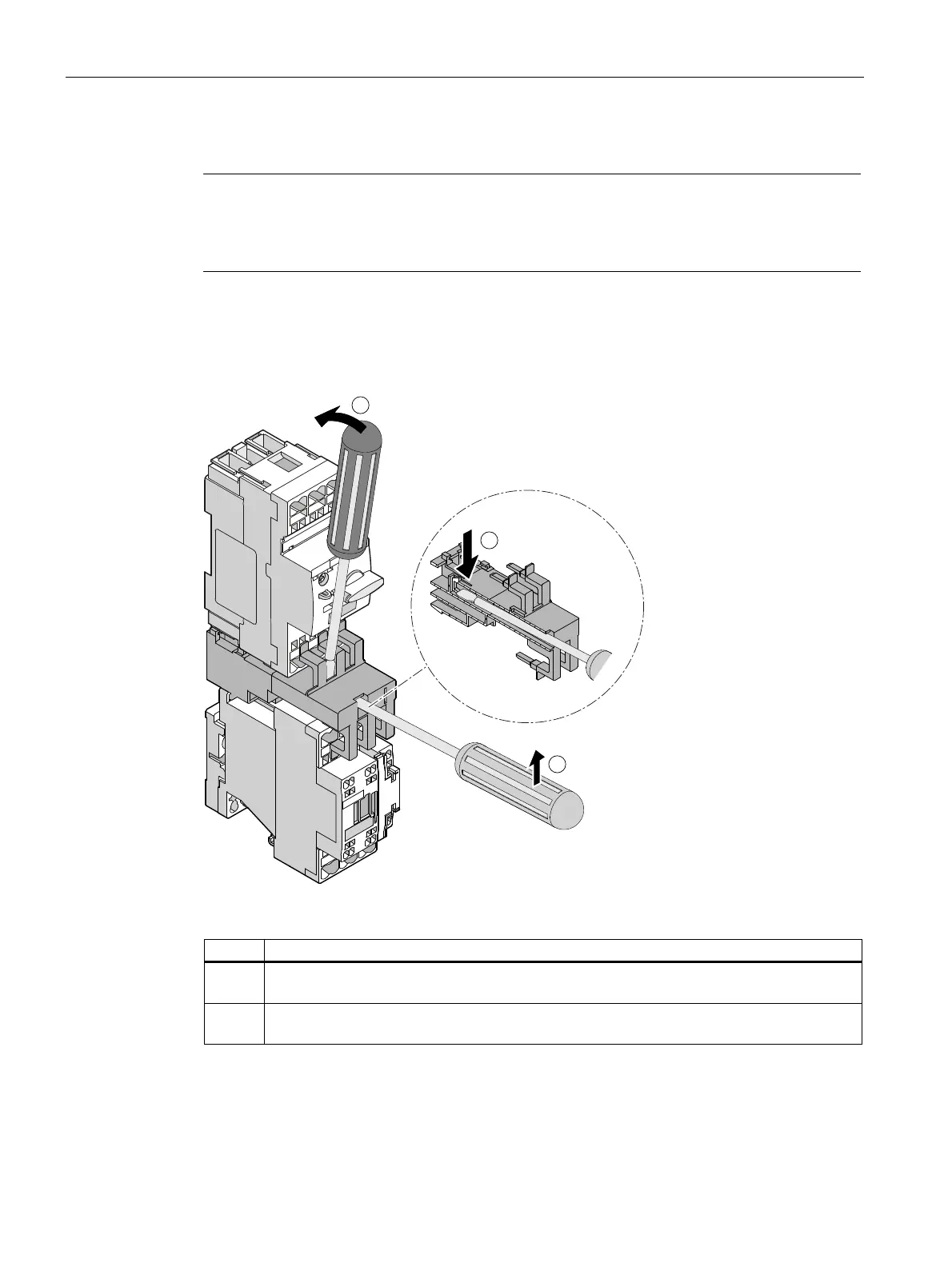

1a Slide the screwdriver into the opening on the link module as shown in the figure and press it
down.
1b Position the screwdriver on the link module as shown in the figure and press it down to
release the spring-loaded terminals.
