SIRIUS 3RA21/22 load feeders
6.6 Mounting
SIRIUS Innovations
System Manual, 01/2011, A8E56203870002-03
595
Types of adapter
The DIN rail adapter is the same for all devices. A pair of adapters is required for mounting a
reversing contactor assembly.

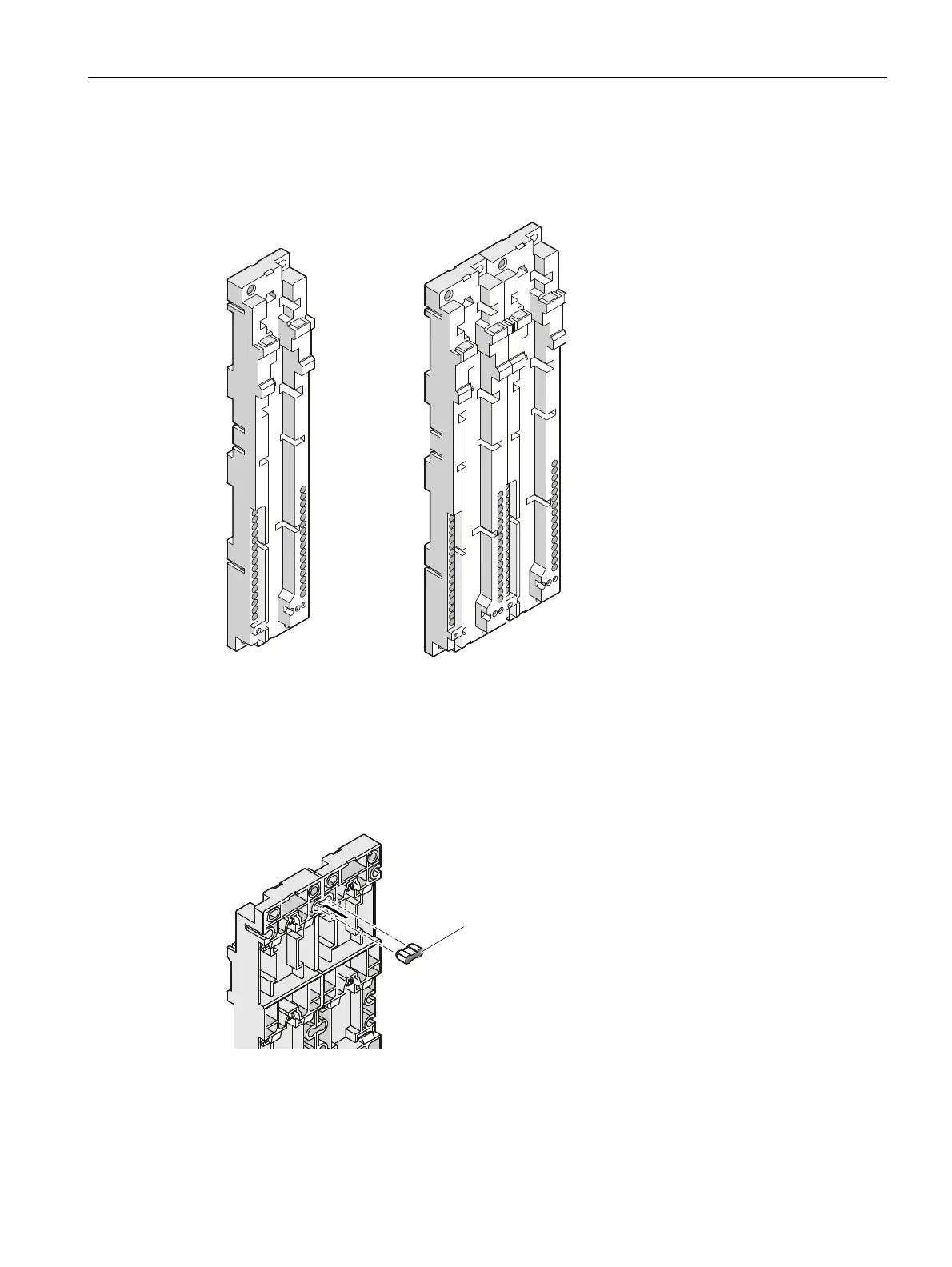

Figure 6-2 DIN rail adapters, individual and as a pair
Connecting the adapters for reversing contactor assemblies
The DIN rail adapters can be connected without the need for tools. Link wedges simply need
to be plugged in on the rear of the adapters.
Two link wedges are required to connect two DIN rail adapters.
[
Figure 6-3 Connecting DIN rail adapters with link wedges
