System overview
1.7 Components and combinations
SIRIUS Innovations
64 System Manual, 01/2011, A8E56203870002-03
Infeed system for 3RA6 compact starter
1 Infeed on left or right using spring-loaded connection system
2 Infeed on left using screw-type connection system
3 Expansion module
4 Expansion plug
5 Terminal block
6 Expansion plug for 3RV19
7 PE infeed
8 PE expansion plug
9 PE tap
10 45 mm adapter for infeed system for 3RA6

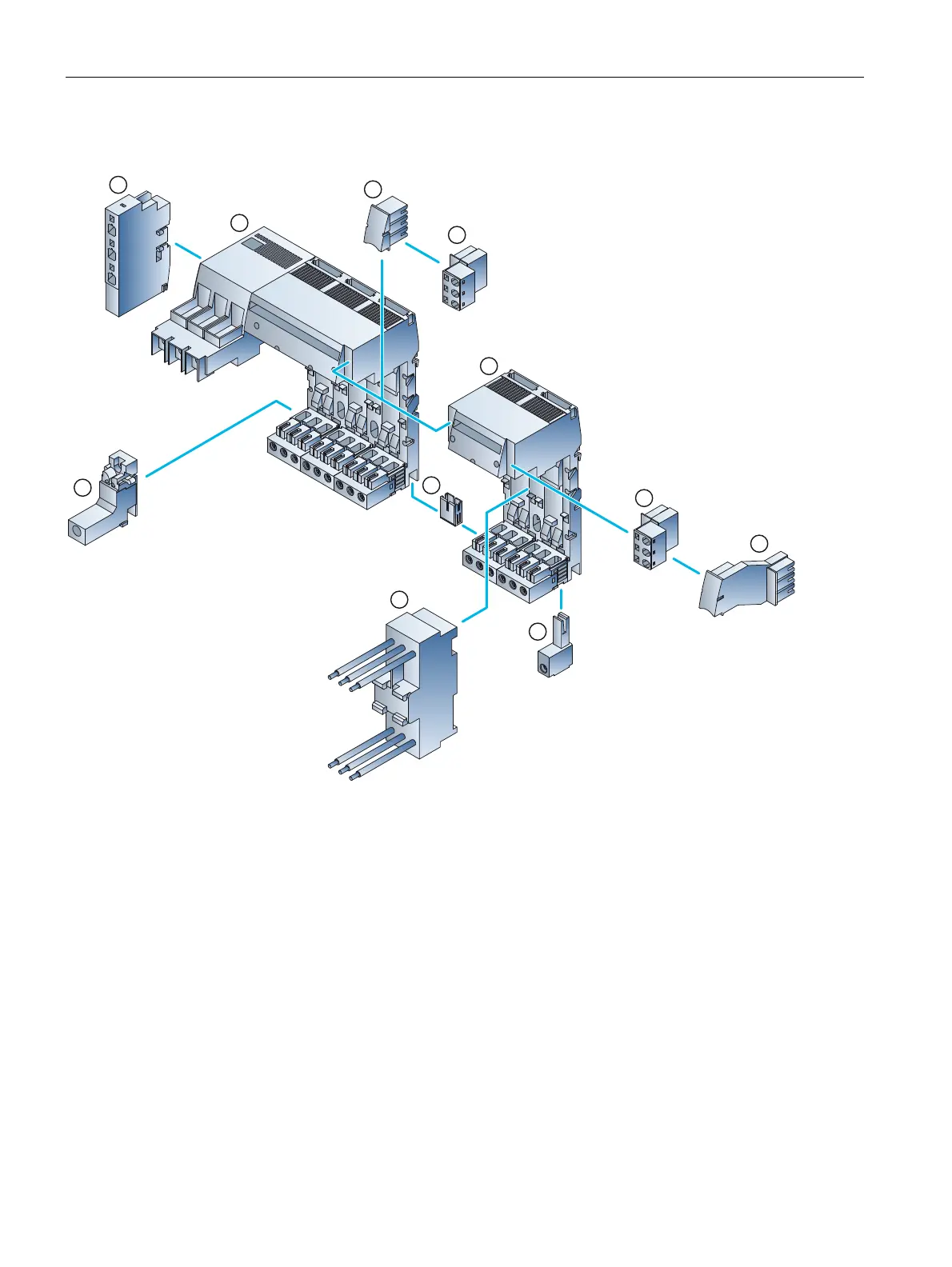

Figure 1-30 Infeed system for 3RA6 compact starter
