System overview
1.9 Connection
SIRIUS Innovations
76 System Manual, 01/2011, A8E56203870002-03
Catalog (LV1) offers a standard screwdriver, which can be used as the operating tool for
opening the spring-loaded connections.
The table below describes the procedure for creating a spring-loaded connection:
DANGER
Hazardous voltage.
Will cause death or serious injury.
Turn off and lock out all power supplying this device before working on this device.

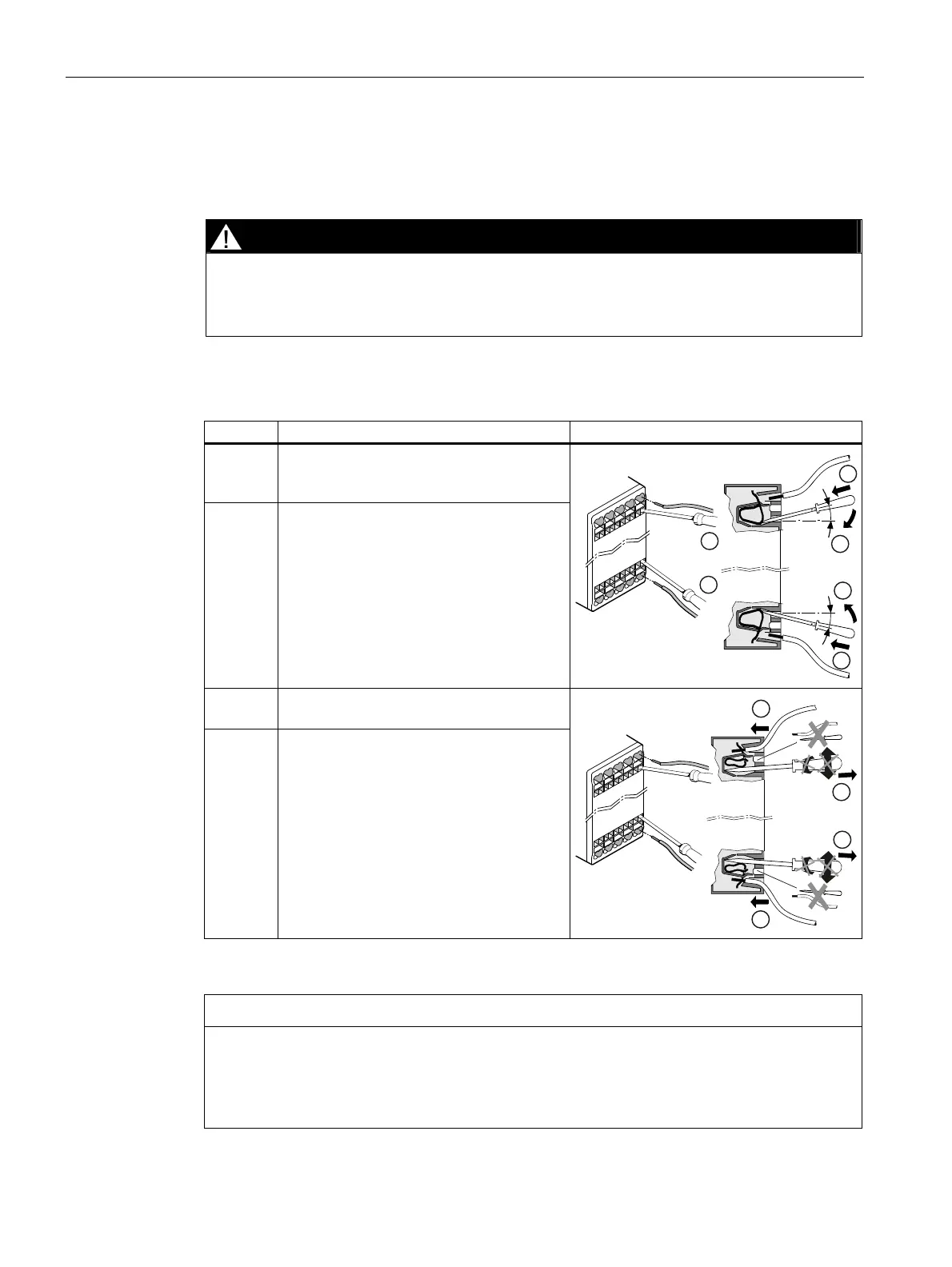

Table 1- 24 Connecting the spring-loaded terminal
Step Operating instruction Image
1 Insert the screwdriver into the bottommost
(A) or topmost (B) operating slot on the
right-hand side.
2 Press the screwdriver down (A) or up (B),
then push it into the operating slot as far as
it will go.
The screwdriver blade keeps the spring-
loaded terminal open automatically.
~10°
~10°

$
%



3 Insert the conductor into the oval
connection slot.
4 Remove the screwdriver. The terminal
closes and the conductor is now securely
clamped.




NOTICE
Damage to the spring-loaded terminal!
If you insert the screwdriver into the central opening on the spring-loaded terminal, this
could damage the terminal.
Do not insert the screwdriver into the central opening on the spring-loaded terminal.
