Mounting
8.6 Mounting the 90 mm devices on a standard mounting rail
3SK1 safety relays
130 Manual, 04/2013, A5E02526190021A/RS-AA/01
8.6 Mounting the 90 mm devices on a standard mounting rail
Requirements
● A horizontal 35-mm wide mounting rail in accordance with DIN EN 60715 has been
properly secured at the installation location.
● Please observe the information about the mounting position in the chapter "General
technical data (Page 193)".
Procedure

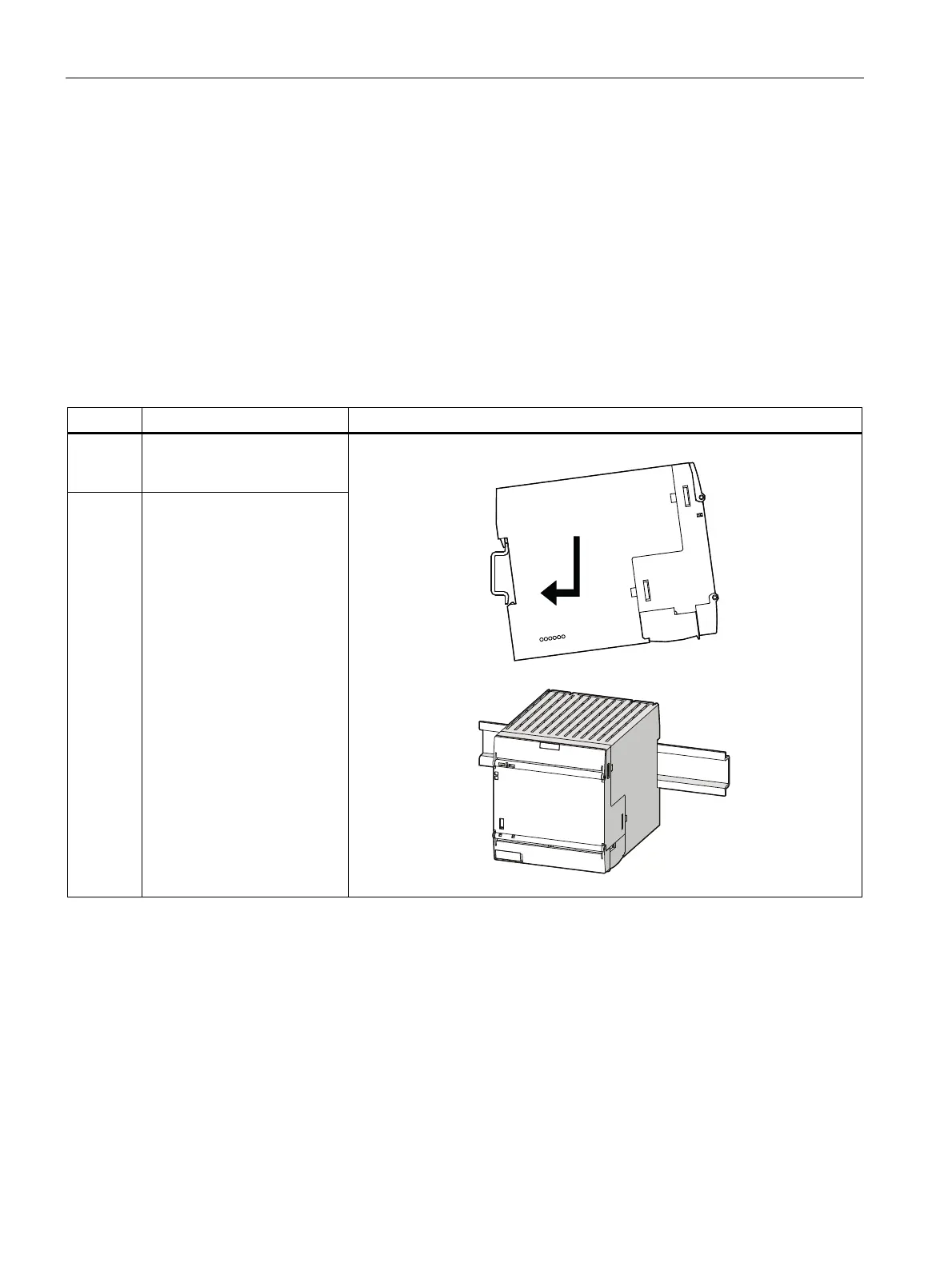

Step Instructions Figure
1 Hang the back of the device
onto the upper edge of the
standard mounting rail
2 Press the lower half of the
device against the rail until the
device engages
