3SK1 devices
5.2 3SK1 Advanced
3SK1 safety relays
58 Manual, 04/2013, A5E02526190021A/RS-AA/01
5.2.5 Functions

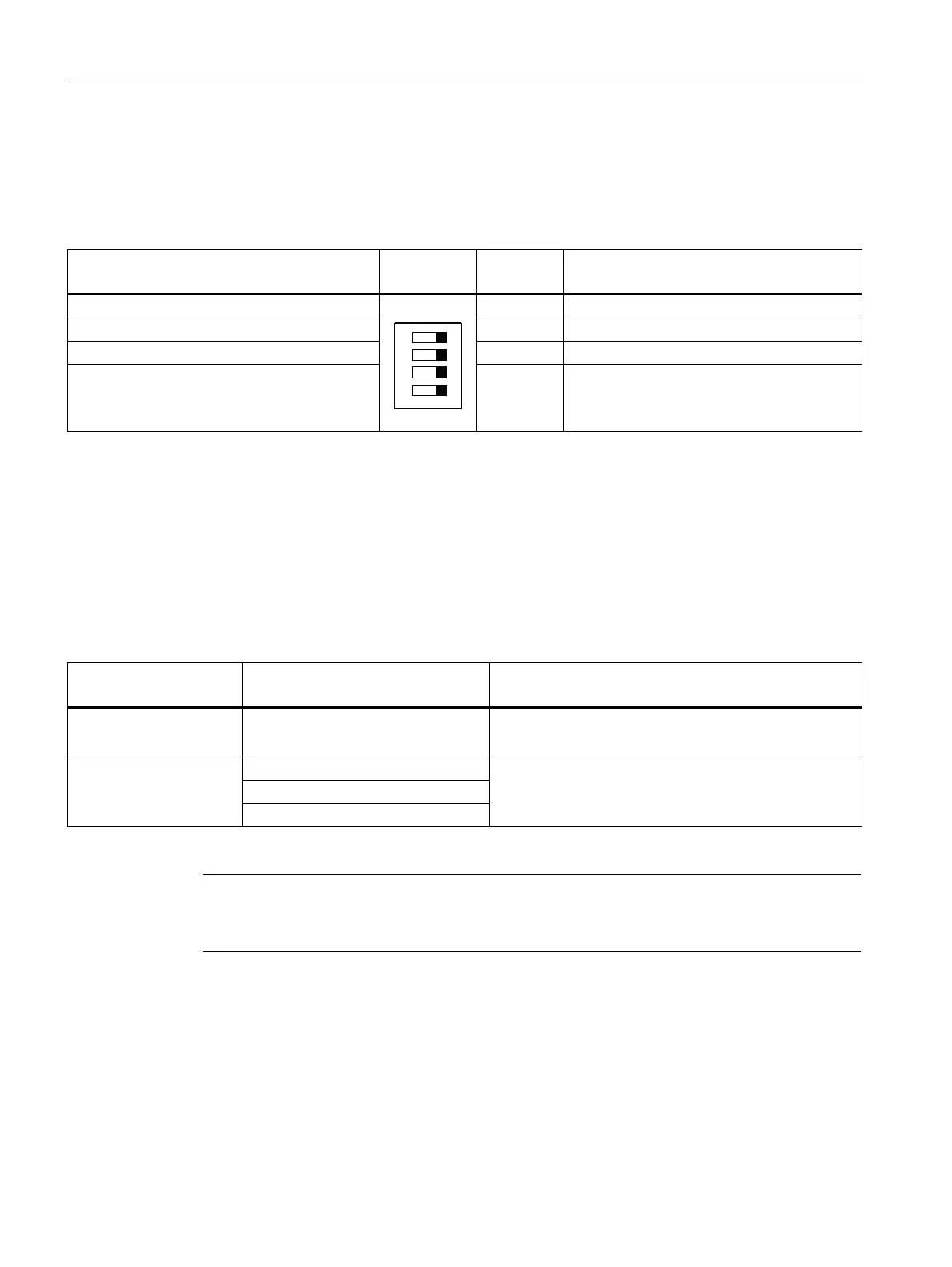

Table 5- 3 DIP switch
Switch position: left Schematic DIP switch
No.
Switch position: right
Autostart 1 Monitored start
Cross-circuit detection deactivated 2 Cross-circuit detection activated
2 x single-channel sensor connection 3 1 x two-channel sensor connection
Start-up test ON
1 2 3 4
4 Start-up test OFF
In the delivery state, all the DIP switches are in switch position: right.
Terminal parameterization:
Jumper on terminals T1/PAR = NO/NC evaluation
Table 5- 4 SET/RESET button
Function of the
SET/RESET button
Status of the indicating LEDs Function
SET "DEVICE" LED flashing yellow
• Press key for about 1 s
The parameterization is loaded
"DEVICE" LED red
"DEVICE" LED flashing green yellow
RESET
"SF" LED red
• Press key for about 1 s
=> The device restarts without the supply voltage
having to be switched off
Note
The SET/RESET pushbutton only triggers a reset for the device on which the button is
pressed.
