8.5 Mounting the 22.5 mm/17.5 mm device on a standard mounting rail
Requirements
● A horizontal 35-mm wide mounting rail in accordance with DIN EN 60715 has been
properly secured at the installation location.
● Please observe the information about the mounting position in the chapter "General
technical data (Page 193)".
Procedure
The figures show 22.5 mm devices. The 17.5 mm devices are mounted correspondingly.

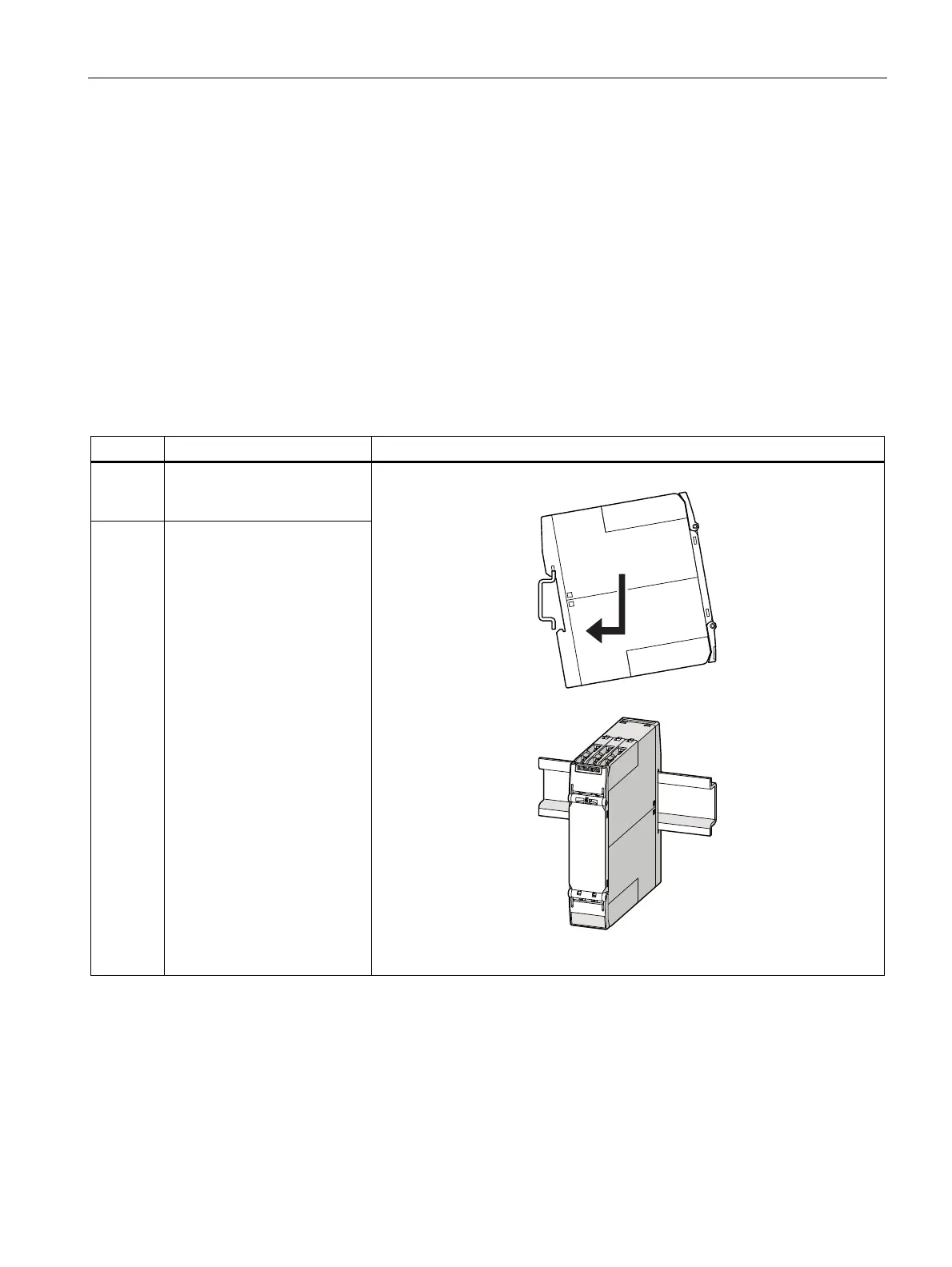

Step Instructions Figure
1 Hang the back of the device
onto the upper edge of the
standard mounting rail
2 Press the lower half of the
device against the rail until the
device engages
