3SK1 safety relays
Manual, 04/2013, A5E02526190021A/RS-AA/01
159
Connection
9
9.1 22.5 mm/17.5 mm devices
9.1.1 Terminal assignment
Location of the connections
The inside faces of the terminal covers are labeled with the designations of the relevant
terminals. The position of the label corresponds to the position of the respective terminal.
$
%
&
$
%
&

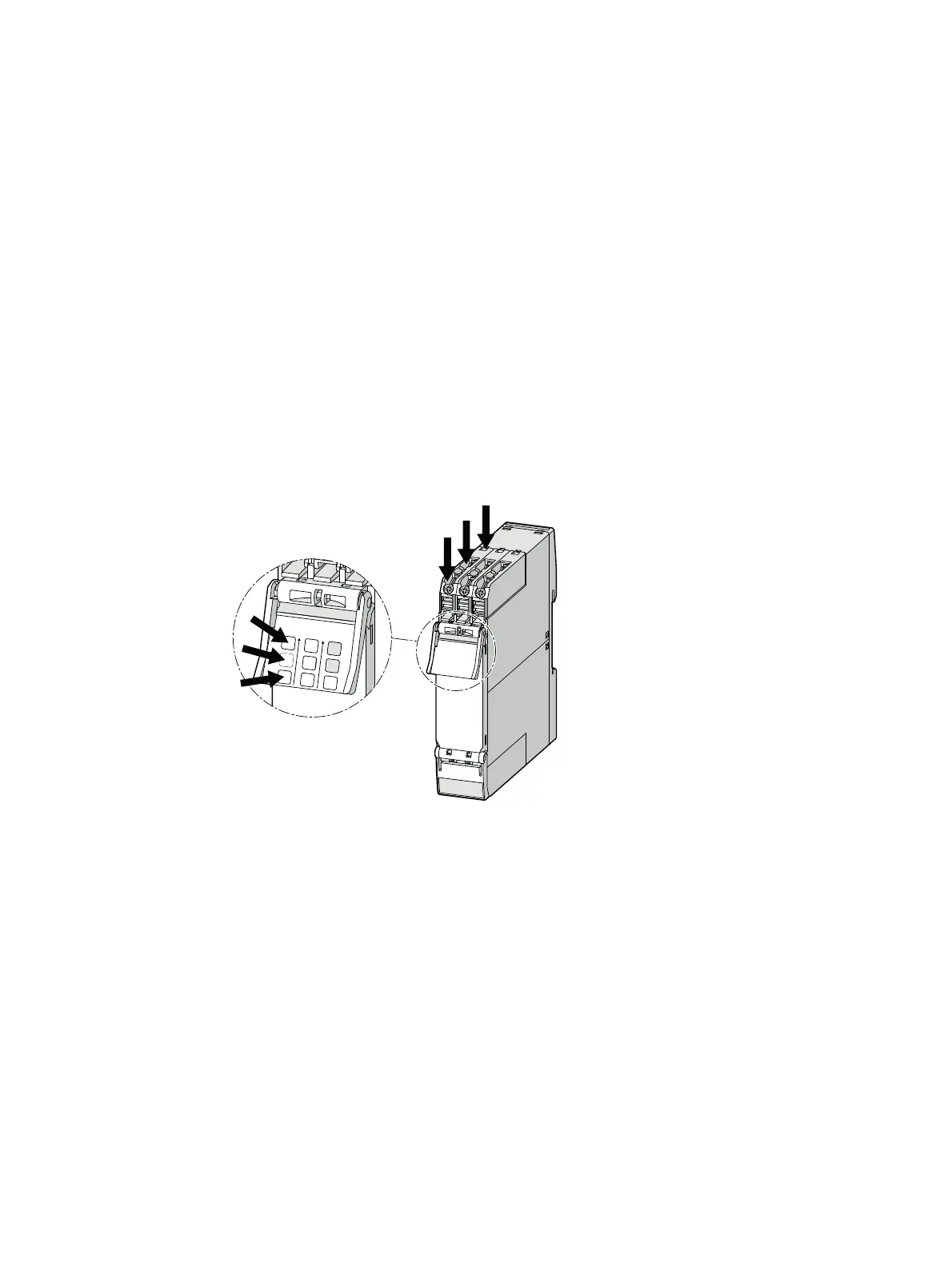

Figure 9-1 Upper terminal cover
