Product overview for 3SK1
3.2 Overview of components and accessory parts
3SK1 safety relays
22 Manual, 04/2013, A5E02526190021A/RS-AA/01

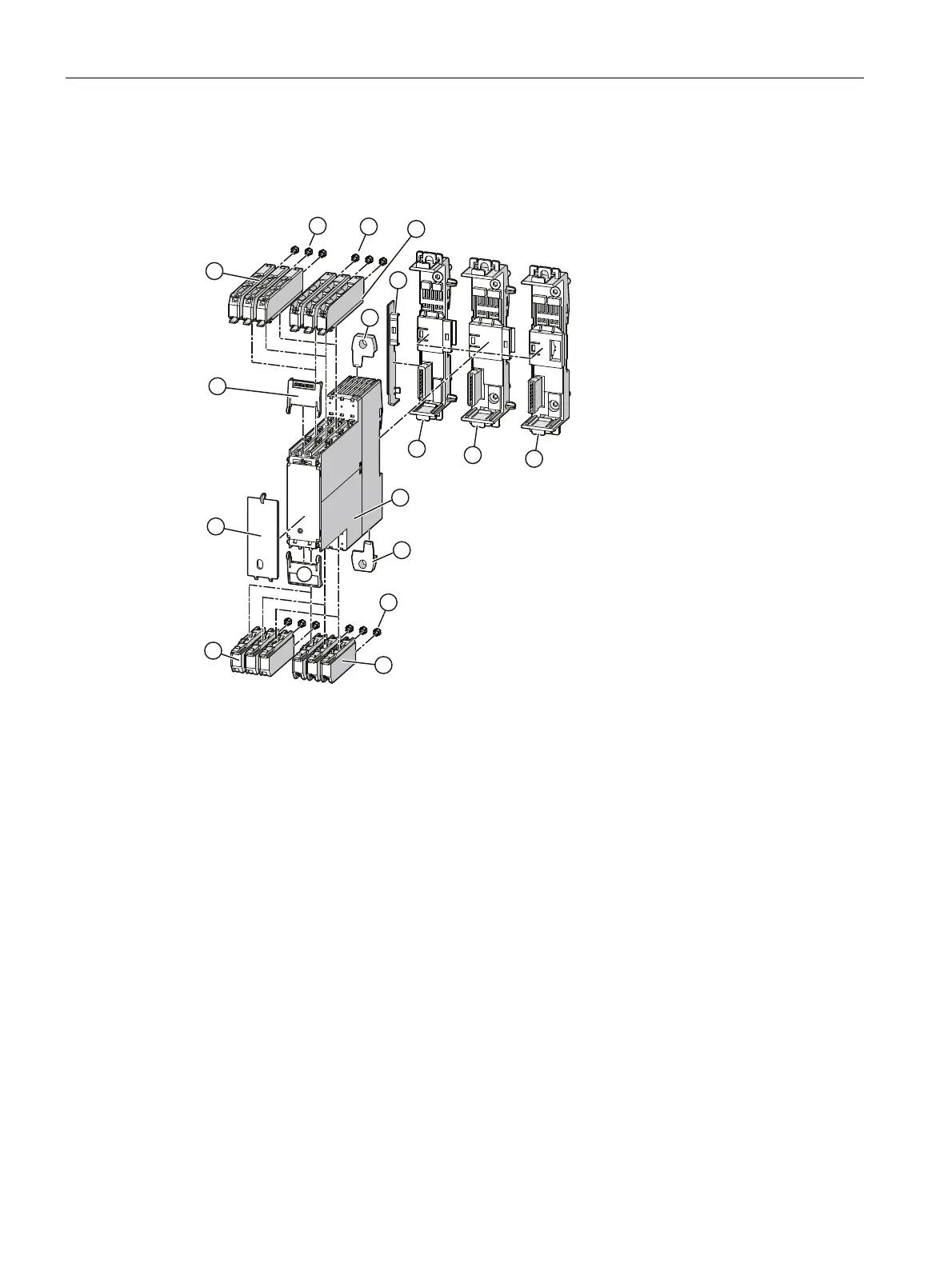

3.2 Overview of components and accessory parts
① 3SK1 safety relay (basic unit/expansion unit)
② Top cover flap
③ Bottom cover flap
④ Terminals, 3-pole, push-in, 1 x 2.5 mm²
⑤ Terminals, 3-pole, screw-type, 1 x 2.5 mm²
⑥ Terminals, 2-pole, push-in, 1 x 2.5 mm²
⑦ Terminals, 2-pole, screw-type, 1 x 2.5 mm²
⑧ Coding pins
⑨ Push-in lugs for wall mounting
⑩ Cover
⑪ Device connector, type 1, 17.5 mm
⑫ Device connector, type 1, 22.5 mm
⑬ Device termination connector, type 1, 22.5 mm
⑭ Sealable cover
