Mounting
8.10 Mounting 90 mm devices with device connectors on a standard mounting rail
3SK1 safety relays
Manual, 04/2013, A5E02526190021A/RS-AA/01
139

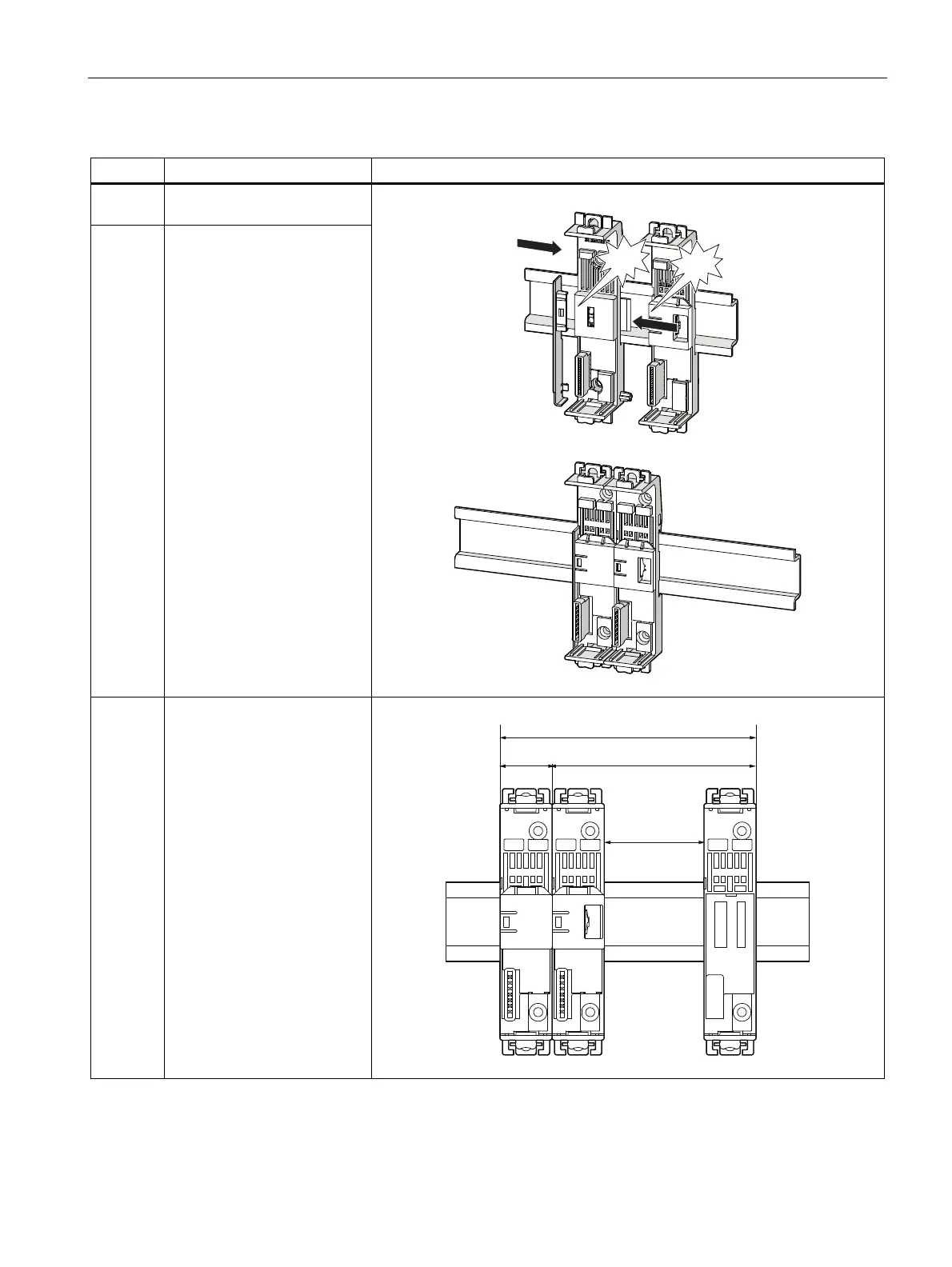

Step Instructions Figure
4 Push the device connectors
together until they engage.
5 Mount the cover on the left of
the first device connector
piece and the device
connectors supplied in the set
for enclosures of 45 mm
upwards (right-hand side)
click
click
6 Note the clearances required
for the 90 mm devices
90
112,5
45
22,5
