Mounting
8.12 Mounting 22.5 mm/17.5 mm devices with device connectors on the wall
3SK1 safety relays
Manual, 04/2013, A5E02526190021A/RS-AA/01
145
Procedure for mounting on a level surface
The figures show 22.5 mm devices. The 17.5 mm devices are mounted correspondingly.

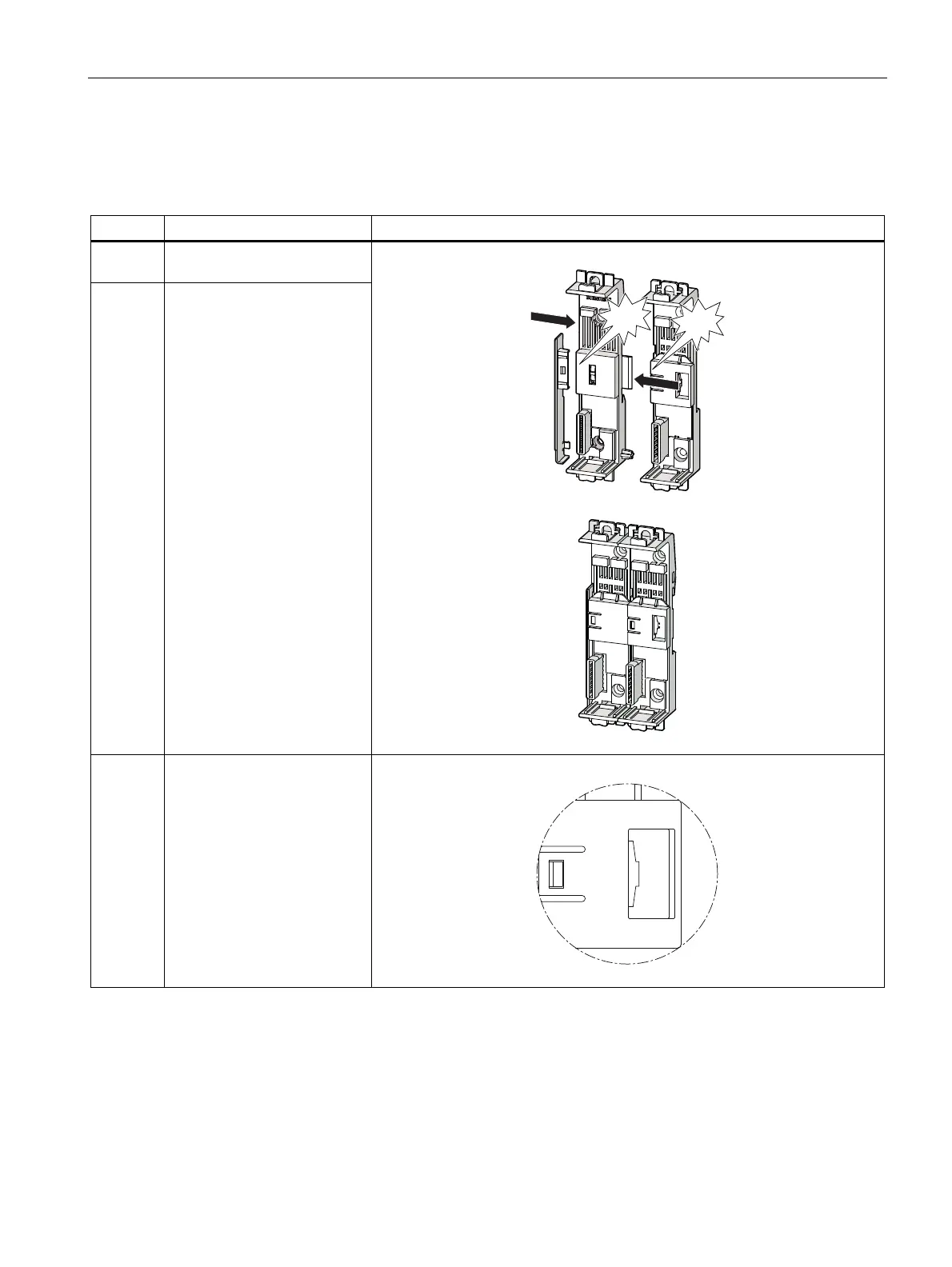

Step Instructions Figure
1 Push the device connectors
together until they engage
2 Mount the cover on the left of
the first device connector. The
cover is included in the scope
of supply of the device
termination connector
click
click
3 Set the slide switches in the
device termination connector
(Type 1) to the following
positions
• Below 3SK1 basic unit:
position 2 (bottom; i.e.
open)
• Below output expansion
3SK1211
position 1 (top; i.e. closed)
