Mounting
8.14 Mounting 90 mm devices with device connectors on the wall
3SK1 safety relays
152 Manual, 04/2013, A5E02526190021A/RS-AA/01

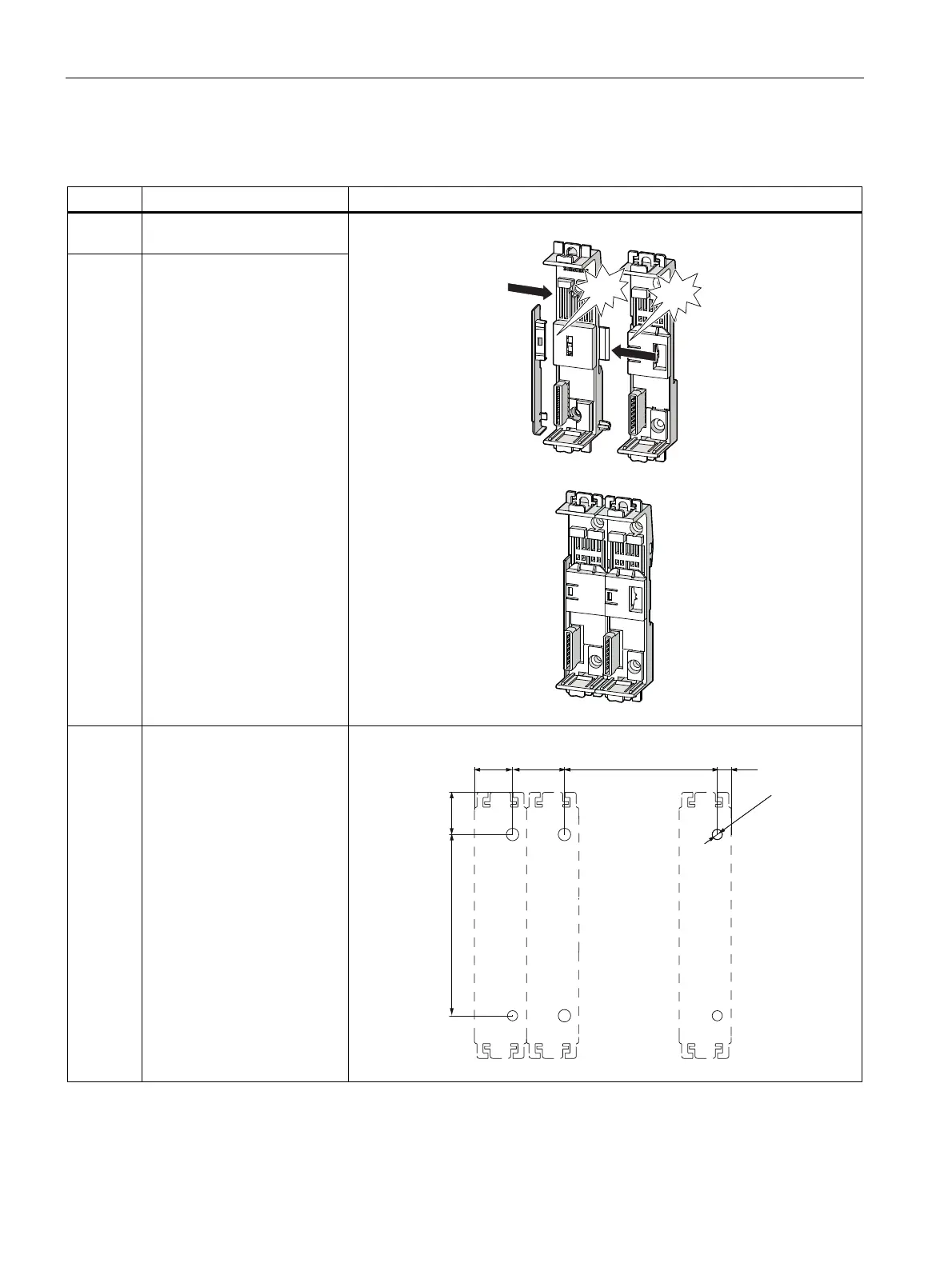

Procedure
Step Instructions Figure
1 Push the device connectors
together until they engage
2 Mount the cover on the left of
the first device connector
click
click
3 Note the clearances required
for the 90 mm devices
Mount the device connector
supplied in the set for
enclosures of 45 mm upwards
(right-hand side)
Tightening torques:
• Top: < 0.1 Nm
• Bottom: 1 Nm
ෘ
