Siemens SIRIUS 3SK1

3SK1 devices
5.1 3SK1 standard
3SK1 safety relays
48 Manual, 04/2013, A5E02526190021A/RS-AA/01

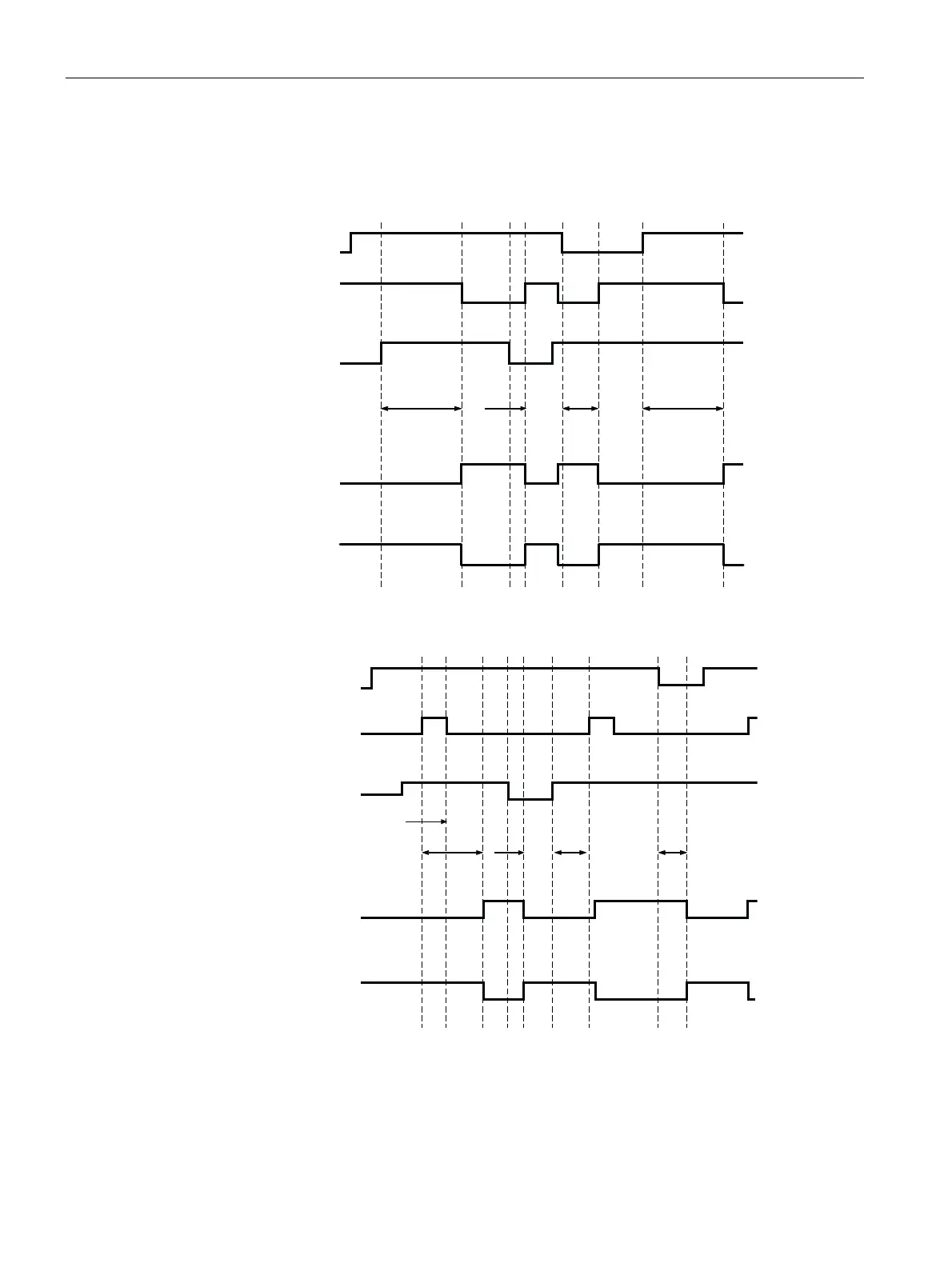

State diagrams 3SK1111
INF (feedback)
Inputs
IN1/IN2
(sensor circuit)
Enabling
circuit
Signaling
circuit
Outputs
3SK1111-x AB3 0 autostar t
200 ms 8 ms 90 ms65 ms
A1/A 2
3SK1111-x AB3 0 monitored st ar t
IN1/IN2
(sensor circuit)
Inputs
INF/S
(feedbck)
Enabling
circuit
Signaling
circuit
Outputs
8 ms 150 ms
15 ms
65 ms
A1/A 2
20 ms
