Installation
2.4 Connecting the Video Source

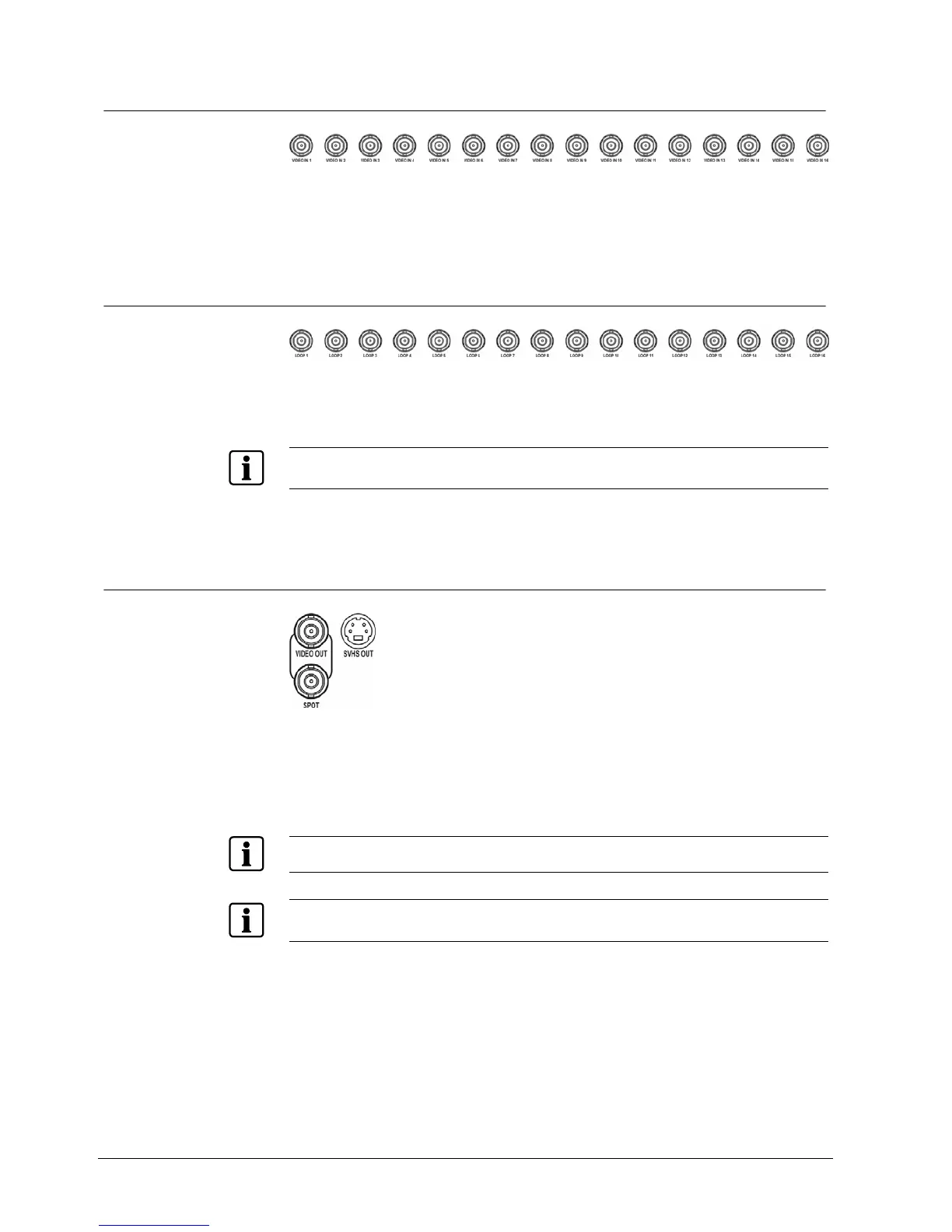

Fig. 4 Video input connectors.
Connect the coaxial cables from the video sources to the BNC Video In
connectors.
2.5 Connecting the Loop Through Video
Fig. 5 Video Loop Through connectors.
If you would like to connect your video source to another device, you can use the
Loop BNC connectors.
NOTE:
The Loop BNC connectors are auto terminated. Do NOT connect a cable to the Loop BNC unless it is
connected to another terminated device because it will cause poor quality video.
2.6 Connecting the Monitor
Fig. 6 Video Out connectors.
Connect the monitor to either the Video Out or SVHS Out connector.
Connect the spot monitor to the SPOT connector if required.
NOTE:
If your monitor has an SVHS input, use it for better quality video display.
NOTE:
The Video Out (BNC) and the SVHS Out connectors may be connected to individual monitors for
simultaneous operation.
14
Siemens Building Technologies SISTORE AX9 AX16_EN.doc
Fire & Security Products 09.2004
