Configuration
NOTE:
The Holiday (H) schedule applies to the dates you established as holidays when setting Date/Time.
You can save your changes by highlighting OK and pressing the
button
.
Selecting Cancel exits the screen without saving the changes.
3.7.4 Pre-Event Recording Setup Screen

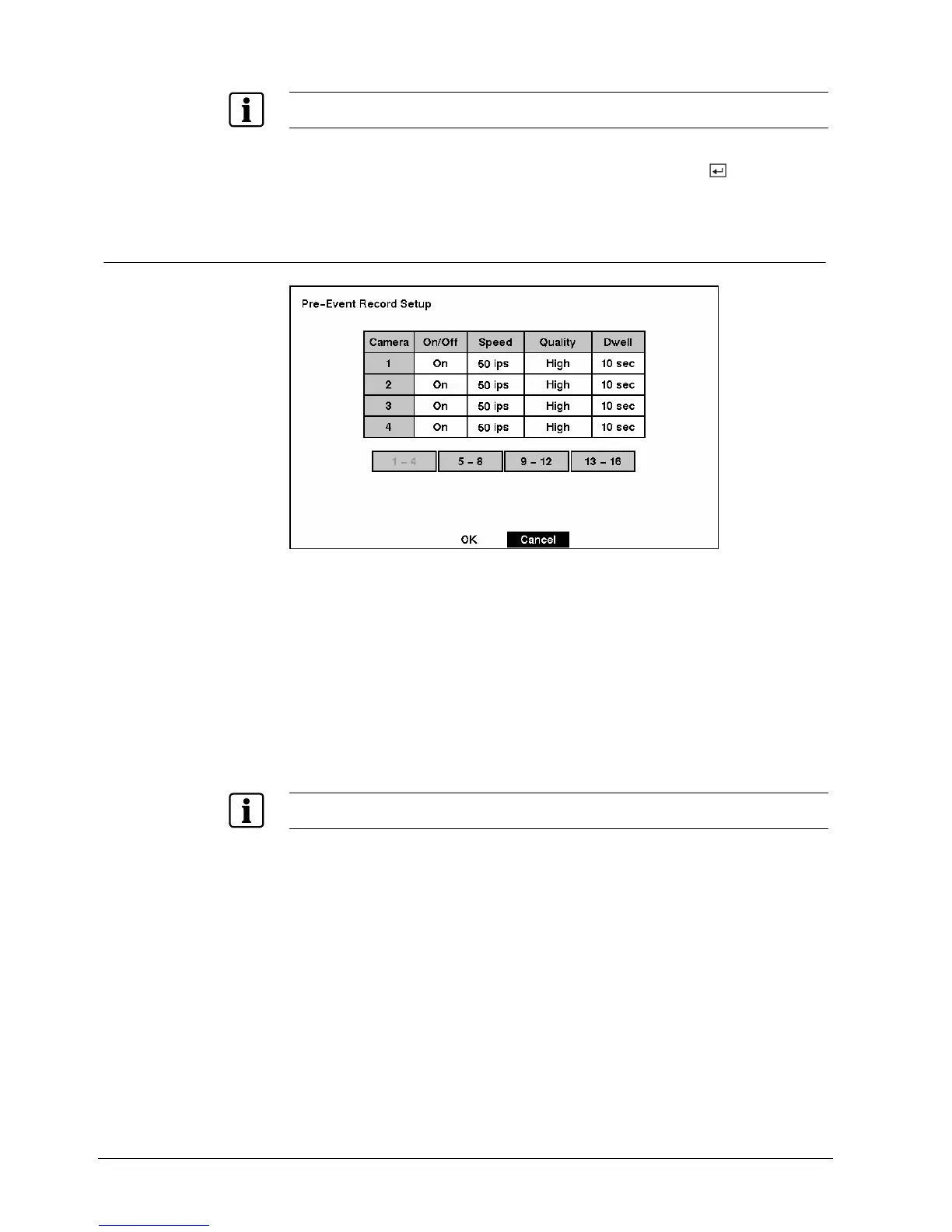

Fig. 47 Pre-Event Record Setup screen.
When the DVR is in the Event Record mode it is possible to have it record images
before the event occurs. The Pre-Event Record screen allows you to define how to
handle pre-event recording.
You can turn individual cameras On or Off for pre-event recording. The image
speed can be set from 0.1 to 50 ips (60 ips NTSC), and image quality can be
selectable from High, Standard and Low.
You can set the amount of time to record prior to the event by adjusting the Dwell.
You can set the Dwell from 1 to 300 seconds.
NOTE: When the DVR is in the Time-Lapse mode, it ignores the pre-event settings and follows the
time-lapse settings.
46
Siemens Building Technologies SISTORE AX9 AX16_EN.doc
Fire & Security Products 09.2004
