Appendix D — Connector Pin Outs
8 Appendix D — Connector Pin Outs

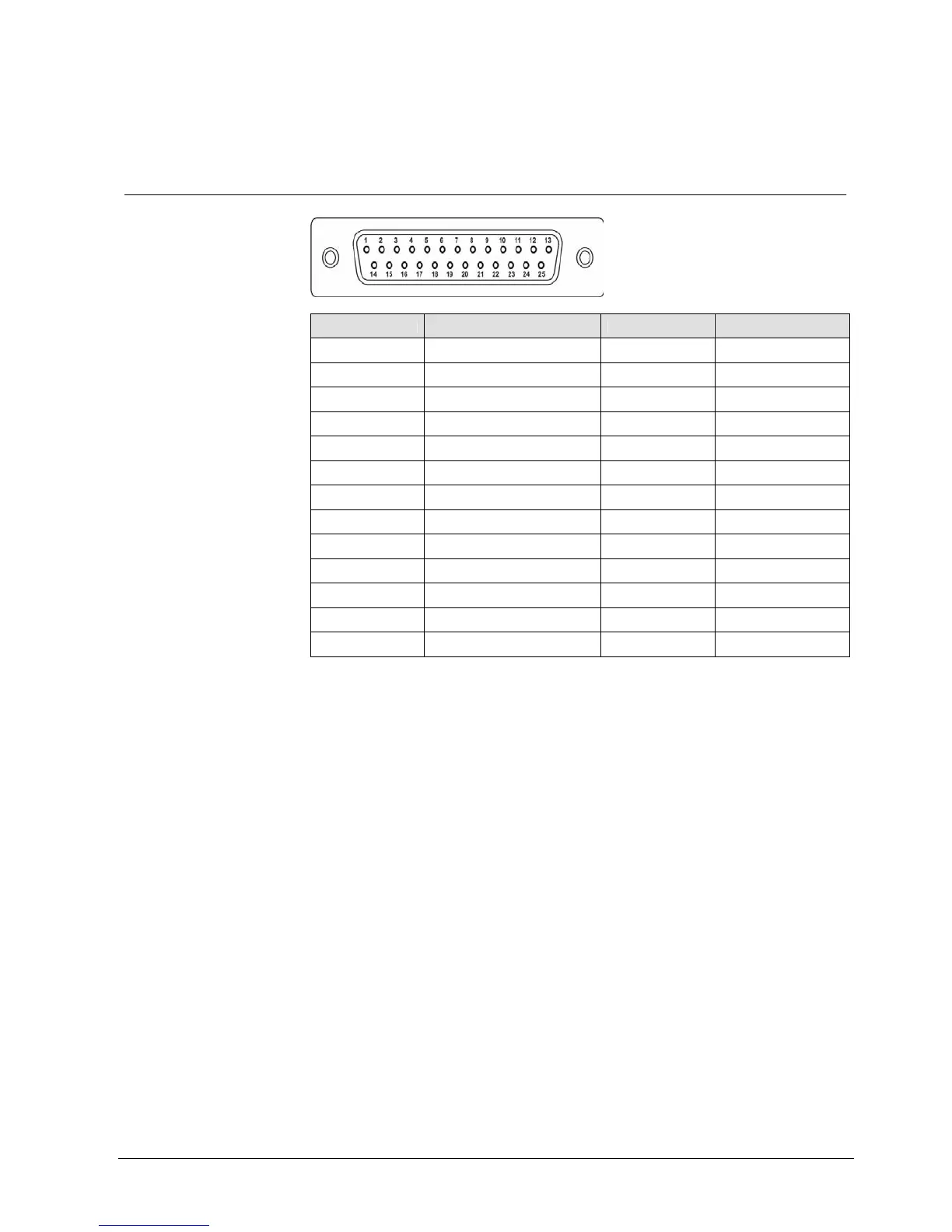

8.1 Alarm I/O Connector and RS485 Connector Pin Outs
Pin Number Pin Assignment Pin Number Pin Assignment
1 RS485 RX-/TX- 14 RS485 RX+/TX+
2 Alarm Output 3 15 Alarm Output 2
3 Alarm Output 1 16 Alarm Output 4
4 Alarm Reset 17 Ground
5 Alarm Input 16 18 Alarm Input 15
6 Alarm Input 14 19 Alarm Input 13
7 Alarm Input 12 20 Alarm Input 11
8 Alarm Input 10 21 Alarm Input 9
9 Ground 22 Alarm Input 8
10 Alarm Input 7 23 Alarm Input 6
11 Alarm Input 5 24 Alarm Input 4
12 Alarm Input 3 25 Alarm Input 2
13 Alarm Input 1
83
Siemens Building Technologies SISTORE AX9 AX16_EN.doc
Fire & Security Products 09.2004
