Configuration
3.6.4 Alarm Out Setup Screen
The Alarm Out setup screen allows you to establish a schedule for each alarm
output from the DVR.

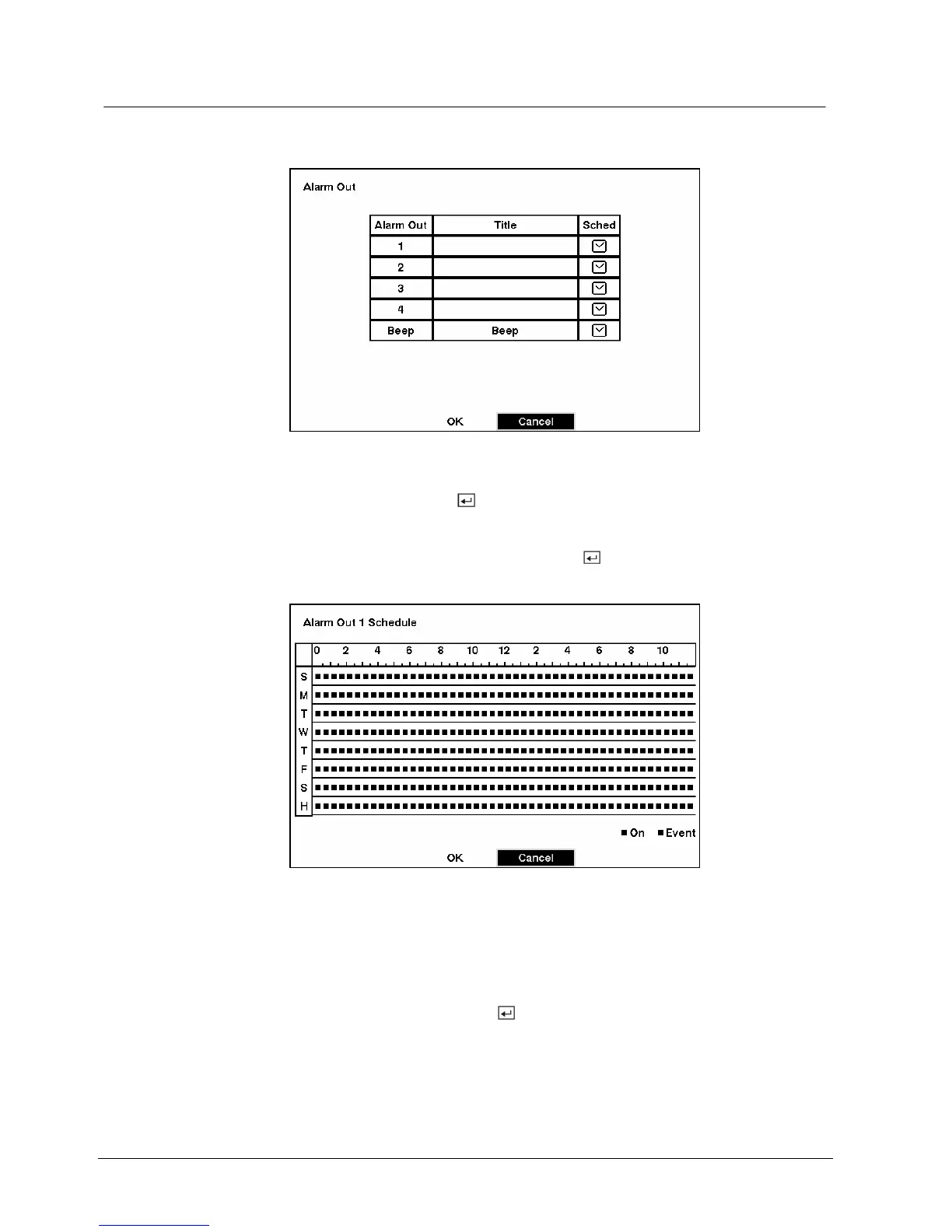

Fig. 40 Alarm Out setup screen.
Each alarm output can be given its own title by highlighting the box under the Title
heading and pressing the
button. A virtual keyboard appears allowing you to
enter the title.
Highlighting the Sched field and pressing the
button opens a schedule screen.
You can schedule alarm output in 30-minute increments from 0:00 to 24:00.
Fig. 41 Alarm Out Schedule screen.
You can select individual blocks of time, entire days of the week, entire blocks of
time or the entire schedule. Select a specific block of time by highlighting it. Select
an entire day by highlighting the day of the week or Holiday on the left of the
screen. Select an entire block of time by highlighting the time at the top of the
screen. Select the entire screen by highlighting the empty box in the upper left
corner of the screen. Press the
button from No Arming (no block) to On (blue
block) to Event (yellow block).
When set to On, the Alarm Out is active during the scheduled time. When set to
Event, the Alarm Out is only active when there is an Event during the scheduled
time.
40
Siemens Building Technologies SISTORE AX9 AX16_EN.doc
Fire & Security Products 09.2004
