Appendix E — Connection Diagram

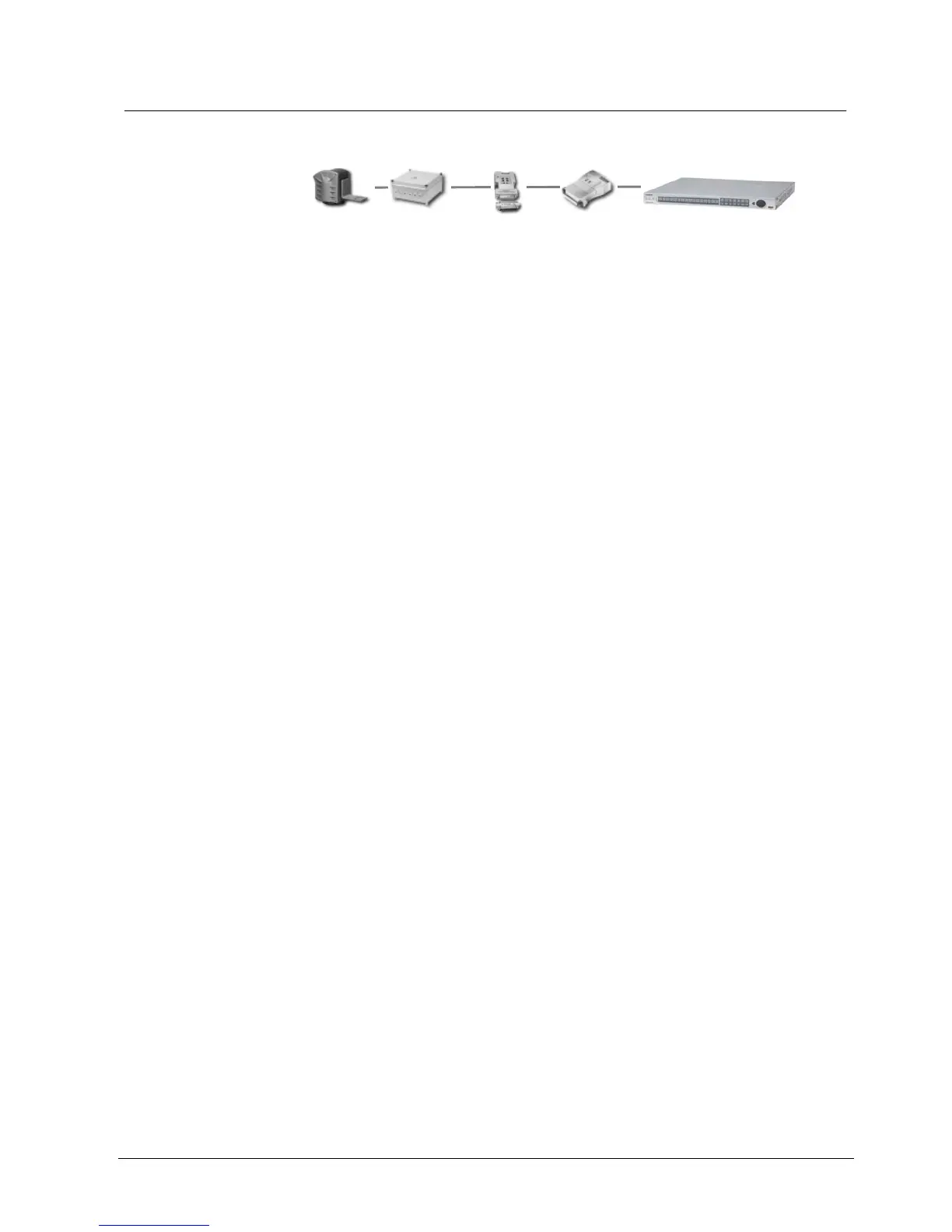

9.3 Sample III. Connecting the SISTORE AX and SCU
RS485
RS232-RS485
Converter
RS232-Current
Loop Converter
AXAX9/AX16
TTY
CDC0402PT40P
Configuration of SISTORE AX:
z In the RS232/RS485 menu:
RS485: Baud Rate: 2400
Parity: Even
Data: 8
Stop: 1
Usage: PTZ Control
z In the „Camera“ menu:
Camera setting:
PTZ Device: Siemens SCU
ID: 1
Configuration of the Roline RS232<->RS485 Converter:
z T-RTS
Rx ON
z DTE (or DCE; must not be identical with the other converter)
Configuration of the RS232<->Current Loop Converter:
z 20 (mA)
z Rx ACT (Active)
z Tx ACT (Active)
z DCE (or DTE; must not be identical with the other converter)
(If the two converters are connected using a cross-over cable,
either DCE or DTE must be set on both converters.)
85
Siemens Building Technologies SISTORE AX9 AX16_EN.doc
Fire & Security Products 09.2004
