Configuration
z Highlight the Sched box and press the button. A schedule screen appears.
Set the schedule as described earlier.
z Highlight the Camera box and press the button. A camera selection screen
appears. Select the camera number you would like to associate with the camera
that has lost video.
NOTE:
You can associate multiple cameras with a camera.
z Highlight the Speed box and select number of images per second you would like
to record from the drop-down menu.
z Highlight the Quality box and select the image quality you want to record from
the drop-down menu.
z Highlight the Dwell box and set the length of time you would like to record for the
associated video loss.
3.8.8 Video Loss Event Action (Alarm Out) Setup Screen
The DVR can be set to react to video loss differently by activating an internal
buzzer or external alarms.

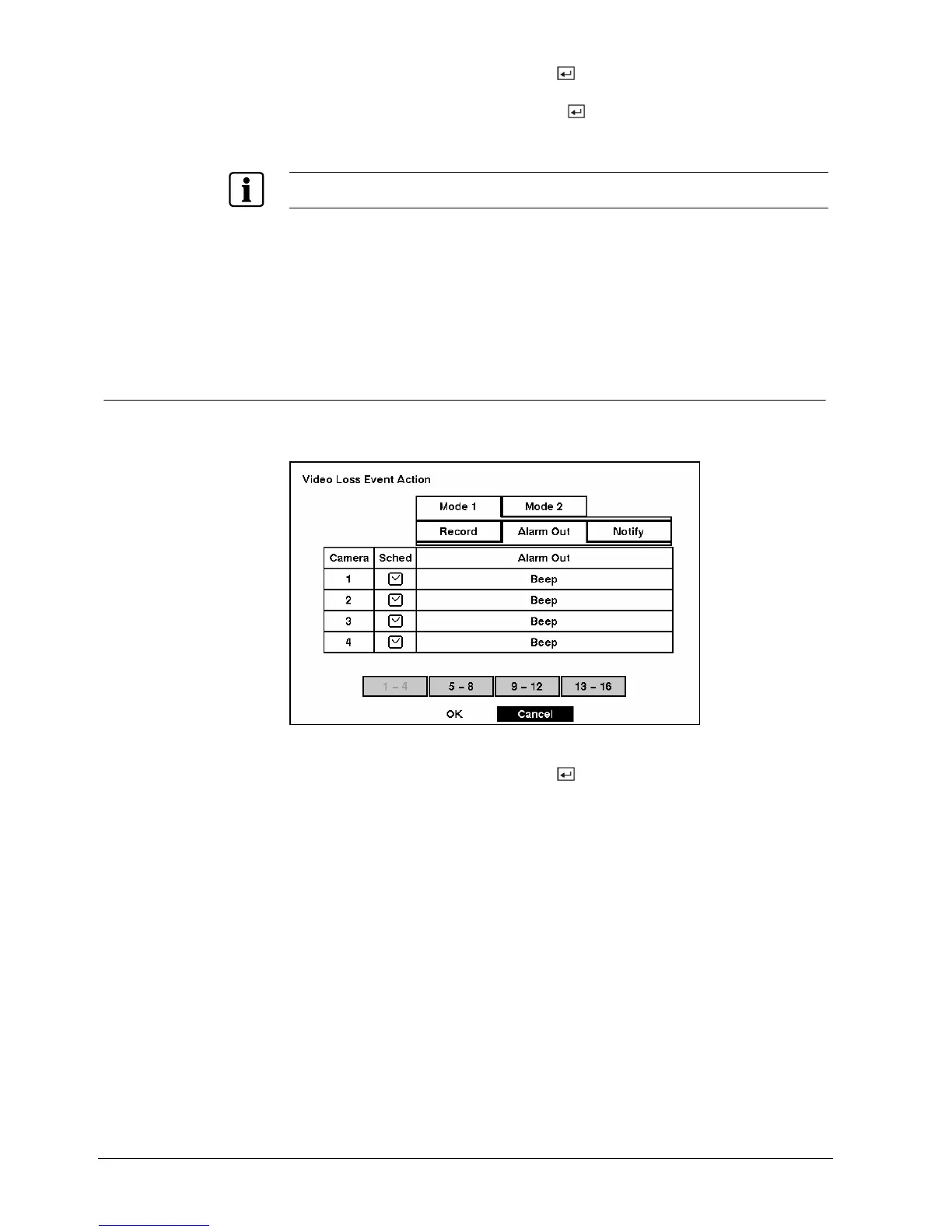

Fig. 55 Video Loss Event Action (Alarm Out) setup screen.
z Highlight the Sched box and press the button. A schedule screen appears.
Set the schedule as described earlier.
z Highlight the Alarm-Out box and select either Beep or the alarm output terminal
that you want to associate with the camera that has lost video.
52
Siemens Building Technologies SISTORE AX9 AX16_EN.doc
Fire & Security Products 09.2004
