Configuration
3.9.2 Main Monitoring Setup Screen
You can adjust the display dwell time for each camera displayed on the main
monitor. You can also turn camera sequence and event monitoring on and off.

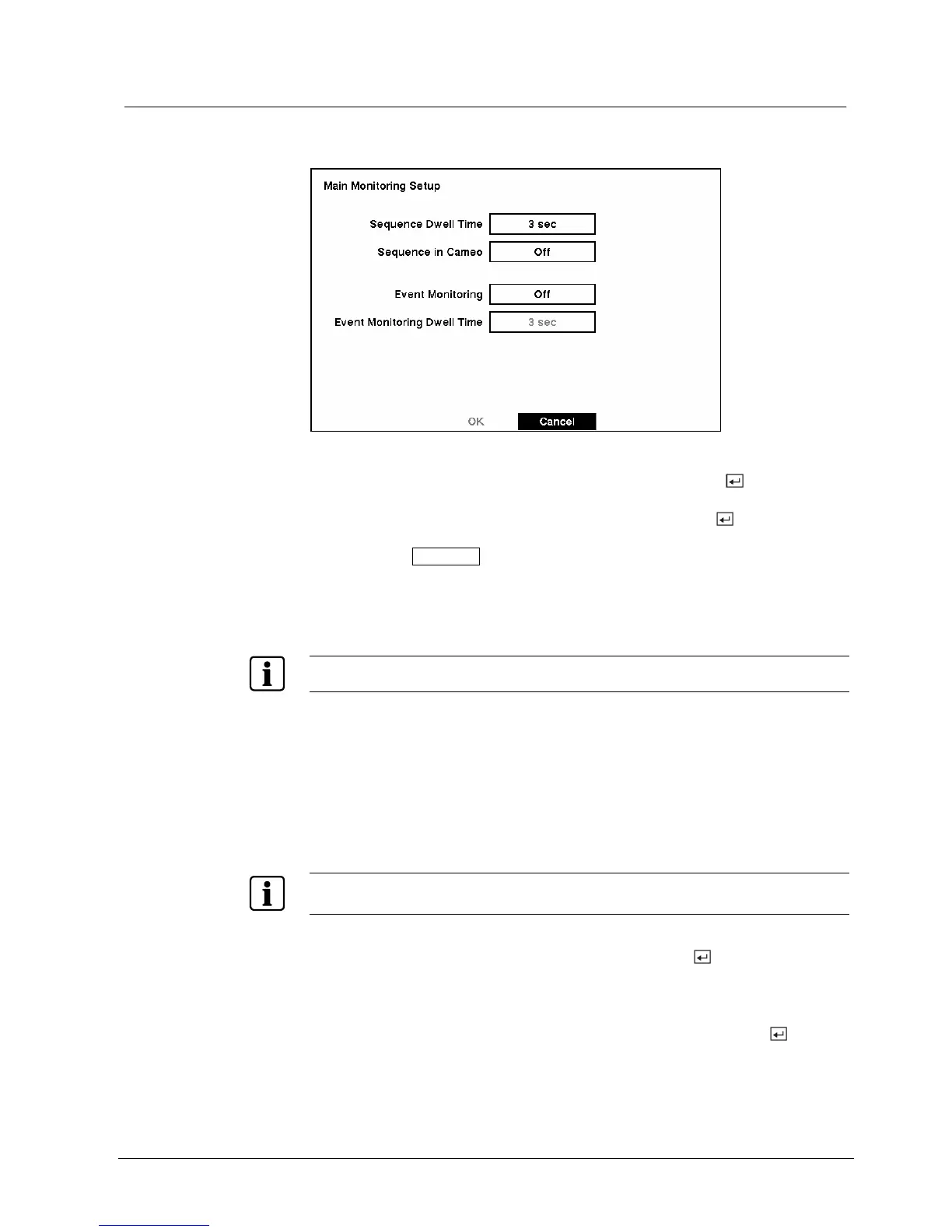

Fig. 58 Main Monitoring Setup screen.
z Highlight the box beside Sequence Dwell Time and press the button. You
can adjust the display dwell time from 3 to 60 seconds.
z Highlight the box beside Sequence in Cameo and press the button to toggle
between On and Off.
z Pressing the Sequence button causes the DVR to sequence cameras, and the
DVR can sequence cameras in two modes: “Page” and “Cameo”. In the Page
mode, the DVR sequences through user-defined screen layouts (pages). In the
Cameo mode, the bottom right window in a multi-screen format sequences
through all cameras.
NOTE:
The DVR does not sequence the camera having video loss in the Cameo mode.
You can define the screen layout in a variety of formats and set the DVR to
sequence through the different screen layouts (pages) so that all the cameras will
be displayed. You can also set up the DVR to display one camera or a group of
cameras all the time while cycling through the remaining cameras in a “cameo”
window. This can be done with one camera displayed full screen while displaying
the cameo window as a PIP (picture in picture), or displaying the cameras in a grid
pattern with the bottom right window as the cameo.
NOTE:
Sequence cannot be used in the 4 x 4 display mode of the 16-channel and 3 x 3 mode of the
9-channel DVR.
z Highlight the box beside Event Monitoring and press the button to toggle
between On and Off. When On, video from the lowest camera number among
those associated with the sensor that detected the event will be displayed full-
screen on the monitor for the preset dwell time.
z Highlight the box beside Event Monitoring Dwell Time and press the button.
Select the event monitoring dwell time from 3 to 60 seconds.
55
Siemens Building Technologies SISTORE AX9 AX16_EN.doc
Fire & Security Products 09.2004
