Configuration
The Motion Detection Zone screen is laid over the video for the selected camera.
You can set up motion detection zones by selecting or clearing blocks.
NOTE:
You can set up motion zones one block at a time in groups of 9 or 16 individual block groups (9- and
16-channel DVR respectively). A block group is positioned within the image area using the Up and
Down arrow buttons, and individual blocks within the block groups are selected or cleared using the
camera buttons.
Press the
button to display the menu screen. The menu on the setup screen
has the following functions:

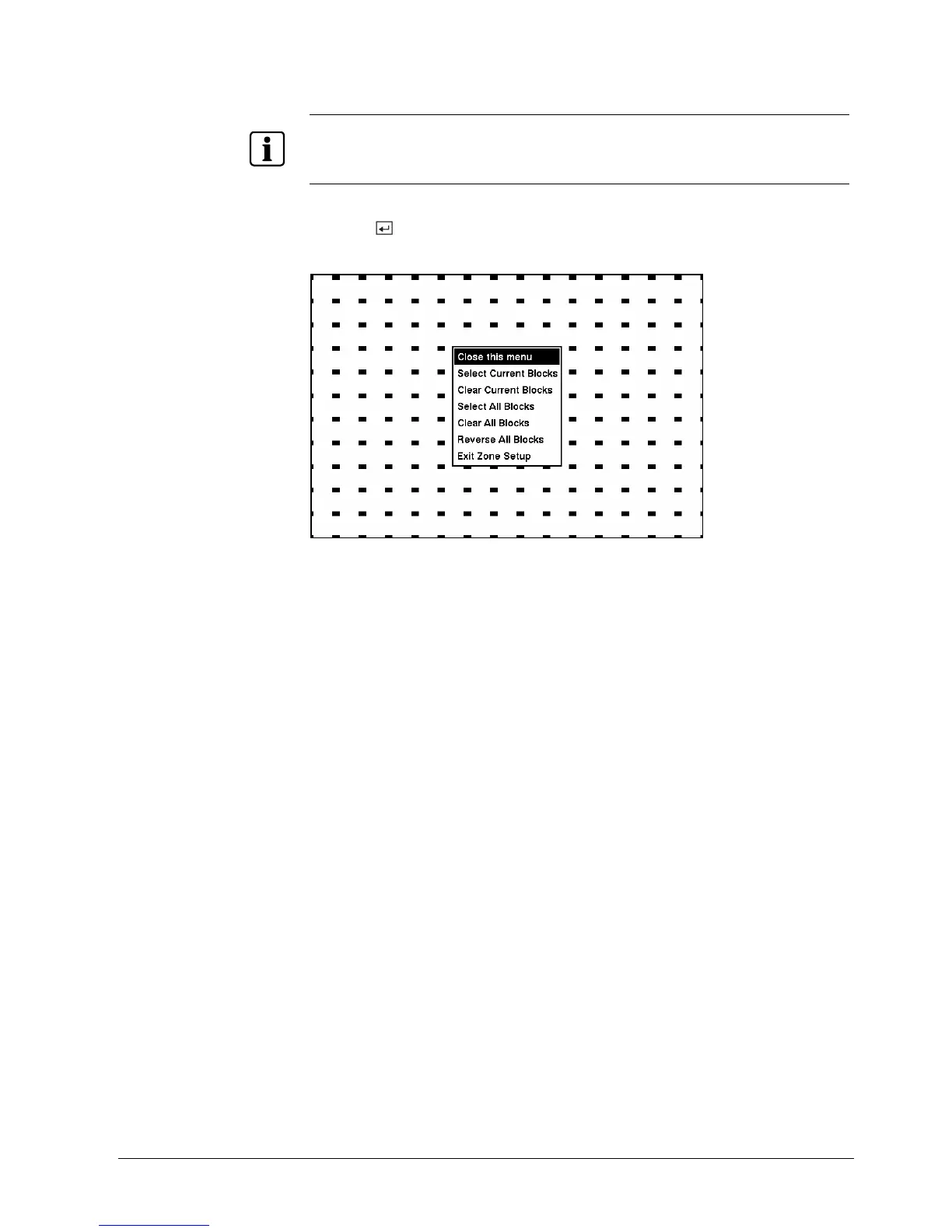

Fig. 39 Motion Detection Zone screen.
z Close this menu — Closes the menu so that you can see the entire screen.
z Select Current Blocks — Activates highlighted blocks to detect motion.
z Clear Current Blocks — Deactivates highlighted blocks so that they will not
detect motion.
z Select All Blocks — Activates all blocks to detect motion.
z Clear All Blocks — Deactivates all blocks so that they will not detect motion.
z Reverse All Blocks — Activates inactive blocks and deactivates active blocks.
z Exit Zone Setup — Asks you to confirm changes and then returns to the
previous screen.
39
Siemens Building Technologies SISTORE AX9 AX16_EN.doc
Fire & Security Products 09.2004
