3BHARDWARE CONFIGURATION AND INSTALLATION
4.4.7 Connection of the PC for SIWATOOL U
Connection in the
terminal block
Signal
name
Remarks
3 RXD1
When using the connecting line
7MH4 607-8CA: conductor name "RxD"
4 GND1
When using the connecting line
7MH4 607-8CA: conductor name "GND"
5 TXD1
When using the connecting line
7MH4 607-8CA: conductor name "TxD"
Table 4-5 Connection of the PC
Ready-made connecting cables are available for connecting the PC (see Order
numbers and accessories)

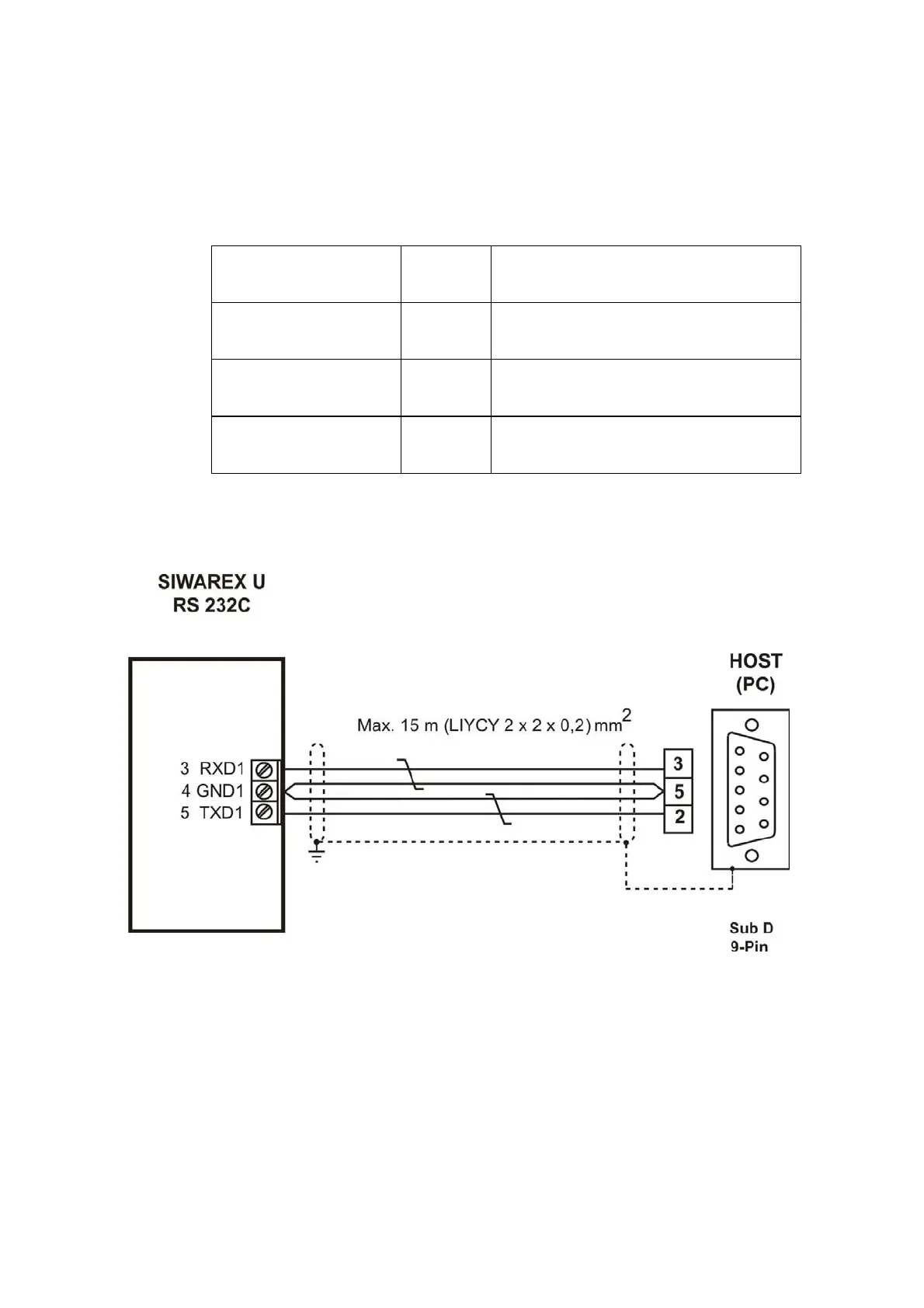

Figure 4-11 Connection of the PC
SIWAREX U 4-23
