Installation and Startup
Rev. 7 August 2021 13 41110485

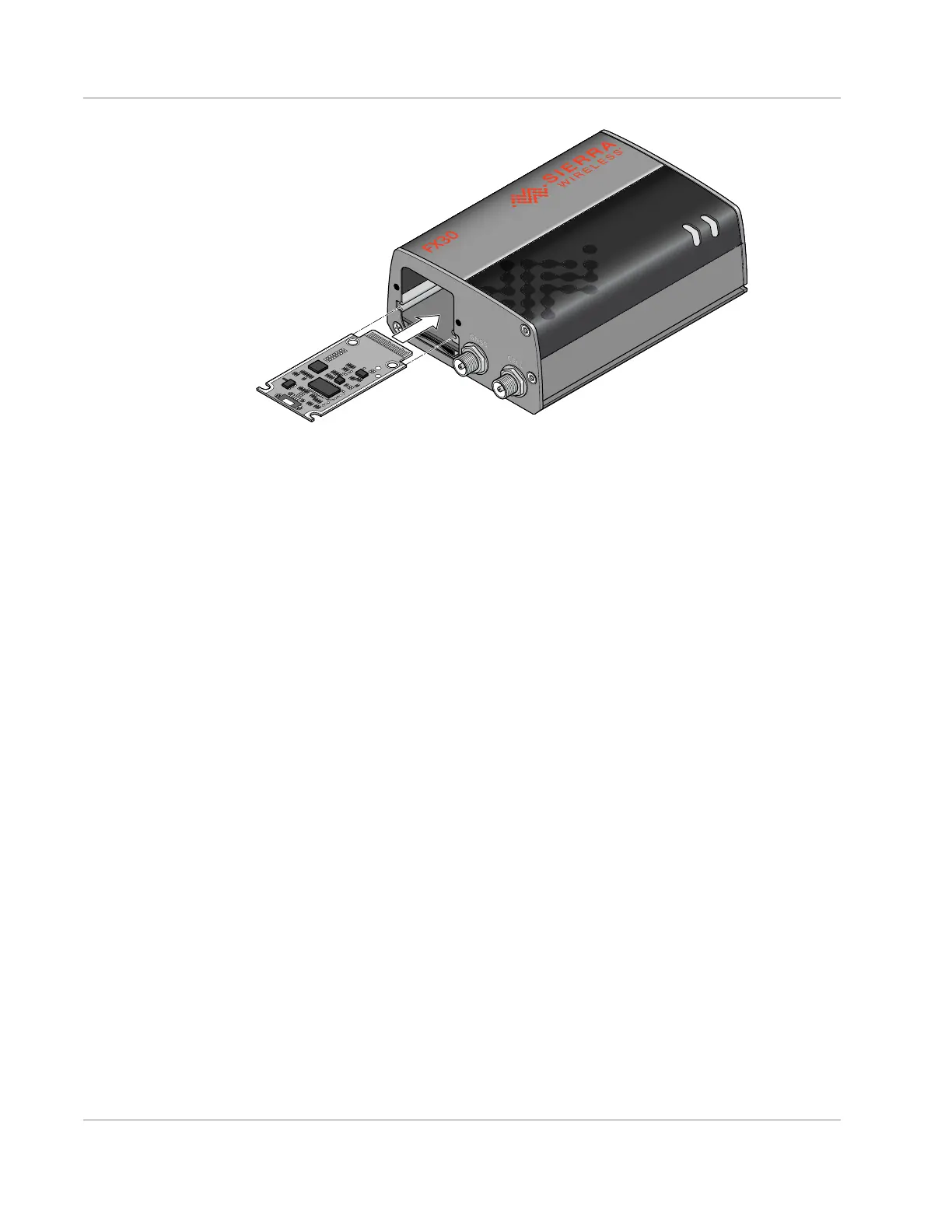

Figure 2-2: Installing the IoT Expansion card
Step 2—Mount and Ground the FX30S
Chassis
You can flat mount the FX30S or mount it on a DIN rail. An optional compatibility bar
allows you to use existing mounting holes if you are replacing a Fastrack Supreme or a
Fastrack Xtend programmable gateway. See Replacing Existing Fastrack Supreme or
Fastrack Xtend Device on page 17.
Mount the FX30S where:
• There is easy access for attaching the cables.
• Cables will not be constricted, close to high amperages, or exposed to extreme
temperatures.
• The front panel LEDs are easily visible.
• There is adequate airflow.
• It is away from direct exposure to the elements such as sun, rain, dust, etc.
You can mount the FX30S:
• On a flat surface (page 14)
• On a DIN Rail (page 17)
