Display and Control Keys
AG05 Date: 15.06.2016 Art. No. 85677 Mod. status 139/16 Page 5 of 64
3 Display and Control Keys
3.1 General
The actuator has a two-line display with special characters and three control keys. The keys
serve for actuator parameterization and control. Two LEDs (1, 2) inform about the actuator's
operating state.

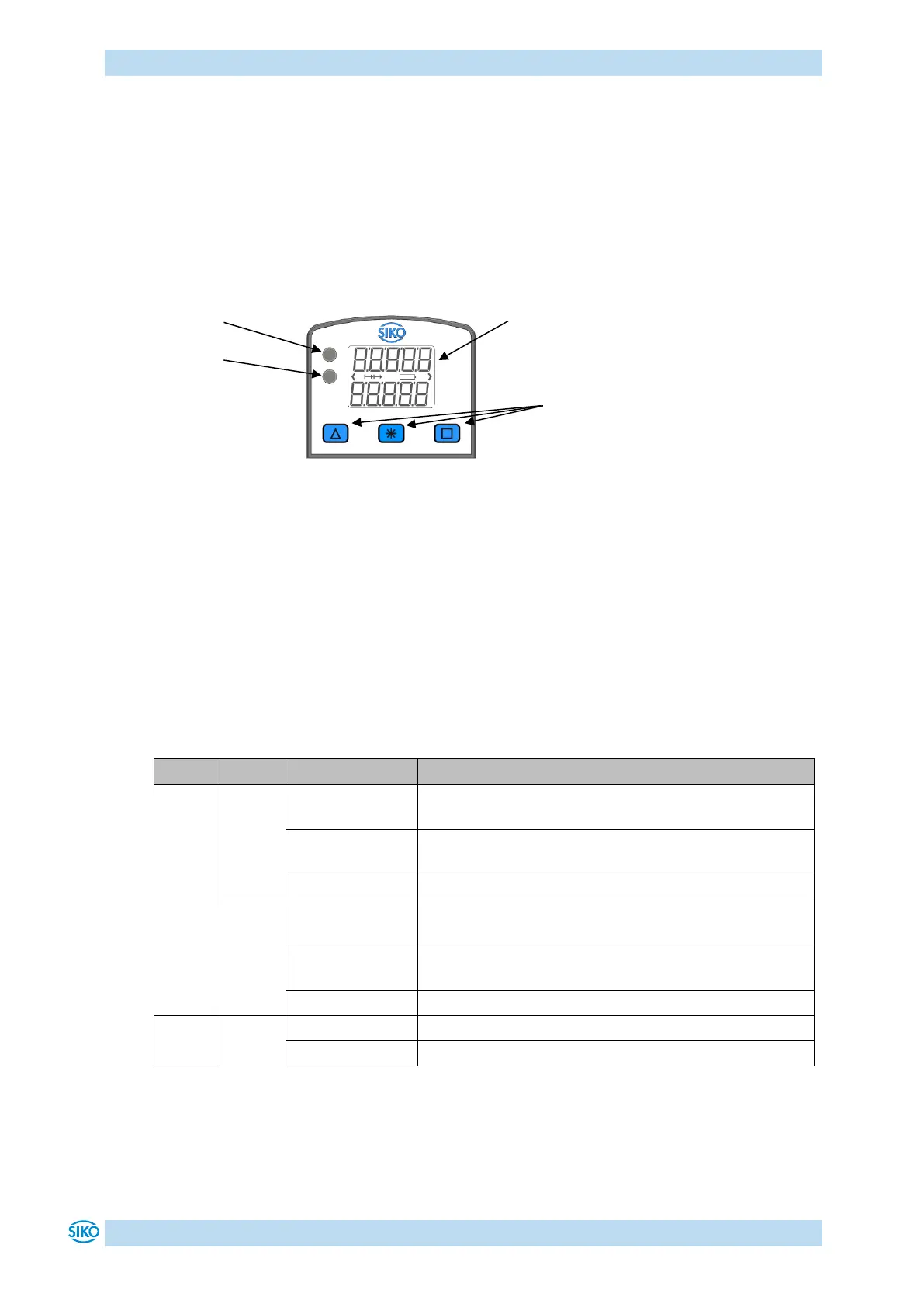

Fig. 2: Control elements
3.2 LCD display
With supply voltage applied to the control, the actual value is displayed in the first line and
the set point value with factory settings in the second line.
The value displayed in the 2nd line can be adjusted via parameters.
3.3 LED displays
LED
Colour
State
Description
LED1
green
on
Actuator is within the programmed position window.
Supply voltage of the output stage is applied.
blinking
Actuator is within the programmed position window.
Supply voltage of the output stage is missing.
off
Actuator is outside the programmed position window.
red
on
Actuator is outside the programmed position window.
Supply voltage of the output stage is applied.
blinking
Actuator is outside the programmed position window.
Supply voltage of the output stage is missing.
off
Actuator is within the programmed position window.
LED2
orange
on
Active bus operation
off
No bus operation
Table 1: LED displays
LED2
LED1
LCD display
Keys
