Adding fuel

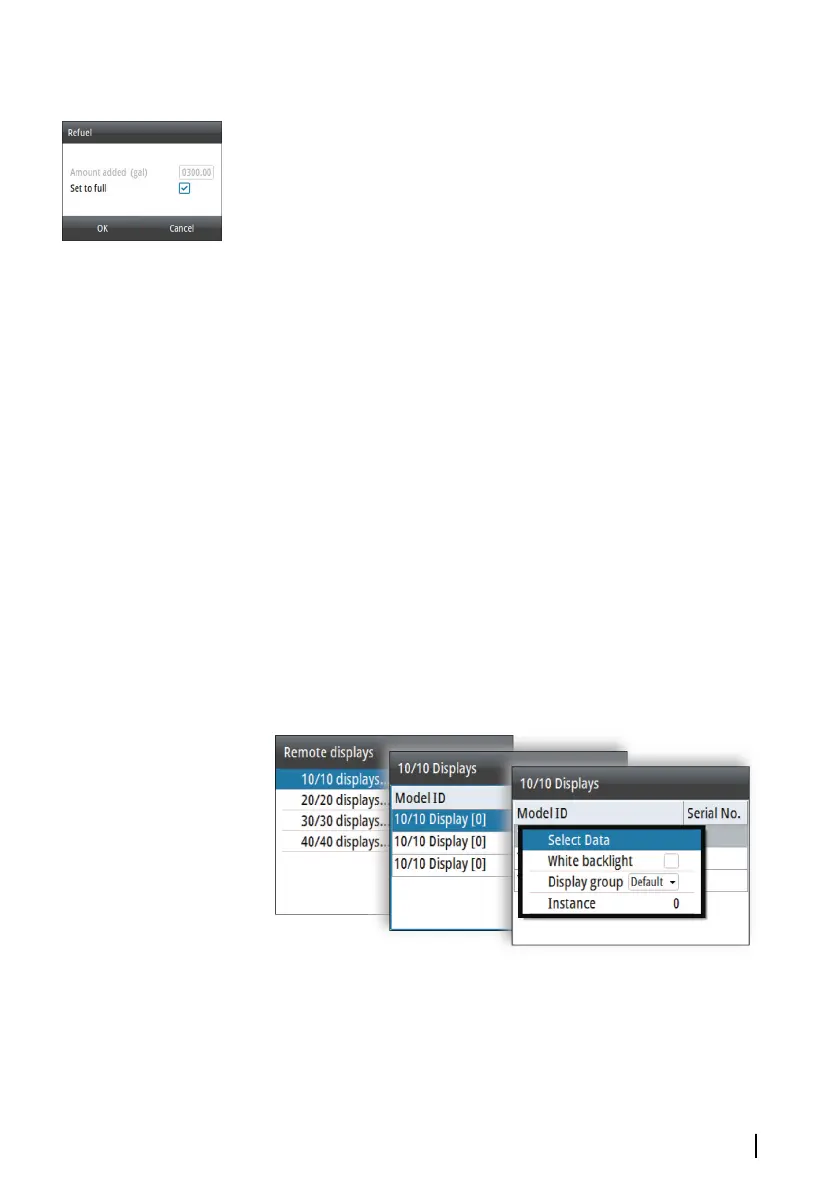

To accurately calculate fuel capacity, fill the tank and select Set to
full in the Refuel dialog.
Fuel used
The fuel Used dialog shows how much fuel has been used since last
fill, from trip reset and seasonal usage (continuous recording).
If more than one engine is on the network, then the Fuel Used data
shown is the total for all engines. It also lists the data for each
engine.
The Reset option in the dialog allows resetting the fuel used data.
You can reset all engines or each engine separately.
Remote displays
Any compatible B&G HV display connected to the network can be
configured to show desired data via the IS42.
All HV Displays are listed in the Remote displays dialog. Displays not
present on the network are greyed out.
1. Select the type of display you want to configure
-
Connected displays of the selected type are listed
2. Highlight the display you want to configure
- The HV display itself starts flashing
3. Press the MENU key to display the options available:
• Select data: Used for defining which data that should be
displayed on the selected HV display
• White backlight: Sets the the backlight to white
Software setup | IS42 Operator Manual
53
