Simrad MX500 | 161
MX 500
LAN Cable
(RJ-45 Conn.)
AUX Cable
(8-Pin Connector)
MOB Ext. Input (Yellow)
GND (Green)
Dry Contact 1 (Blue)
Dry Contact 2 (Purple)
Speed Log IN + (Grey)
Speed Log IN - (White)
Speed Log Out + (Org)
Speed Log Out - (Brn)
Antenna Cable (10-Pin Connectors)
Negative GND (Black)
10.5 to 32 VDC (Red)
NMEA TX1 - (Blue)
NMEA TX1 + (Brown)
NMEA RX1 - (Orange)
NMEA RX1 + (Green)
NMEA TX2 - (Yellow)
NMEA TX2 + (White)
NMEA RX2 - (Purple)
NMEA RX2 + (Grey)
GND Fast Channel IN (Lite Green)
Shield
PWR/Data Cable
(12-Pin Connector)
MX421
MX521A
MX525A

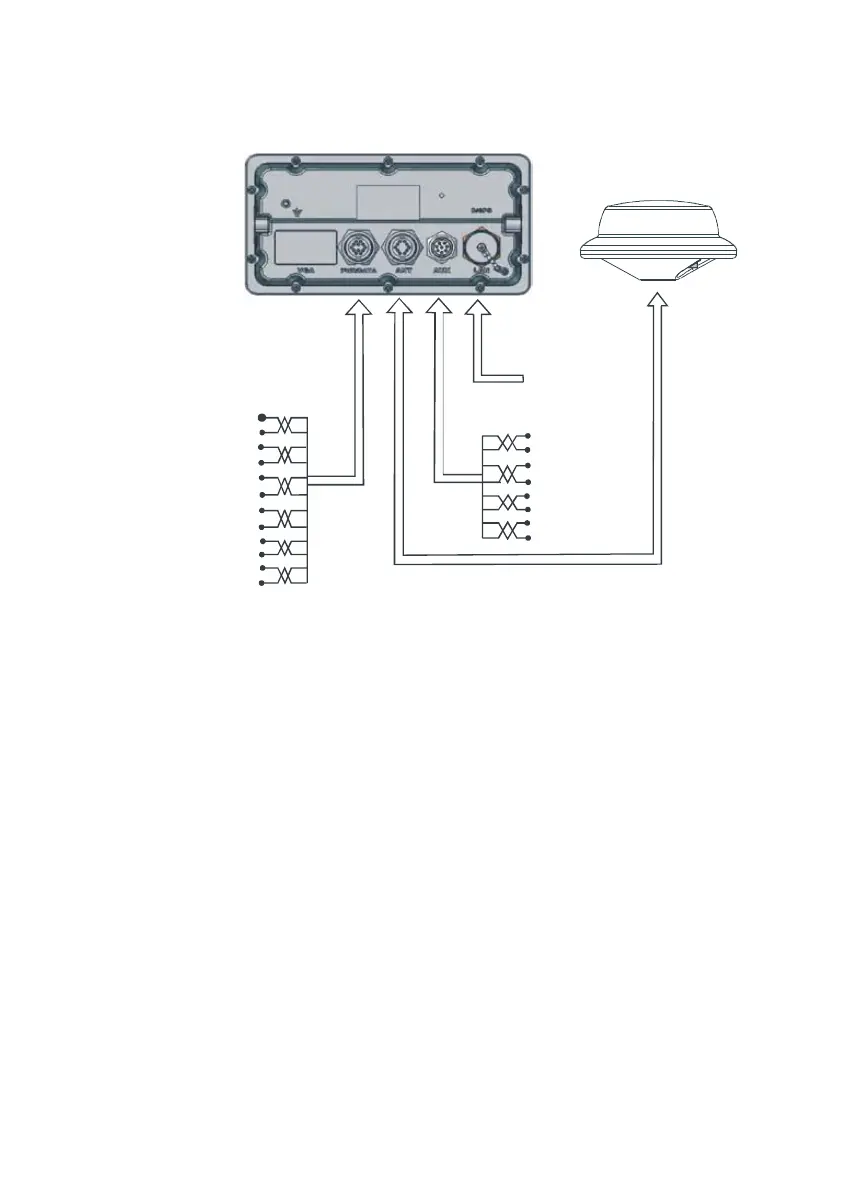

Figure 4.8 MX500 Basic Wiring Diagram
