section and the Installation section of this manual for full
details on depth data.
Below the depth data you will find the next route leg
vector, the Range to the waypoint and Time To Go data,
explained in the NAV3 section.

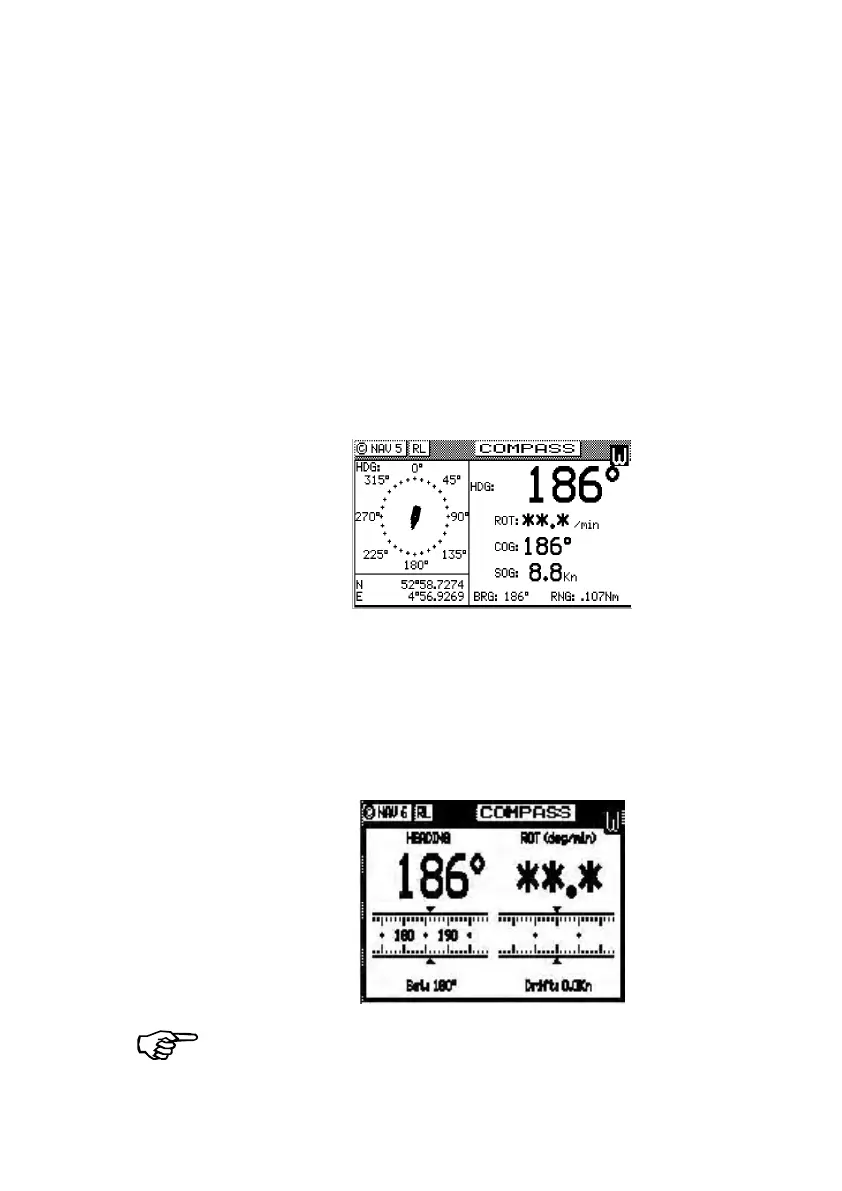

NAV5 - Compass Display Screen
The NAV 5 screen is used to display the Heading and
Rate of Turn values given by a heading sensor like the
MX575A Satellite Compass. In addition, it also displays
the position, COG, SOG, BRG, and RNG. This screen can
be accessed by pressing the NAV key repeatedly until you
reach the desired NAV screen.
NAV6 - Compass Display Screen
The NAV 6 screen is used to display the Heading and
Rate of Turn values given by the MX575A Satellite
Compass. In addition, it also displays the Set and Drift.
This screen can be accessed by pressing the NAV key
repeatedly until you reach the desired NAV screen.
The NAV1 - NAV5 screens are inactive if an MX antenna is
not connected or not detected.
