10 |
Wiring | NSO evo2 Installation Manual
Power Control unconnected
Device will turn on and off when the power button on the front of the unit is pressed.
Leave yellow Power Control wire disconnected. Tape or heat-shrink end to prevent shorting.
Power Control to supply positive (auto on)
Device will turn on immediately when power is applied.
Common the yellow wire with the red wire after the fuse.
¼ Note: If set to ‘Slave’ the unit can not be powered down by
power button, but can be put in to standby mode. MO series
monitors will enter active off state automatically, where back-
light is turned off . Unit should not be set as ‘Master’ using this
wiring.

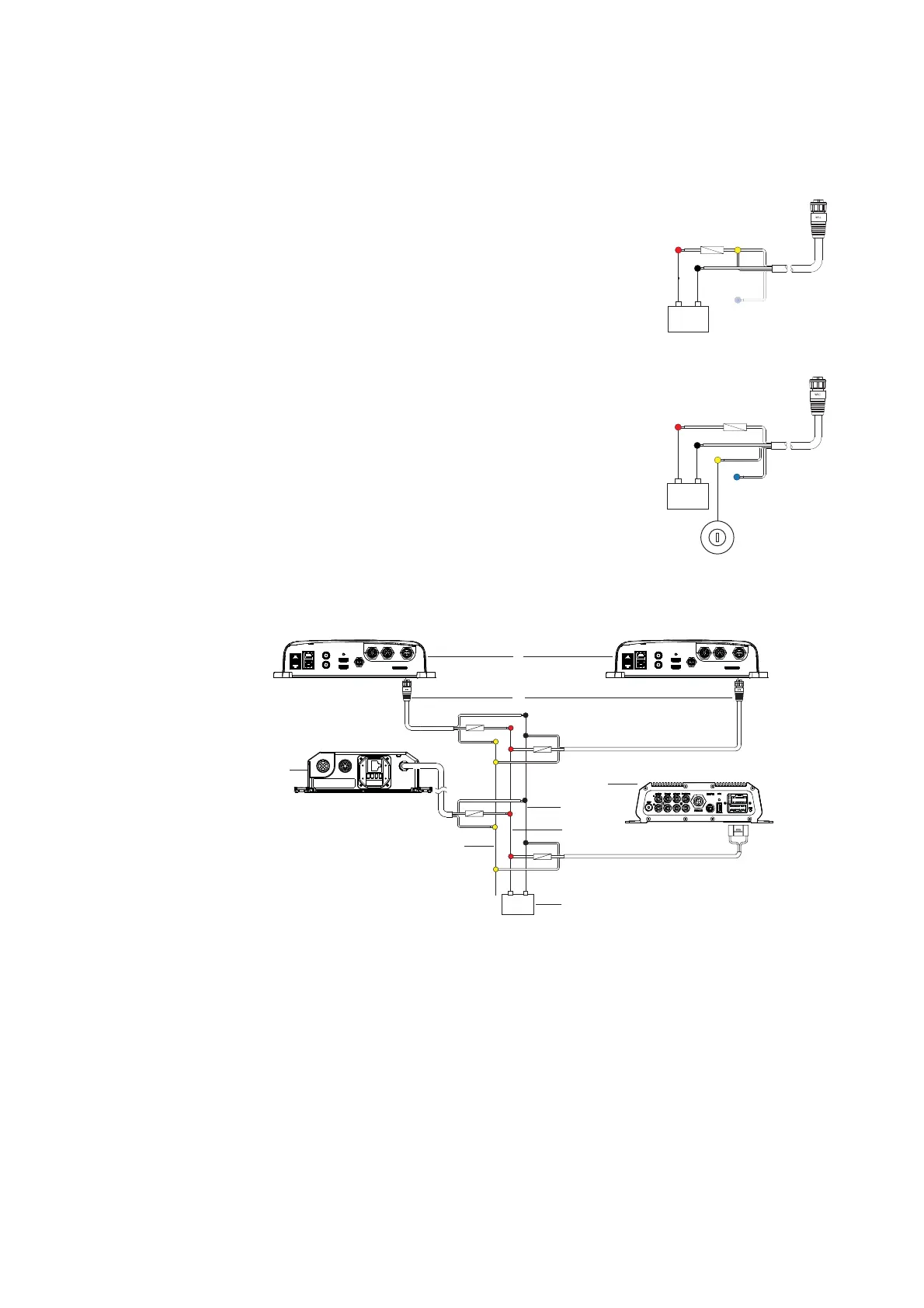

Power Control to ignition
Device will turn on once ignition is turned on to start engines.
Connect yellow wire to ‘accessories’ output of engine key
switch.
¼ Note: Engine start batteries and house batteries should have a
common ground connection.
Power Control master/slave bus
Turning on the ‘master’ device turns on connected ‘slave’ devices. All devices have yellow wire
tied together.
+
_
6
3
2
7
8
5
4
1
1 NSO evo2 Processors
2 Power cable
3 Radar Interface box
4 Sonic Hub
5 ground wire
6 positive wire
7 power control wire
8 DC supply
In the diagram above, if the left NSO evo2 turns on using the power button and is set as the
Power Control Master, it will output voltage on the Power Control bus to power on the other
+
_
+
_
START
ACC
ON
To Next Page
