NSO evo2 Overview
The NSO evo2 Marine Processor features two fast quad core processors, and dual monitor
outputs to drive two displays with independant information.
Connectivity options for data are broad, with an internal ethernet switch with three ports,
NMEA 0183 transmit and receive ports, and a connection point for a NMEA 2000 compliant
data bus.
Networking capability exists with other NSO evo2 processors, as well as NSS evo2, NSS, NSE,
and NSO.
Expansion options include: Integration with autopilot computers, external broadband, chirp,
and StructureScan echosounders, Broadband 3G/4G, HD Digital, and Halo radar, SonicHub,
SiriusXM™ Weather and Audio Support (USA only), NMEA 2000/SimNet, camera/video signal
input, and BEP CZone.

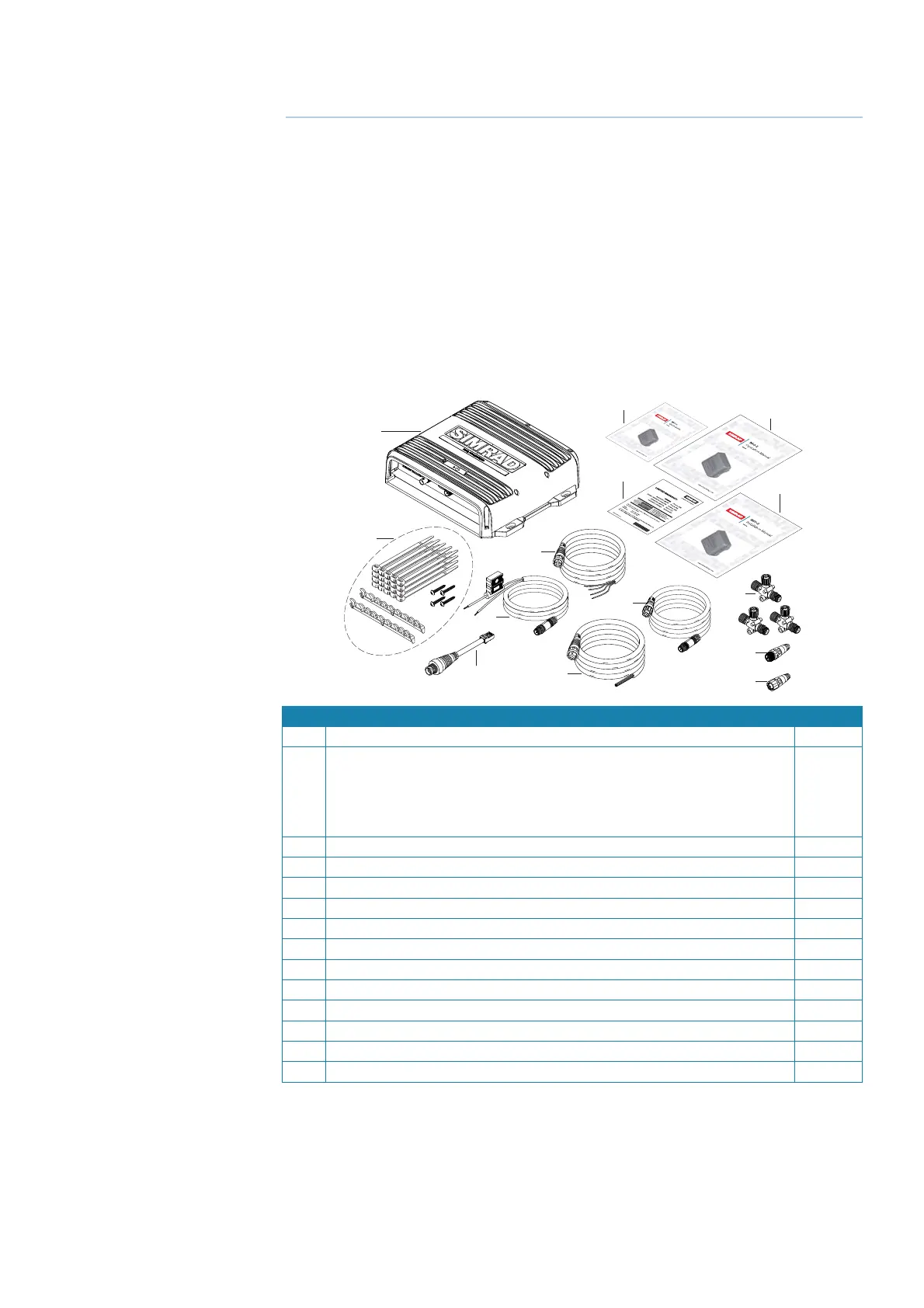

Included Items
6
1
2
3
4
5
7
8
9
1011
12
13
14
Item Description Quantity
1 NSO evo2 Marine Processor 1
2 NSO evo2 MPU Installation Kit -
Cable retainer
Cable ties, 102 mm x 2.5 mm, black
Pan head screws 3.5 x 19, A4 DIN7981B
1
2
20
8
3 Quick Start Guide 1
4 Operation manual 1
5 Installation manual 1
6 Simrad Advantage Warranty card 1
7 NSO evo2 Power cable (4 wire) 1
8 Micro-C 1.8 m (6’) drop cable. male-female plugs 1
9 Micro-C power cable 1
10 NMEA 0183 serial cable, 2m (8 wire) 1
11 Ethernet adaptor - 5pin female to RJ45 male 1
12 Micro-C T-Connector 3
13 Micro-C terminator -120 ohm, male 1
14 Micro-C terminator -120 ohm, female 1
