Simrad NSO evo2 Installation Manual

| 17
Wiring | NSO evo2 Installation Manual

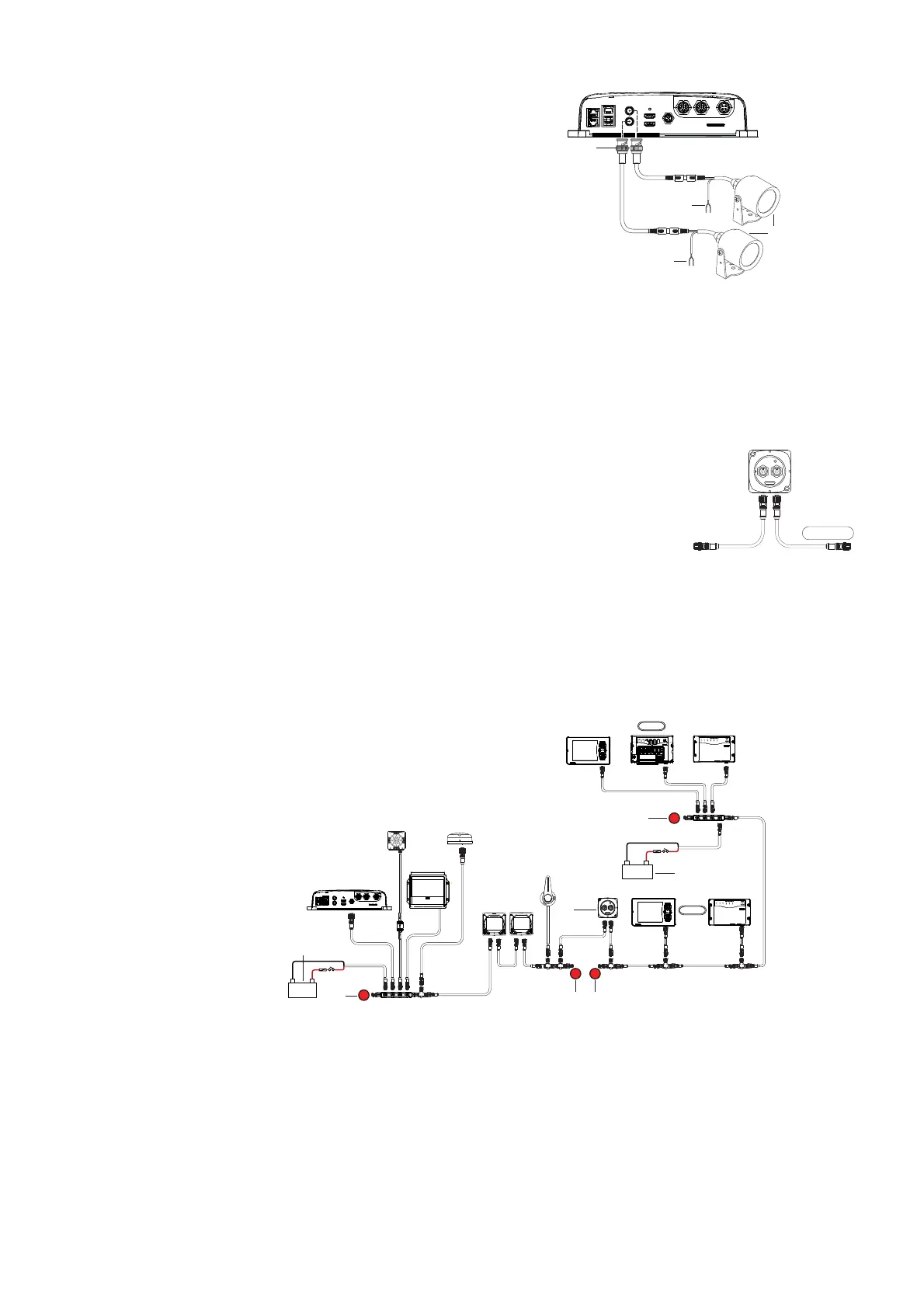

Connecting video sources
1 BNC male plugs
2 Composite video cameras
3 Camera power feed
¼ Note camera cables are not supplied, and will need to be selected to suit termination - BNC at
the NSO evo2, and typically BNC or RCA plug at the camera end.
¼ Note camera power is externally supplied, see camera installation instructions for require-
ments.
CZone connection to NMEA 2000
When interfacing to C-ZONE network it is recommended to use a BEP Network interface
bridge to join the two network backbones together.
The CZONE / NMEA 2000 Network interface bridge isolates the
power of the two networks, but allows data to be freely shared
between both sides.
The Interface Bridge can also be used for expansion of the
NMEA 2000 network, when the maximum node limit (node =
any device connected to network) for the network has been reached or the maximum cable
length of 150m will be exceeded. Once an Interface Bridge has been fi tted, a further 40 nodes
and additional cable length can be added.
The Network Interface is available from your BEP dealer. For more information please refer to
the BEP web site www.bepmarine.com.
Below is the correct method to interface to a C-ZONE network. In this example,
power is injected twice but connecting the two networks together via the BEP
Network interface bridge provides power isolation and correct termination.
+
_
12 V DC
+
_
12 V DC
T
T
NETWORK INTERFACE
Network 1 Network 2
CZONE
NETWORK
67$786
5HG1HWZRUN
*UHHQ1HWZRUN
C-ZONE
C-ZONE
TT
4
2
4
3
5
1
5
1 Network interface bridge
2 Simrad network power
3 Czone network power
4 Simrad network termination
5 CZone network termination
+ -
+ -
1
2
3
3
C-ZONE
NETWORK INTERFACE
Network 1 Network 2
CZONE
NETWORK
67$786
5HG1HWZRUN
*UHHQ1HWZRUN
Simrad
