Bytes per sounding
Select how many bytes per seconds that are to be used when saving the log file. More bytes
yield better resolution, but cause the record file to increase in size compared to using lower
byte settings.
Create StructureMap
If StructureScan is available on the network, you can convert the .sl2 logs to StructureMap
format (.smf) when recording completes. The log file can also be converted to StructureMap
format from the Files option.
Upload to Insight Genesis
Files are transmitted to Insight Genesis when recording completes, if you are connected to a
wireless hotspot. For information about wireless hotspots, refer to "Wireless connection"
on page
95.
Privacy
If allowed by your selected Insight Genesis account, you can choose between setting the
recorded log files as Private or Public at Insight Genesis.
Time remaining
Shows the remaining allocated space available for recordings.

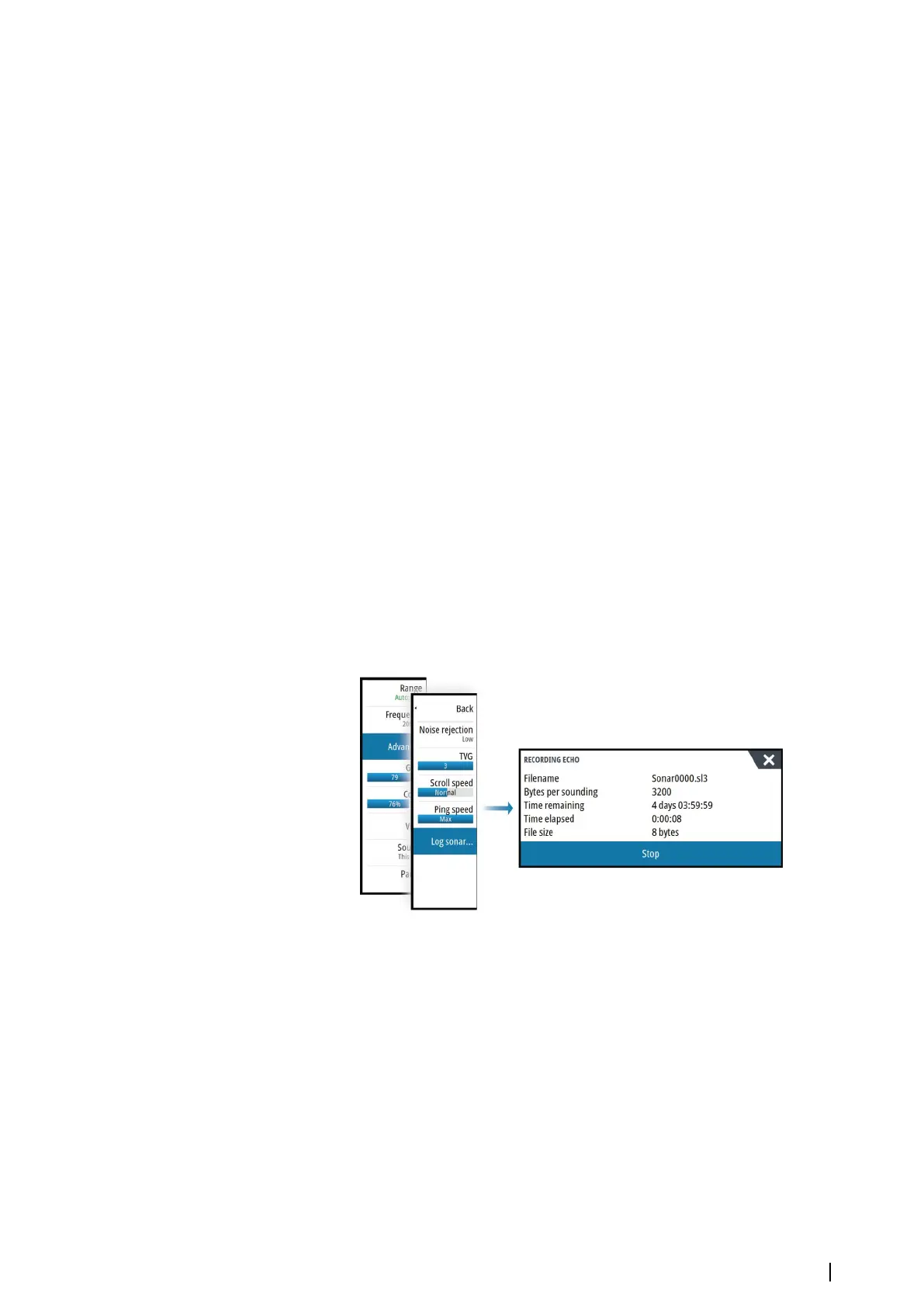

Stop recording log data
Select Stop in the Recording Echo dialog to fully stop the recording of all echosounder data.
Ú
Note: If you have selected the Upload to Insight Genesis option and are connected to
a wireless hotspot, your recorded files are transmitted to Insight Genesis when you select
Stop.
Viewing the recorded sounder data
Both internally and externally stored sounder records may be reviewed when the view sonar
log option is selected in the Echo settings dialog. Refer to "Echosounder settings" on page 81.
The log file is displayed as a paused image, and you control the scrolling and display from the
replay menu option.
You can use the cursor on the replay image, and pan the image as on a normal echo image.
If more than one channel was recorded in the selected echo file, you can select which
channel to display.
You exit the replay mode by pressing the X key or by selecting the X symbol in the upper
right corner of the replay image.
