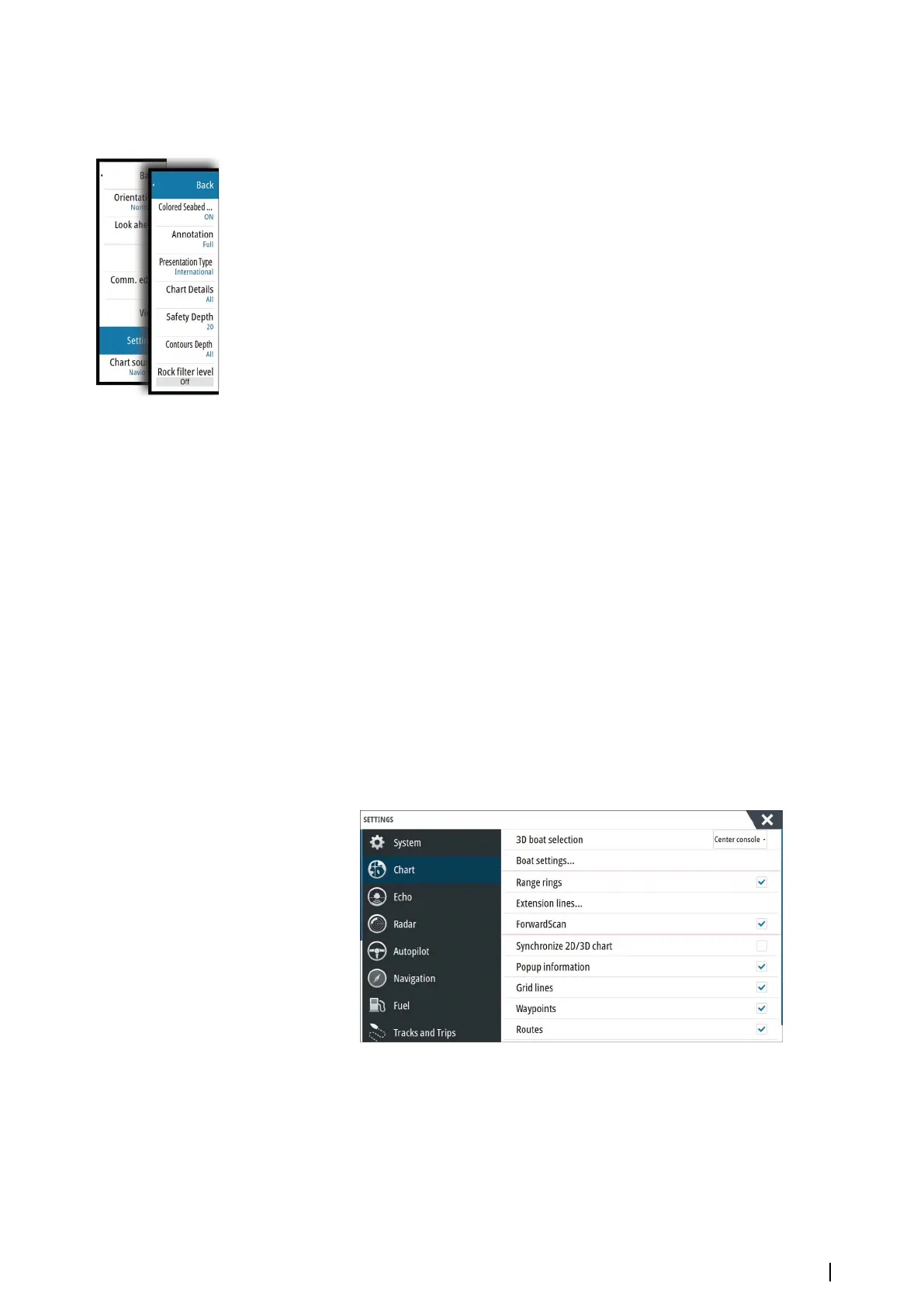

Navionics chart settings
Colored seabed areas
Used for displaying different depth areas in different shades of blue.
Presentation type
Provides marine charting information such as symbols, colors of the navigation chart and
wording for either International or U.S. presentation types.
Annotation
Determines what area information, such as names of locations and notes of areas, is available
to display.
Chart details
Provides you with different levels of geographical layer information.
Safety depth
The Navionics charts use different shades of blue to distinguish between shallow and deep
water.
Safety depth, based on a selected limit, is drawn without blue shading.
Ú
Note: The built in Navionics database features data down to 20 m, after which it is all
white.
Contours depth
Determines which contours you see on the chart down to the selected safety depth value.
Rock filter level
Hides rock identification on the chart beneath a given depth.
This helps you to declutter charts in areas where there are many rocks located at depths well
below your vessel's draught.
Chart settings
Settings and display options made in the Chart settings page are common for all chart
panels.
3D boat selection
Determines which icon to use on 3D charts.
Boat settings
The boat settings are used when calculating an automatic route. The boat's draught, width
and height must be input to use Navionics Dock-to-dock autorouting and easy routing
features.
Charts | NSS evo3 Operator Manual
35
