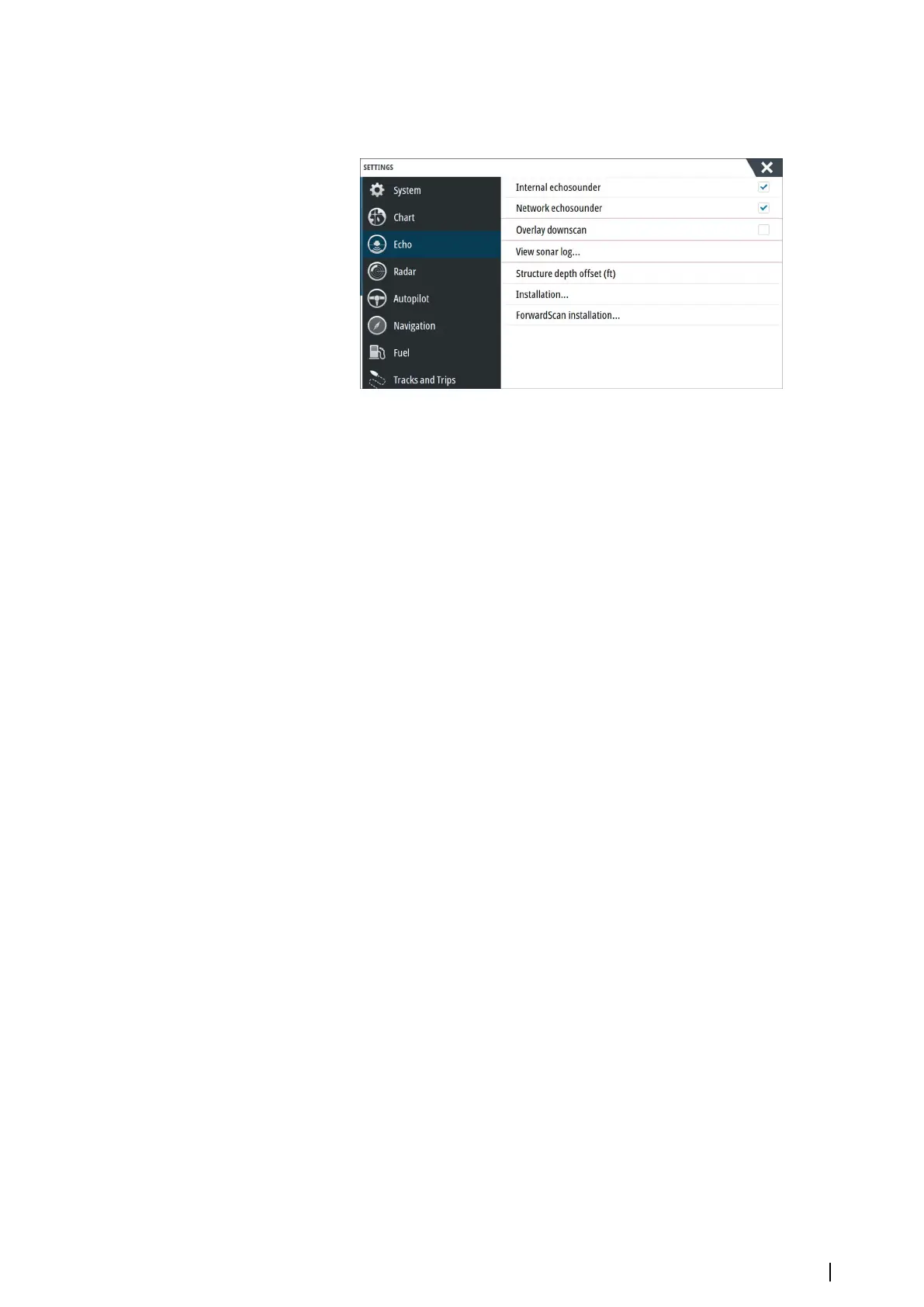

Echosounder settings
Internal Echosounder
Select to make the internal Echosounder available for selection in the Echosounder menu.
For more information about panel source selection, refer to the Operator manual.
When set to off, this option disables the internal
Echosounder in the unit. It will not be listed
as a Echosounder source for any unit on the network. Select this option on a unit which does
not have a transducer connected.
Network Echosounder
You can share the Echosounder images from this unit with other units connected on the
Ethernet network.
For more information about how to setup Echosounder, refer to the separate NSS evo3
Installation manual.
Overlay downscan
When a DownScan source is connected to your system, you can overlay DownScan images
on the regular Echosounder image.
When activated, the Echosounder menu expands to include basic DownScan options.
View Echosounder log
Used to view Echosounder recordings. The log file is displayed as a paused image, and you
control the scrolling and display from the menu.
You can use the cursor on the image, measure distance, and set view options as on a live
Echosounder image. If more than one channel was recorded in the selected Echosounder
file, you can select which channel to display.
You exit the view function by selecting the X in the upper right corner.
Structure depth offset
Setting for Structure transducers.
All transducers measure water depth from the transducer to the bottom. As a result, water
depth readings do not account for the distance from the transducer to the lowest point of
the boat in the water or from the transducer to the water surface.
To show the depth from the lowest point of the boat to the bottom, do the following. Before
setting the Structure offset, measure the distance from the structure transducer to the lowest
point of the boat in the water. If, for example, the distance is 0.3 m (1 ft), it will be input as
(minus) - 0.3 m (-1 ft).
To show the depth from the water surface to the bottom, do the following. Before setting
the Structure offset, measure the distance from the structure transducer to the water surface.
If, for example, the distance is 0.3 m (1 ft), it will be input as (plus) 0.3 m (1 ft).
Echosounder | NSS evo3 Operator Manual
81
