Simrad NSS7 User Manual

|
9
NSS overview | NSS Installation Manual

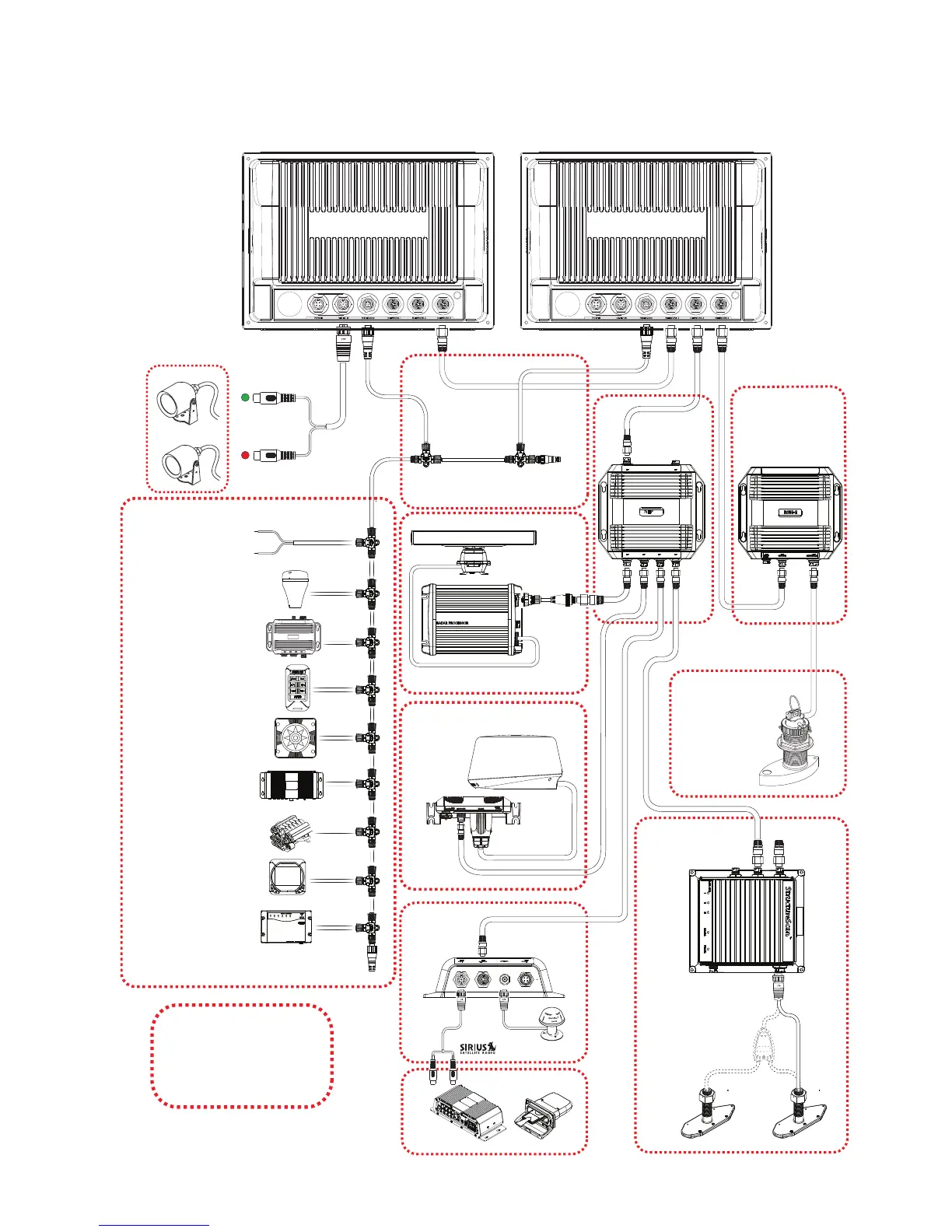

NSS12 potential system example
VIDEO IN
Optional
accessory
HD Radar
ECHOSOUNDER
BSM-1 or BSM-2
NEP-2
WEATHER
AUDIO
IMAGING SONAR
iPod Dock
Sirius satelite weather
and radio (USA only)
LSS-2 thru-hull
transducer + 2nd transducer
for high deadrise hulls
2, 4, 6, 10 or 25 kW
Audio cable
POWER
NETWORK
NETWORK NETWORK NETWORK NETWORK
NSS12 NSS12
ETHERNET
SWITCH
TRANSDUCER
BROADBAND RADAR
3G/4G
WM-2
Various inhull,
through hull, and
transom mount
options available
External GPS: ZG50
POWER: 12 V DC
Auto Pilot: Triton / AC12
Heading Sensor: RC42
Audio: SonicHub
Engines: NMEA2000
Digital Switching:
CZONE
Instruments: Triton
AIS: NAIS-400
NMEA2000
StructureScan HD

Simrad NSS7 Specifications

General

Screen Resolution	800 x 480 pixels
Chartplotter	Yes
Ethernet Ports	1
NMEA 2000	Yes
Screen Size	7 inches
Operating Frequency	50/200 kHz
