Mounting the NSS display
Panel mount
3

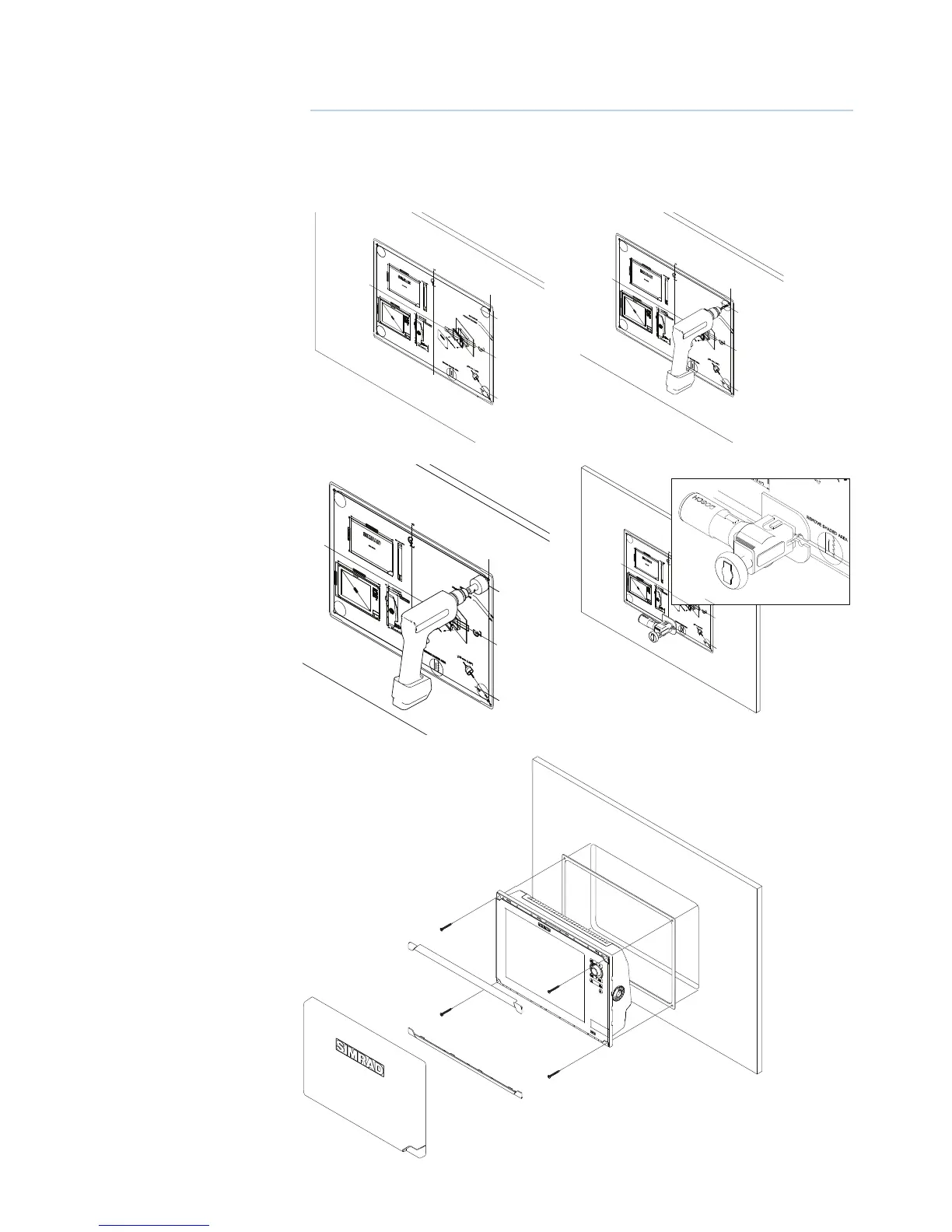

Attach the ush mounting template
to the selected mounting position
using adhesive tape.
Drill pilot holes for the four hole saw
cuts and four self tapping screws
used to secure the display. If using
M4 machine screws use a 5 mm
(0.20 ”) drill bit.
Peel backing o the gasket and ap-
ply to the surface.
Connect all cables to the rear of the
unit before placing the unit into the
console.
Secure the display to the surface.
To nish o the installation, rmly
clip the upper and lower bezels in
place.
Note: For ush installations the sup-
plied rear bezel (NSS7/8) is not used.
Use a 25 mm (1 “) hole saw to cut the
four corner radius.
Cut along the dotted line and
remove the shaded area.
