Simrad NSS7 User Manual

24
|

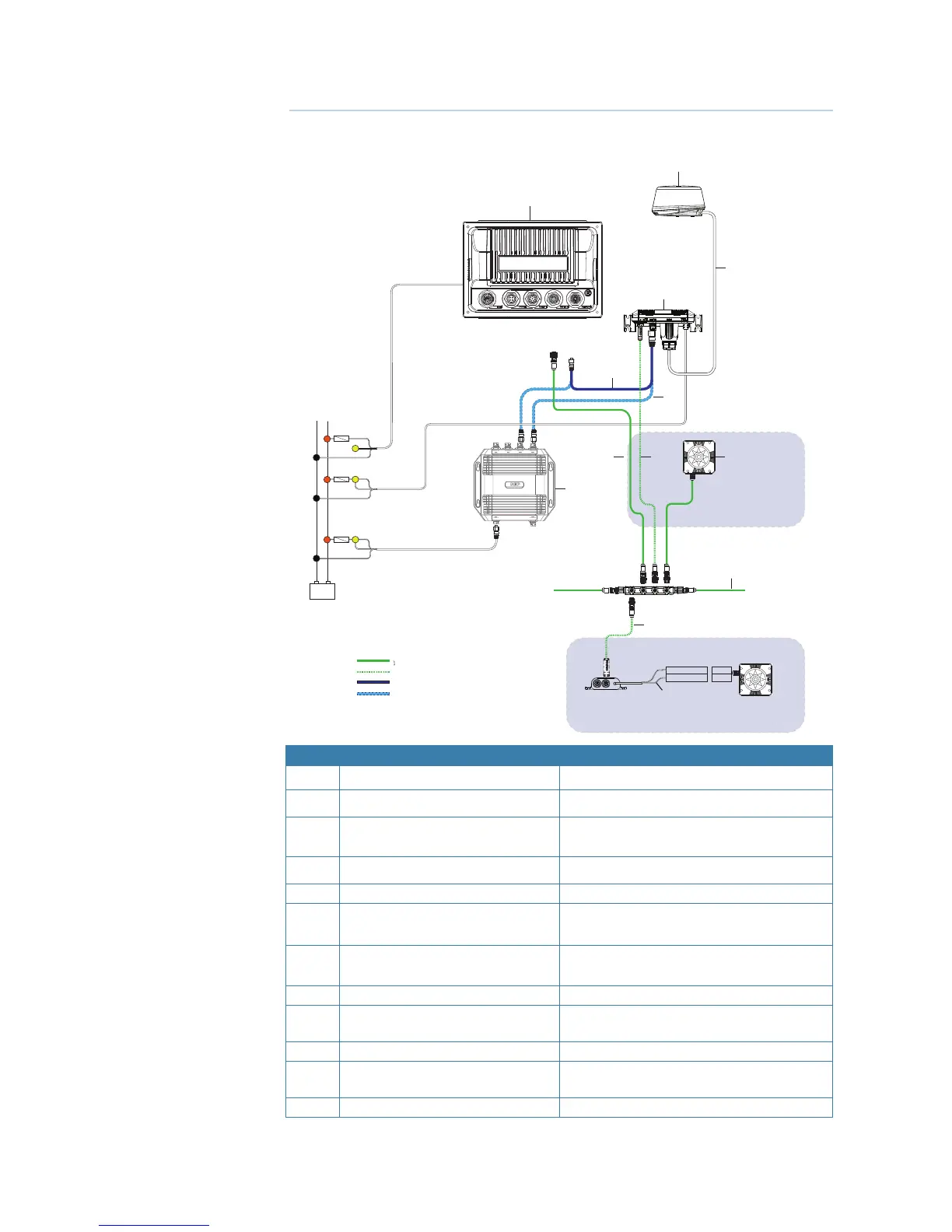

RADAR | NSS Installation Manual
RADAR
Broadband radar (3G / 4G)
+
_
Micro-C
Micro-C to SimNet
Ethernet cable
Ethernet cables if
using NEP-2
FUSE
FUSE
FUSE
7
POWER
NETWORK
NETWORK NETWORK NETWORK NETWORK
4
6
5
8
7
9
12
10
3
2
Magnetic heading source
required for Chart overlay
/ MARPA
Network
Brown RX-
White RX+
AT10HD
NMEA083 to SimNet
Converter Heading Only
Cut off 12 Pin
plug to expose bare wires
NMEA0183 10 Hz Heading
(e.g Gyro, Sat Compass)
Alternative: NMEA0183 heading
TX-
TX+
11
1
Micro-C
Ethernet
9
Key Description Notes
1 NSS display
2 BroadBand™ Radar Scanner
3 Interconnection cable Standard 20 m (65 ft) cable. Optional lengths:
10 m (33 ft) and 30 m (98 ft)
4 RI10 Radar interface box
5 Ethernet cable Radar supplied with a 1.8 m (6 ft) cable
6 Ethernet cables Additional required to connect radar via a
NEP-2
7 NEP-2 expansion port module
8 Micro-C drop cable
9 Micro-C to SimNet drop cable Allows display to receive heading informa-
tion for chart overlay and MARPA
10 RC42N Heading Sensor
11 AT10HD NMEA 0183 - NMEA 2000 Converts NMEA 0183 to NMEA 2000/SimNet
(Only heading information is converted)
12 NMEA 2000 Micro-C backbone
8
