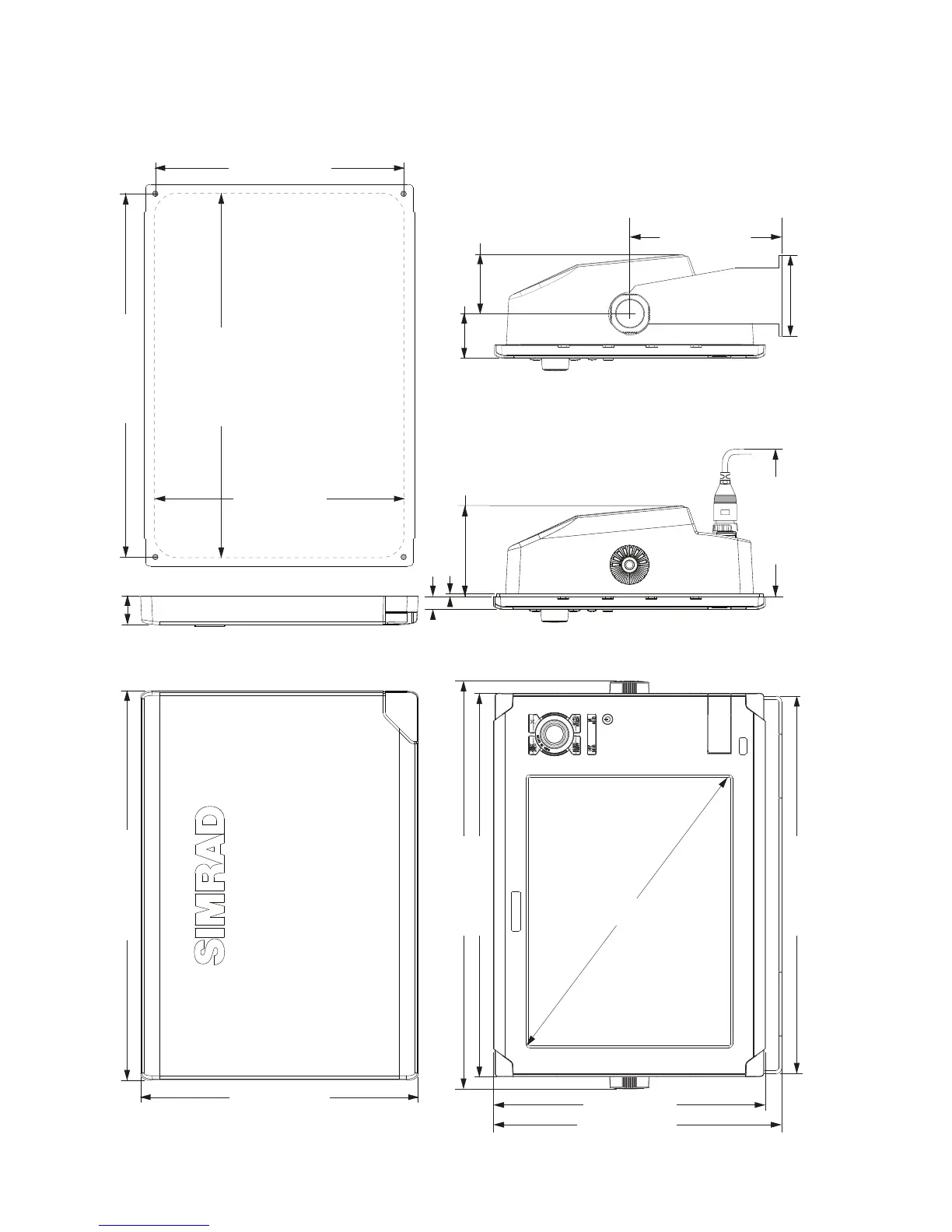

Dimensional Drawings | NSS Installation Manual
NSS12
357.5 mm (14.07")
250 mm (9.84")
265 mm (10.43")
231 mm (9.09")
229.5 mm (9.03")
26 mm (1.02")
83.5 mm (3.28")
54.5 mm (2.14")
140 mm (5.51")
41 mm (1.61")
135 mm (5.31")
75 mm (2.95")
12 mm (0.47")
2.3 mm (0.09")
255 mm (10.39")
SUN COVER
CUTOUT
353 mm (13.89") 375 mm (14.76")
337 mm (13.26")
335.5 mm (13.20")
347 mm (9.72")
12.1

Simrad NSS7 Specifications

General

Screen Resolution	800 x 480 pixels
Chartplotter	Yes
Ethernet Ports	1
NMEA 2000	Yes
Screen Size	7 inches
Operating Frequency	50/200 kHz
