53

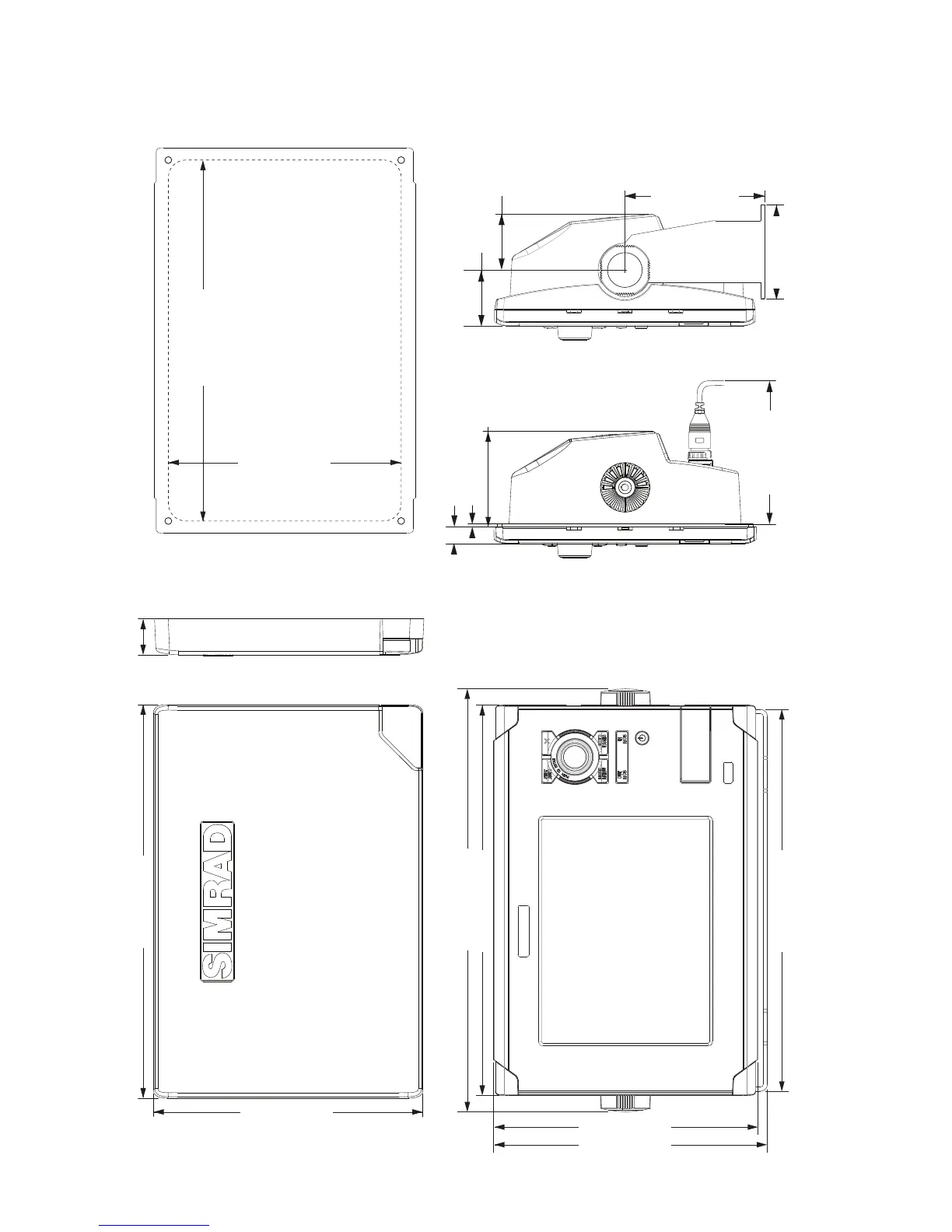

Dimensional Drawings | NSS Installation Manual
NSS8
288 mm (11.33")
197 mm (7.75")
192 mm (7.56")
199 mm (7.83")
SUN COVER
26.5 mm (1.04")
283.5 mm (11.16")
306.9 mm (12.08")
68 mm (2.67")
120 mm (4.72")
69 mm (2.71")
12 mm (0.47")
2.3 mm (0.09")
41 mm (1.61")
41 mm (1.61")
171 mm (6.73")
265 mm (10.43")
277 mm (10.90")
103 mm (4.05")
