External GPS | NSS Installation Manual
Echosounder
Internal echosounder
The NSS7 and NSS8 have an Internal Broadband Echosounder. Navico transducers tted
with the 7 pin blue connector can be plugged directly into the corresponding blue socket
adjacent to the power connector.

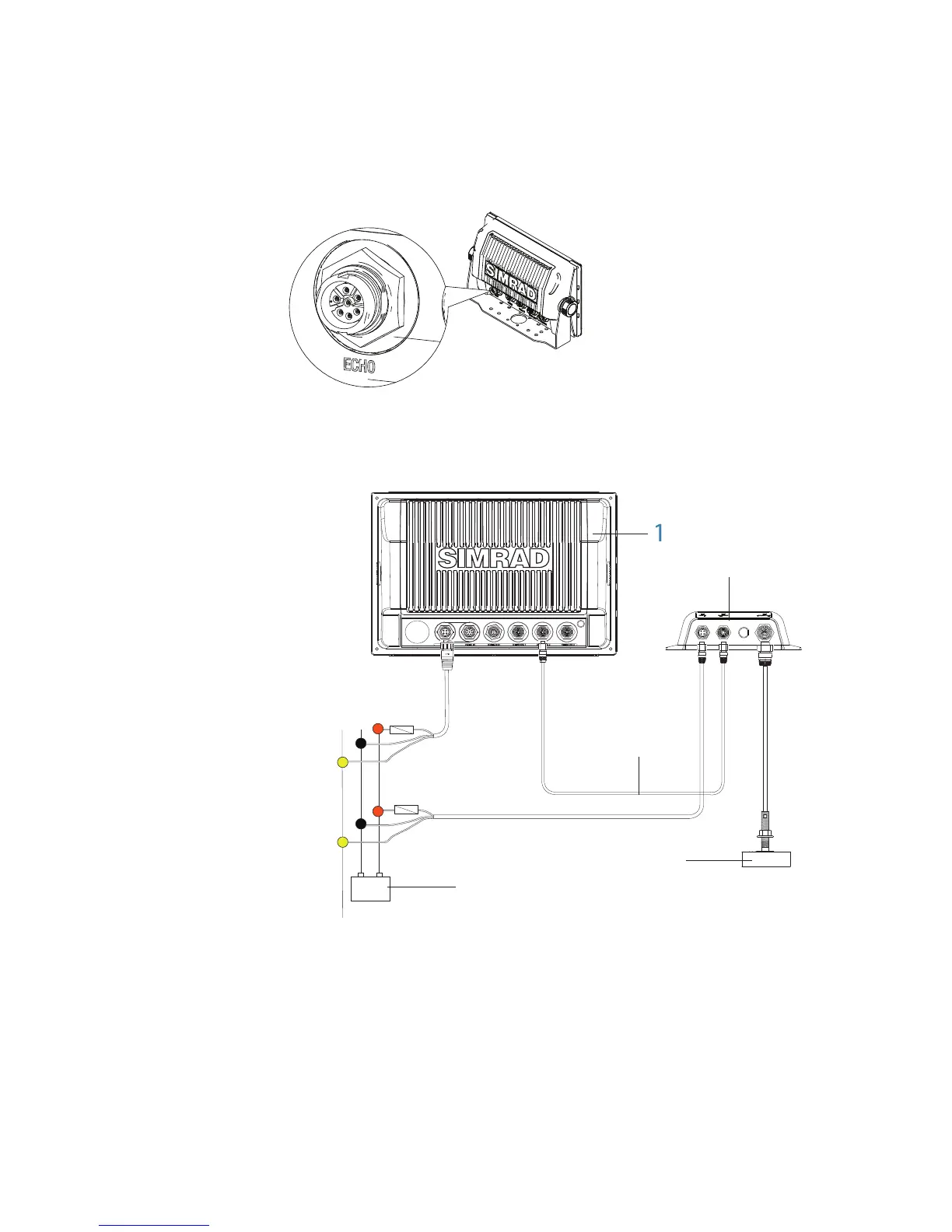

External echosounder
An optional Navico external sounder module (eg. BSM-1, BSM-2, StuctureScan HD) can be
added to the NSS7, NSS8 and NSS12 via the ethernet port on any of these devices.
+
_
1
3
4
5
2
1 NSS display
2 BSM-1 Broadband Echosounder module
3 Ethernet cable yellow 5 pin. See page 57 for more cable length options. Cable can be con-
nected directly to NSS or via a Network Expansion Port
4 12 or 24 V DC
5 Transducer
