Dimensional Drawings | NSS Installation Manual

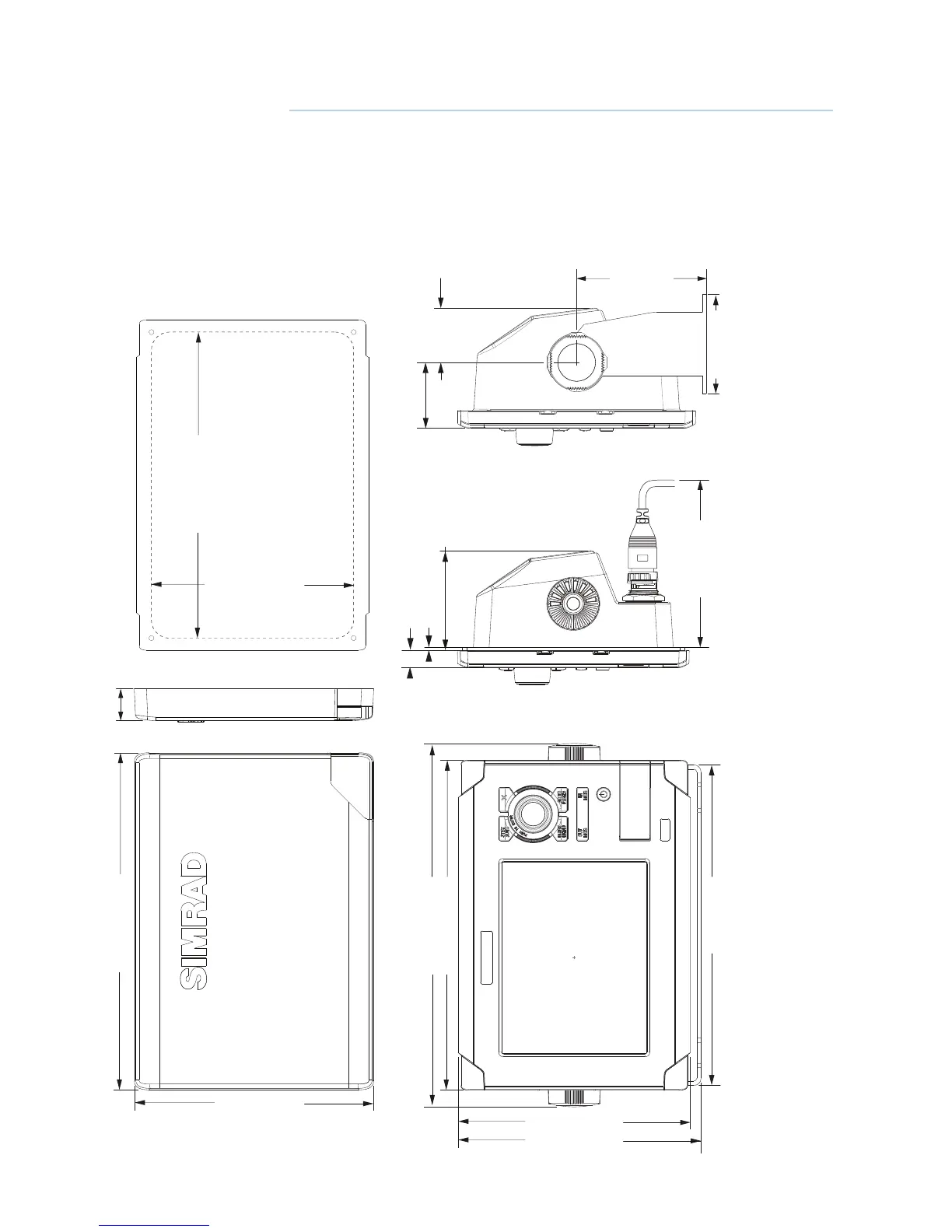

Dimensional Drawings
NSS7
16
229.5 mm (9.03") 260 mm (10.23")
161 mm (6.33")
168.5 mm (6.63")
166 mm (6.53")
140.5 mm (5.53")
234.5 mm (9.23")
212.5 mm (8.37")
SUN COVER
26.5 mm (1.04")
69.5 mm (2.73")
12 mm (0.47")
2.3 mm (0.09")
120 mm (4.72")
67 mm (2.63")
123 mm (8.77")
37 mm (1.45")
88 mm (3.46")
44.5 mm (1.75")

Simrad NSS7 Specifications

General

Screen Resolution	800 x 480 pixels
Chartplotter	Yes
Ethernet Ports	1
NMEA 2000	Yes
Screen Size	7 inches
Operating Frequency	50/200 kHz
