Connector Pinouts | NSS Installation Manual

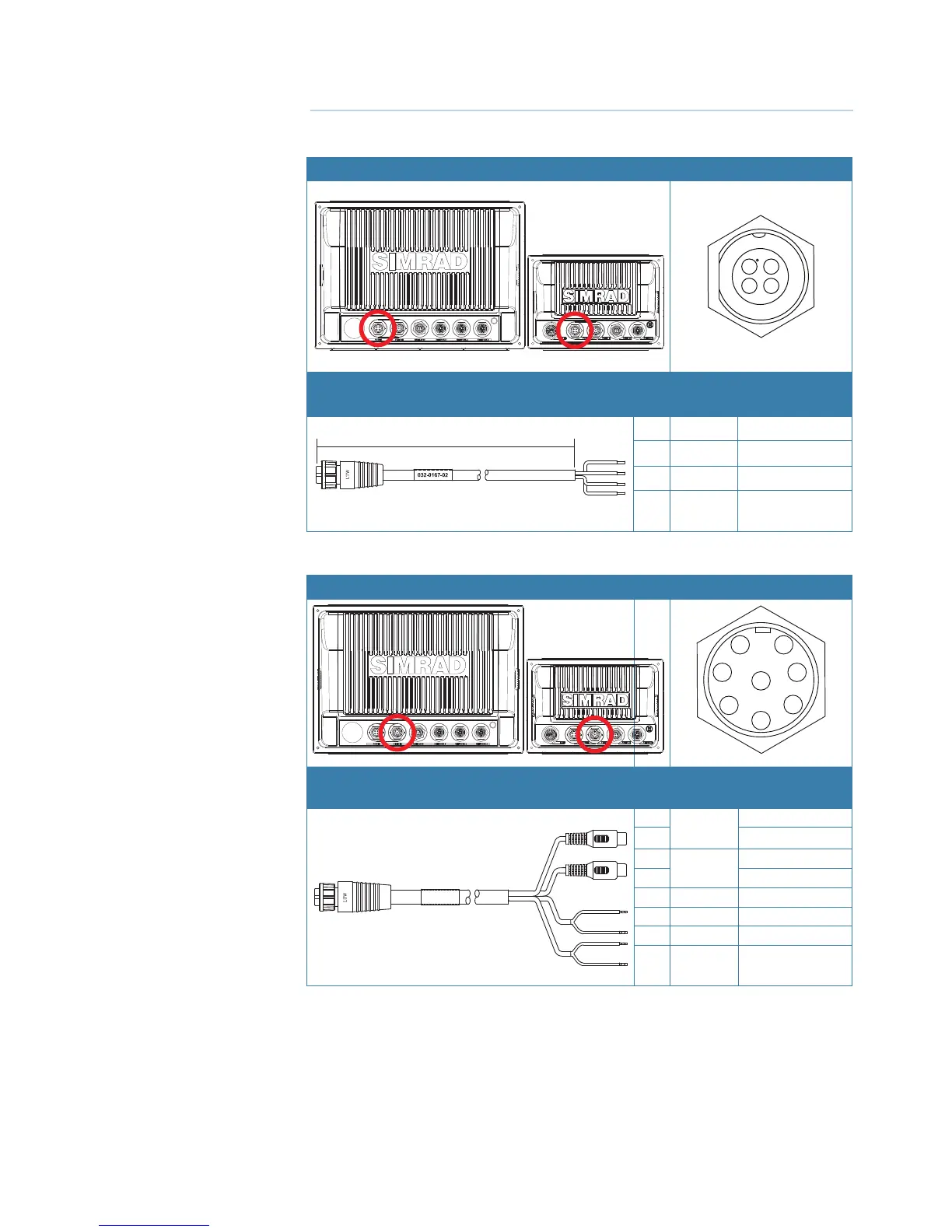

Connector Pinouts
Power
Power Connector
1
4
32
Power Cable: 000-00129-001 (included) Pin
Wire
Color Function
2 m (6.5 ft)
1 Black Battery
2 Blue External Alarm
3 Yellow Power Control
4 Red Battery (+)
12 - 24V DC
Video / Data
Video / Data Connector
1 7
6
5
4
3
2
8
Video Cable: 000-00129-001 (included) Pin
Wire
Colour Function
1 Red
(coax)
Video 1 Ground
2 Video 1 (+)
3 Green
(coax)
Video 2 Ground
4 Video 2 (+)
5 Blue RS422 TX -
6 Yellow RS422 TX +
7 Orange RS422 RX -
8 Green RS422 RX +
17
