Video In | NSS Installation Manual
Video In

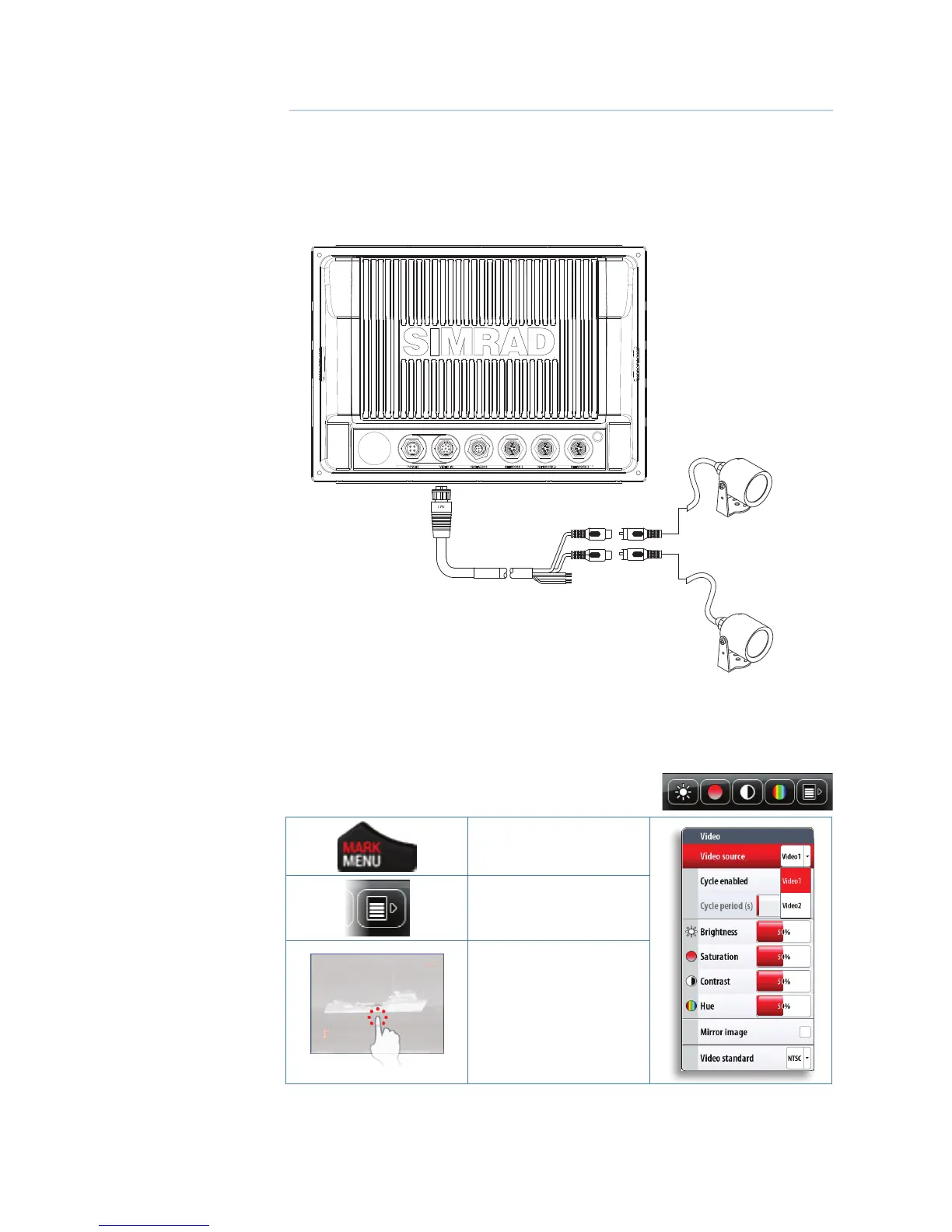

Connect up to two composite video cameras to each display unit using the optional Video /
Data cable. This connects to the VIDEO IN port on the rear of the display.
¼ Note: The video images will not be shared with other displays via the network. It is only pos-
sible to view video on the unit connected to the video source.
Connecting video sources
VIDEO 1
VIDEO IN/
NMEA 0183
RED
GREEN
¼ Note: Only connect NTSC and PAL video sources
Video In conguration
Tapping the video panel will bring up the video panel buttons.
Access the Video Menu by one of the following:
Press the MENU key
Tap the MENU icon in the
video panel buttons
Press and hold on the video
panel
Enable PAL or NTSC depending on the video ouput standard of the camera.
You can optimize the video display by adjusting the video image settings (brightness, satura-
tion, etc.). The settings are adjusted individually for each video source.
9
