NSS overview | NSS Installation Manual

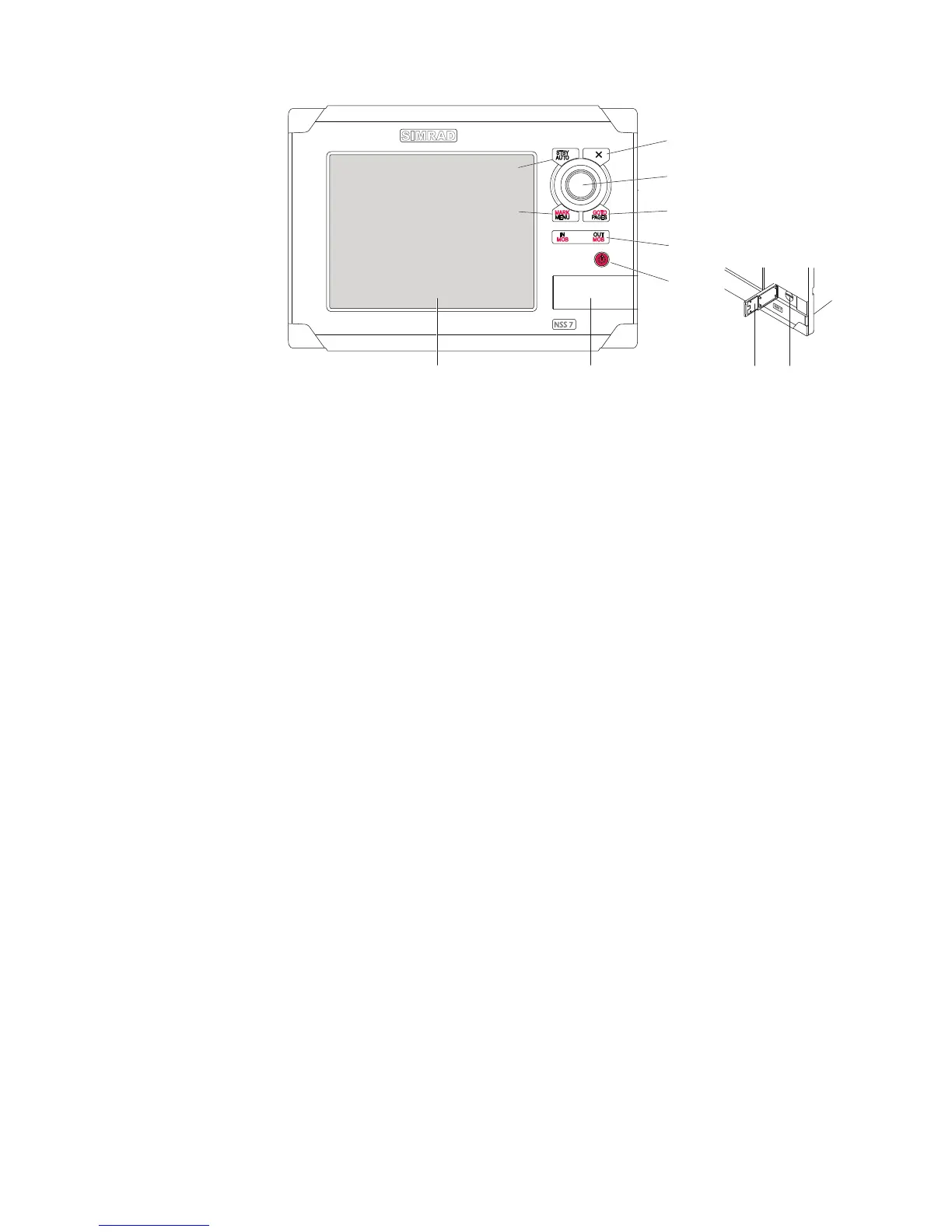

Front - Controls
MARK
MOB
GOTO
MENU PAGES
STBY
IN
MOB
OUT
AUTO
SIMRAD
NSS 7
P
U
S
H
T
O
E
N
T
E
R
1 2 2 3
4
5
6
7
8
9
10
1 Touchscreen
2 Card reader door
3 Micro-SD Card reader
Used for optional Navionics or InsightHD chart data, software updates, transfer of user data
and system backup.
4
STBY / AUTO key
Used for Autopilot operation.
5
MARK / MENU key
A short press displays the active panel’s menu. A long press places a waypoint at the vessel’s
position.
6
X key
Used to exit dialogs, to return to previous menu level and to remove the cursor from the
screen on chart, radar and echosounder panels.
7
Rotary knob
Used for zooming chart and for scrolling through menus. Press rotary knob to conrm selec-
tion.
8
GOTO / PAGES key
A short press displays the Pages overview panel (Home page). Repeated short presses toggles
between Pages overview, Tools and Settings panels. A long press displays the Go To menu.
9
IN / OUT / MOB key Zoom key
for chart, radar and echosounder panels. A simultaneous press on both key ends will position
a Man Over Board (MOB) mark at vessel’s position.
10
Power key
A long press turns the unit ON/OFF. A short press brings up the light options dialog. Repeated
short presses toggles between preset brightness levels.

Simrad NSS7 Specifications

General

Screen Resolution	800 x 480 pixels
Chartplotter	Yes
Ethernet Ports	1
NMEA 2000	Yes
Screen Size	7 inches
Operating Frequency	50/200 kHz
