Autopilot | NSS Installation Manual
Autopilot
The Simrad NSS includes complete autopilot integration. When an NSS is connected to a
compatible Simrad Autopilot Computer (AC12, AC42, and SG05), you will have complete
control, setup and integration with your autopilot. The NSS display can be used in conjunc-
tion with Simrad OP10, AP24, or AP28 Control units or the NSS can be used alone to conserve
dash space.

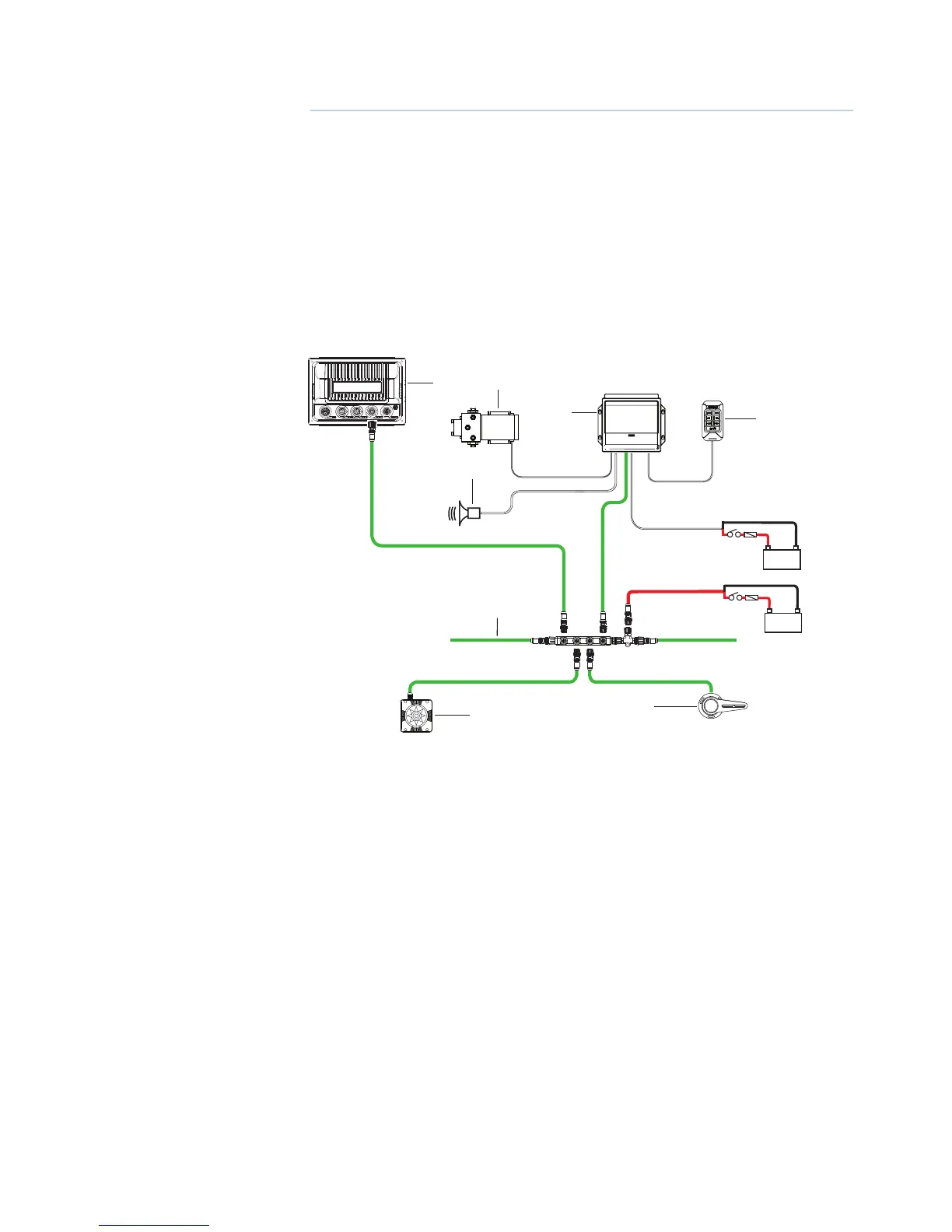

Wiring the autopilot system
Using the AC12 or AC42 autopilot computer
The AC12/AC42 is connected to the NSS system using the SimNet network.
For more information about how to install and wire the autopilot, refer to the separate
AC12N/AC42N Installation manual.
5 Amp Fuse
12 V DC
-
+
12-24 V DC
-
+
1
2
3
8
6
5
4
7
9
1 NSS Display
2 Pump / Drive (RPU160, RPU300, DD15, HDL2000x)
3 AC12N or AC42N Autopilot computer
4 OP10 Pilot Controller
5 DC Supply
6 NMEA 2000 Micro-C backbone with T-pieces
7 RC42N Rate Compass
8 RF25N Rudder Feedback
13
