View serial input
Used to confirm that the port setup is correct.
System Function ID (SFI)
A unique SFI must be assigned to each port that is to be part of the
LWE network.
If no SFI is entered (remaining with the default 0000 value), the
device will not be visible on the LWE network, and it will not share
any data.

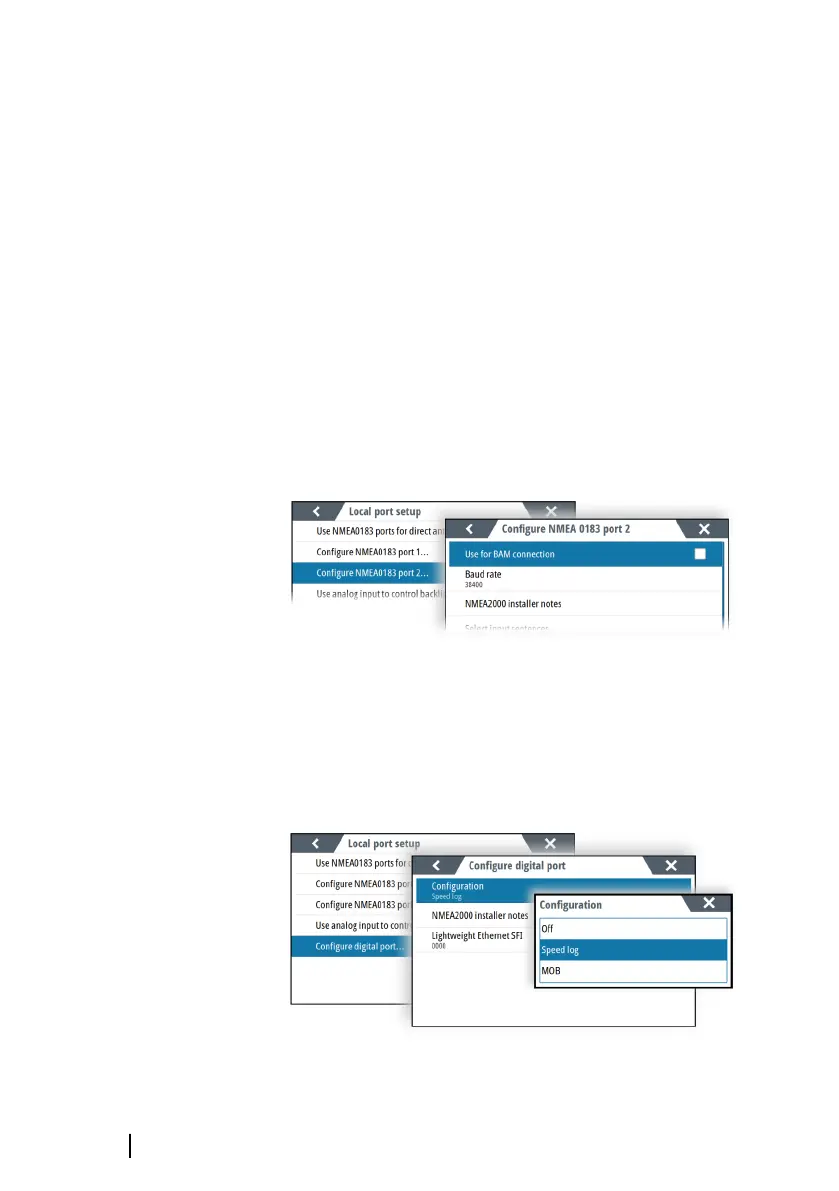

Use for BAM connection
This option is used to configure NMEA 0183 port 2 for a Bridge Alert
Management system (BAM).
Ú
Note: This option is not available if the antenna is directly
connected to the NMEA 0183 ports.
Use analog input to control backlight level
This option must be turned on if an external potentiometer is to be
used to control the backlight level.
Configure digital port
38
Software setup | P2005/P3007 Operator Manual
