Sirona S2 - Dentist Unit Keypad Functions; Center Keypad Functions

Sirona Dental Systems GmbH 2 Dentist Unit
41 63 189 D 3311
D 3311.201.01.10.02
9
IRKPMWL
Light ON / OFF
With instrument removed:
Instrument lighting
INSTR LIGHT
.
If all instruments are deposited:
Unit lamp
OPERATING LIGHT
If this key is pressed longer,
the light intensity setting dialog appears.
Automatic tumbler filling.
If pressed longer, the
CUP FILL TIMER
setting dialog appears.
Rinsing the cuspidor bowl.
If pressed longer, the
BOWL FLUSH
TIMER
dialog appears.

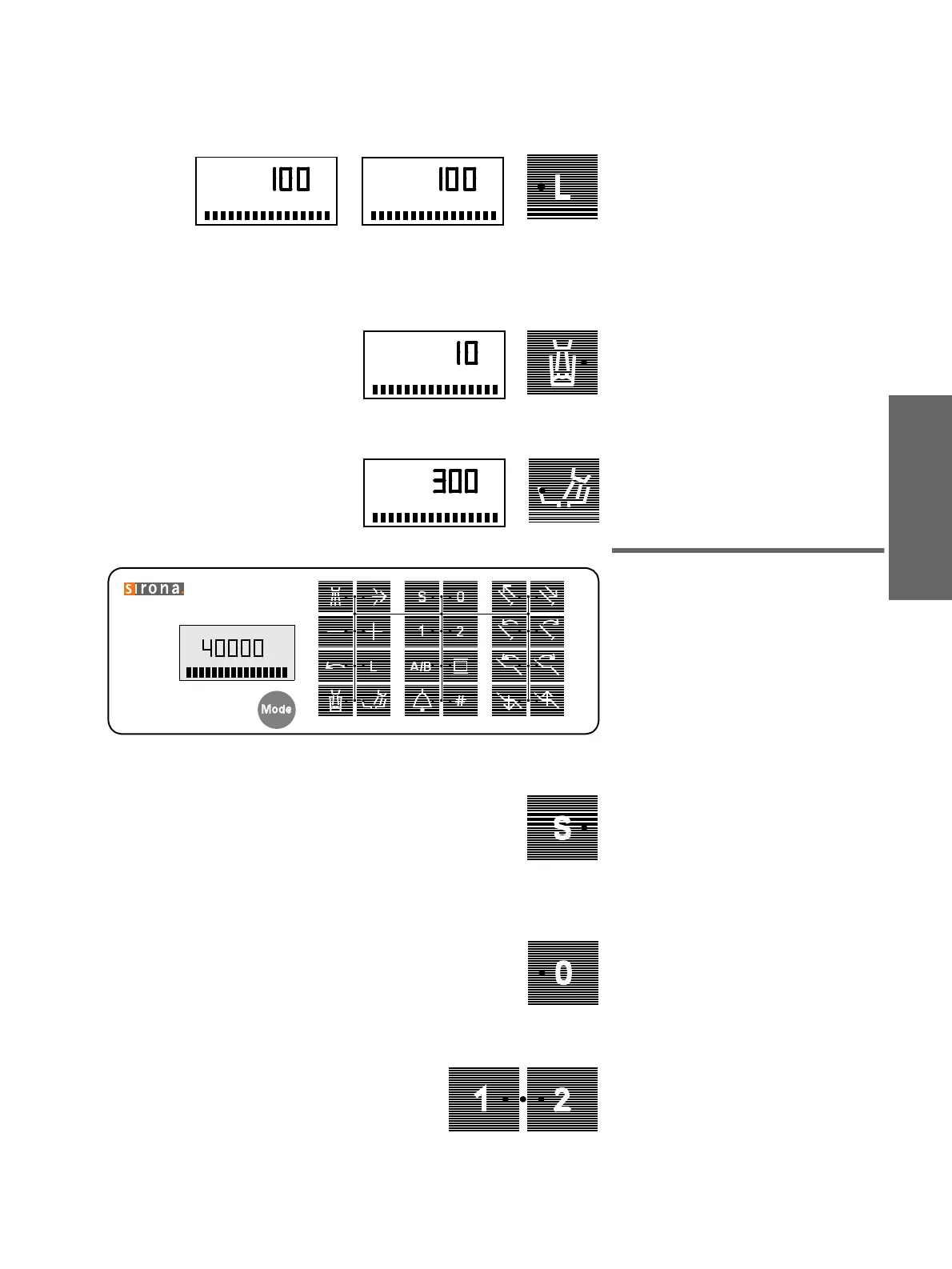

2.3 Function of Keys
(center keypad)
Control panel
Chair program S for mouth rinsing
position,
with memory function (freely assignable).
Chair program 0 for neutral position
(freely assignable).
Chair programs 1 and 2
(freely assignable).
NOTE: These four program keys are also
used for programming.
A
%
OPERATING – LIGHT
A
%
INSTR – LIGHT
A
CUP FILL TIMER
BOWL FLUSH TIMER
A
A
C2
AMALG
DESINF
RPM
