Unit lamp, Tumbler Filling, Cuspidor
Rinsing, Purge
11.1 Unit Lamp
Briefly actuating light key
L
switches the
unit lamp ON or OFF
(green LED lit: light ON).
This functions only if all instruments are
deposited in their hangers! (If an instrument
is removed, key L will switch on the
instrument light).
If the L key is activated longer than 3 sec.,
the
OPERATING LIGHT
intensity setting
dialog appears.
The light intensity can then be set from
20 to 100% with the
–
/
+
keys.
11.2 Tumbler Filling Function
Briefly actuating this key causes the tum-
bler to be filled with a programmed amount
of water.
Pressing the key again during water flow
switches the tumbler filling function off.
If this key is actuated longer than 3 sec., the
CUP FILL TIMER
setting dialog appears.
The filling time can be set from 2 to 10 sec.
with the
–
/
+
keys.
11.3 Cuspidor Rinsing
Function
Briefly actuating this key switches the rins-
ing function ON and causes the cuspidor to
be rinsed for a preset period of time.
If pressed during rinsing, this key switches
the rinsing function off.
If this key is actuated longer than 3 sec-
onds, the
BOWL FLUSH TIMER
setting
dialog appears. Using this dialog, the rins-
ing (flushing) time can be set from 20 to 420
sec. with the
–
/
+
keys.

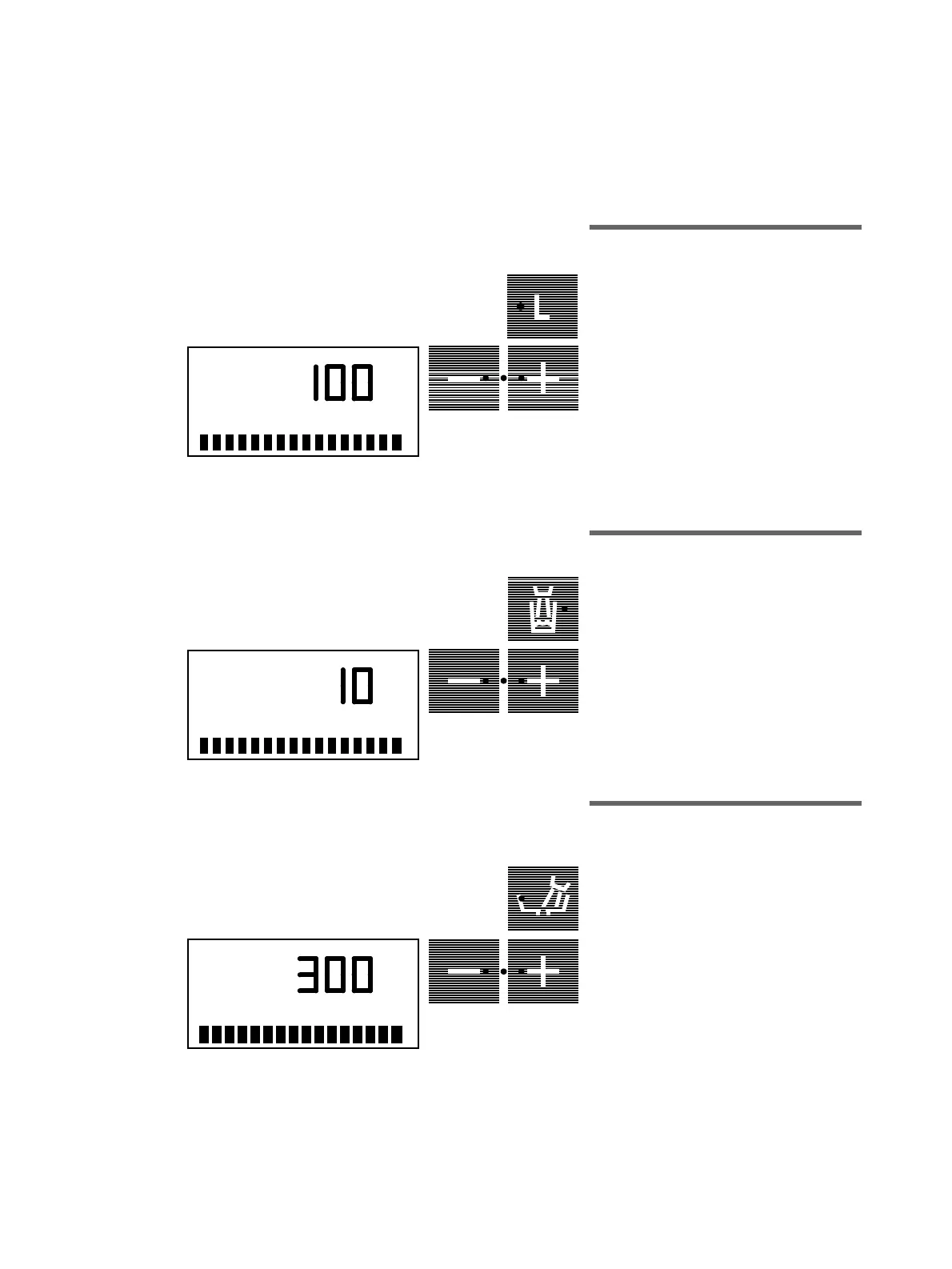

A
%
OPERATING LIGHT
A
CUP FILL TIMER
BOWL FLUSH TIMER
A
