DK32S User Manual (V1.3)
- 68 - 2022 SIYI Tech All Right Reserved

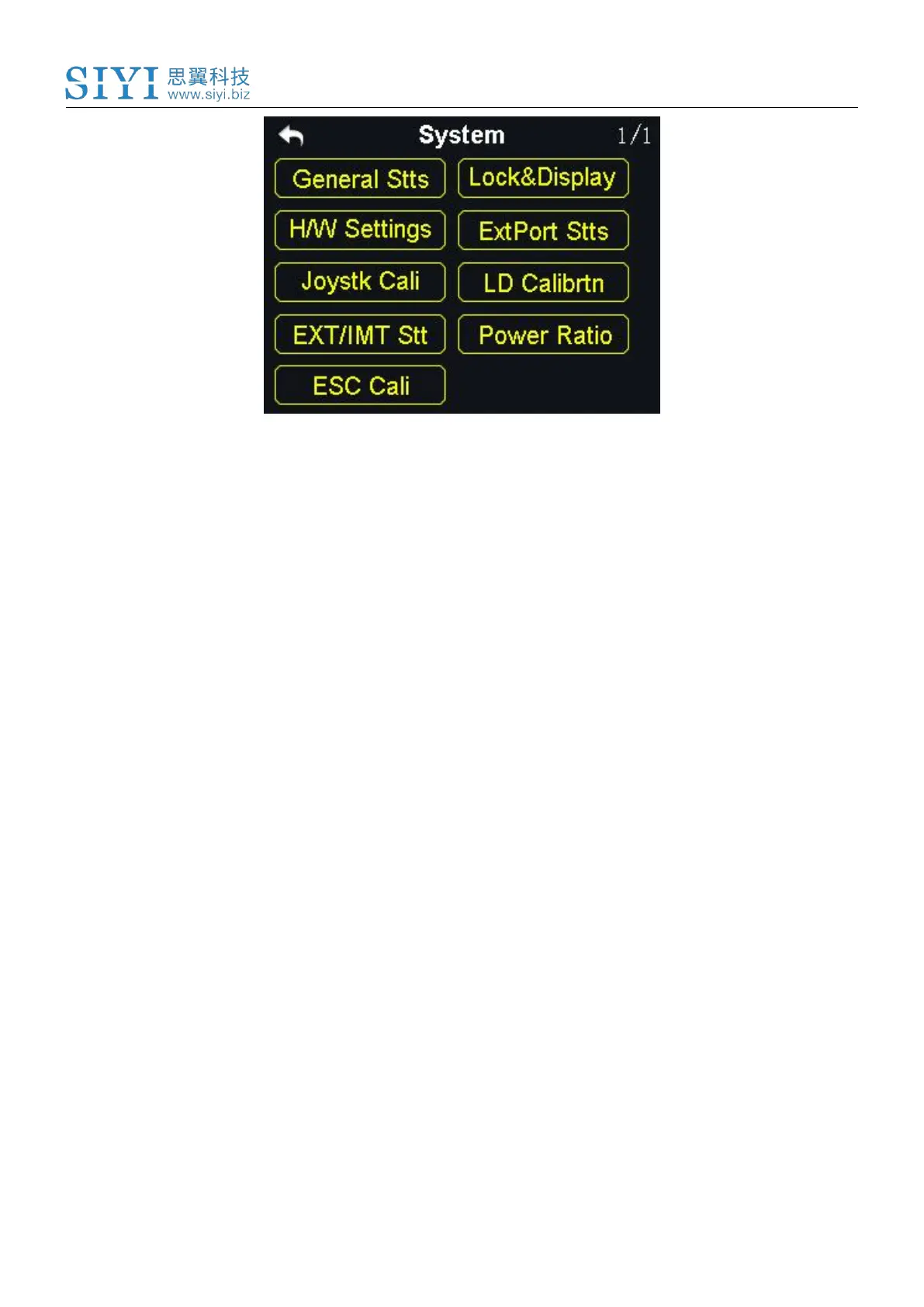

General Stts (General Settings): Set transmitter’s basic functions
Lock&Display (Screen Lock & Display): Turn on / off the display of the transmitter
touch screen and adjust brightness
H/W Settings (Hardware Settings): Change the hardware definition of several
transmitter channels through software settings
ExtPort Stts (Extending Ports Settings): Set the definition of the transmitter’s
extending ports
Joystk Cali (Joystick Calibrating): Calibrate the joysticks
LD Calibrtn (LD Calibrating): Calibrate the left dial (LD)
EXT/IMT Stt (Export/Import Setting Data): Export the transmitter settings or model
settings
Power Ratio: Adjust the power ratio
ESC Cali: Calibrate ESC through PWM ports on the sky station
