6.5 Joystick Calibrating
The Joystick calibrating function help users calibrate the joysticks’ middle position.
Regular calibration can maintain the control accuracy of the joysticks.
No calibration is required if it was the thumb-slide joysticks. The self-centering
joysticks require calibrating when they fail to reach the maximum / minimum
positions or when they stay out of the middle position (channel value is not 0).
Steps

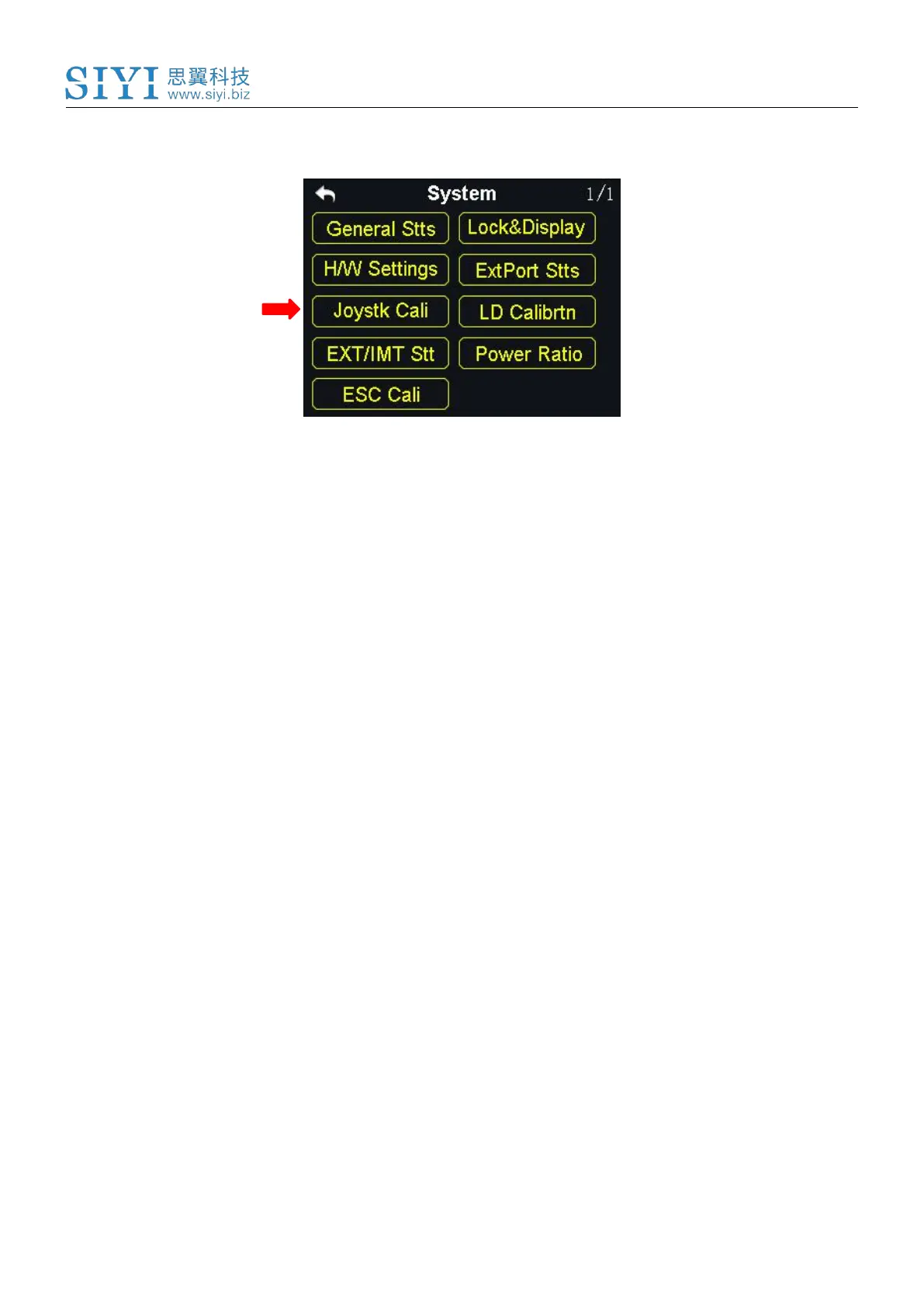

1. In the system settings menu, tap on “Joystick Calibrating”, in the screen it
shows the calibrating menu of the joystick;
2. The cross coordinate system displays the real-time position of the joysticks;
3. Tap on “Start”, in the screen it pops up “Confirm if both the joysticks are in the
middle position”;
